Model | HY-U500R | |

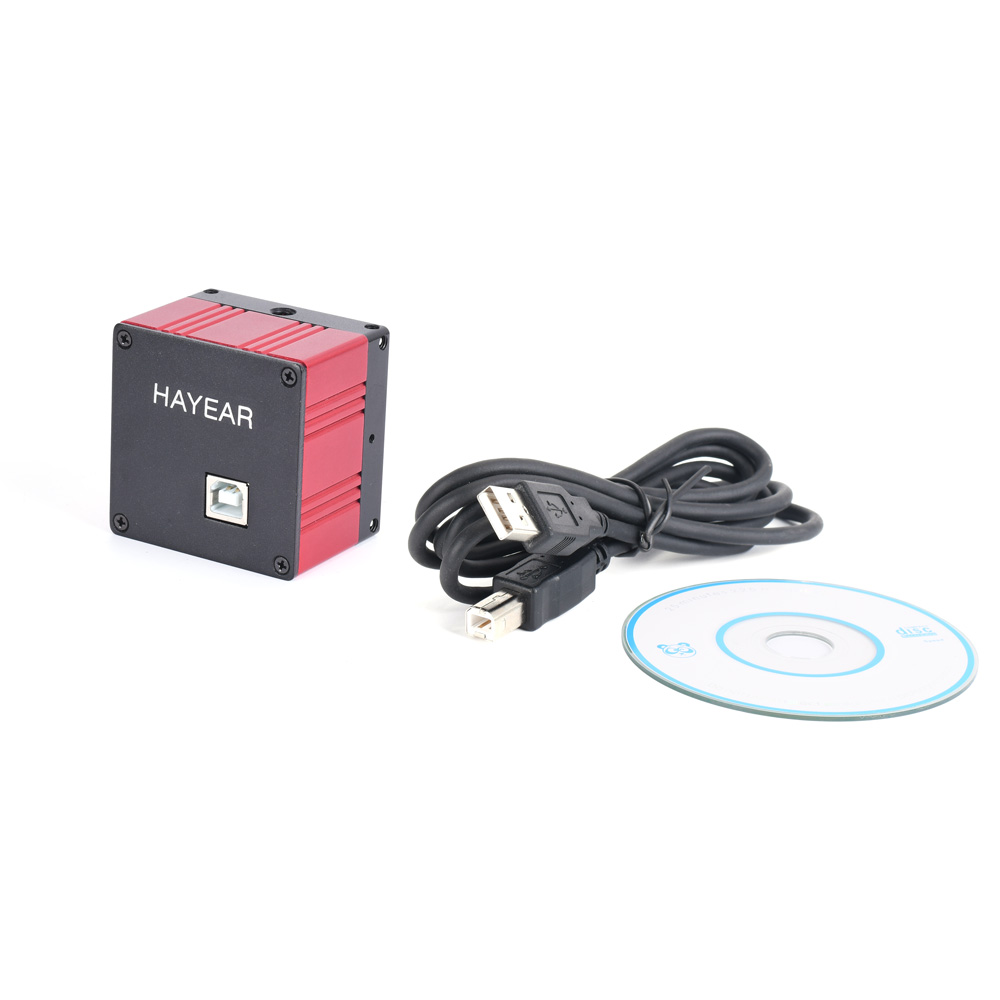

Name | 5MP USB2.0 Color UVC Microscope Camera | |
Image sensor | 1/2.5" Color CMOS Sensor | |
Pixel size | 2.20μm(H)×2.20μm(V) | |
Spectral response | 400nm～1000nm | |
Shutter Type | Rolling shutter | |
Frame rate | @30FPS | |
Output video format | MJPEG / YUV2（YUYV） | |
Video recording | 2592x1944 @ 30fps; 2084x1536 @ 30fps 1920x1080 @ 30fps; 1600x1200 @ 30fps 1280x720 @ 30fps; 800x600 @ 30fps 640x480 @ 30fps; 320x240 @ 30fps | 2592x1944 @ 2fps; 2084x1536 @ 2fps 1920x1080 @ 5fps; 1600x1200 @ 5fps 1280x720 @ 10fps; 800x600 @ 20fps 640x480 @ 30fps; 320x240 @ 30fps |
Dynamic range | 74 dB (Linear) 85 dB (HDR) | |
Sensitivity | 18.8 ke-/Lux*sec | |
Filter | Standard 650nm IR cut-off filter | |
Depth of pixel bit | 10bit | |
SNR | 39dB | |
Exposure time range (ms) | 0.02~155.5 ms | |
Working temperature range | -20℃～65℃ | |
Storage temperature range | -30℃～60℃ | |
Support UVC protocol | USB Video Class（UVC） | |
Exposure control | Auto/Manual | |
Frame Cache | 32M Bytes | |
Operation system | WIN XP, WIN 7/8/10/11, 32/64 bit system | |
Driver | Directshow component, Halcon Specialized component, TWAIN component | |
