Model | HY-5100 |
Sensor | SONY 24MP CMOS Sensor |
Video Output | 1080P FHD(HDMI Output) |
Sensor Size | 1/2.9 inch |
Video Output Interface | HDMI & USB（高清接口） |
Video Output Ratio | Support 16:9，4:3 ratio |
Pixel Size | 2.85 × 2.85μm |
Frame Rate | 30@FPS(HDMI); 30@FPS(USB) |
Color | R/G/B Support Manual Adjustment |
Crosshair | 5 horizontal,5 vertical, Color/Size Adjustable |
Digital Zoom | 8X Digital Zoom |
USB Output | 1920x1080P @30FPS; 1280x720P @30FPS |
Sensitive | Strong (Can be used without light source) |
Interface for Lens | Standard C/CS Interface |
Resolution | 1920x1080@30FPS; 720P 60@FPS; |
Dynamic Range | 60dB |
PC Measurement | Support |
Working Voltage | 5V/1000mA (Standard Type-C interface) |
Spectral response (wavelength) | 400nm~1000nm (Strong) |
White Balance | Support Auto/Manual (HDMI) |
SNR | 45dB |
Mirror | Support Left & Right/Up & Down |
Black & White Mode | Support |
Storage | TF Card, Maximum support 128GB |
Language Setting | Chinese、English、Japanese、French、German、Russian、Italian、Korean、Turkish and other languages |
Working Temperature | -40°C~65°C |

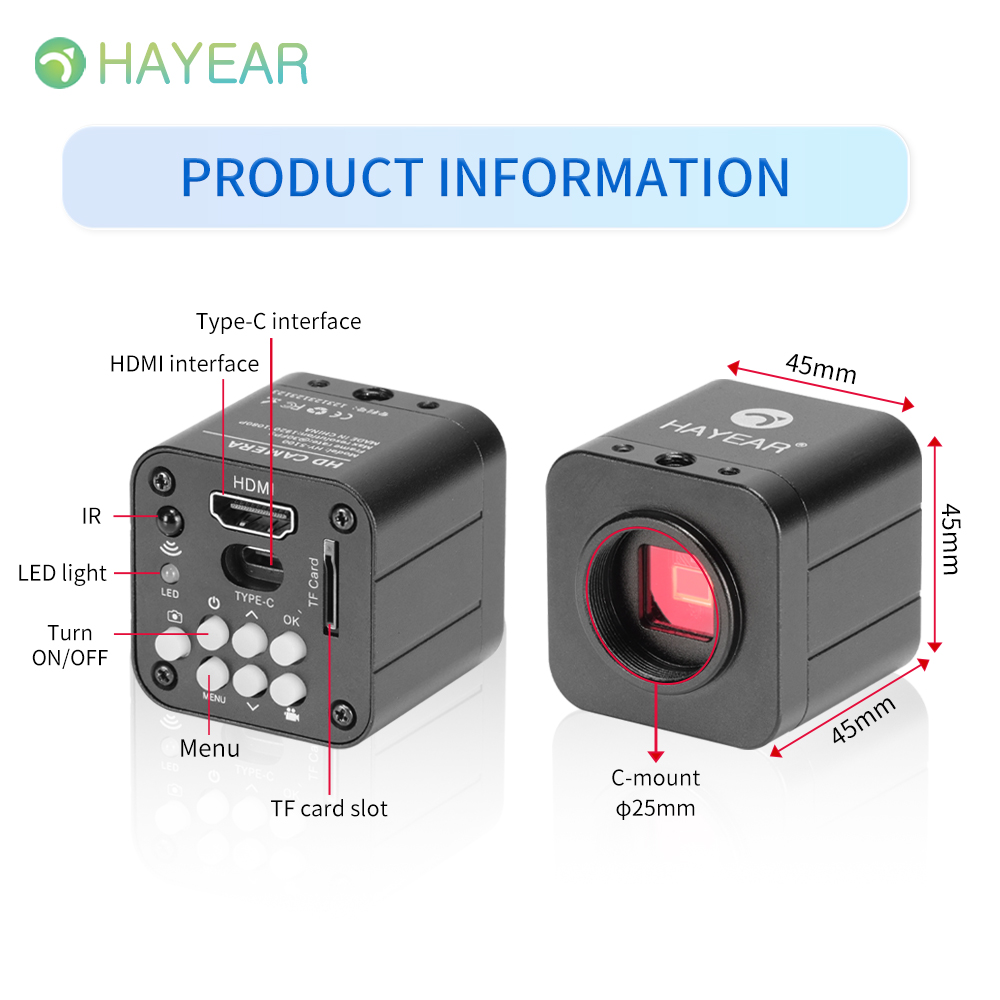

Camera Size | |

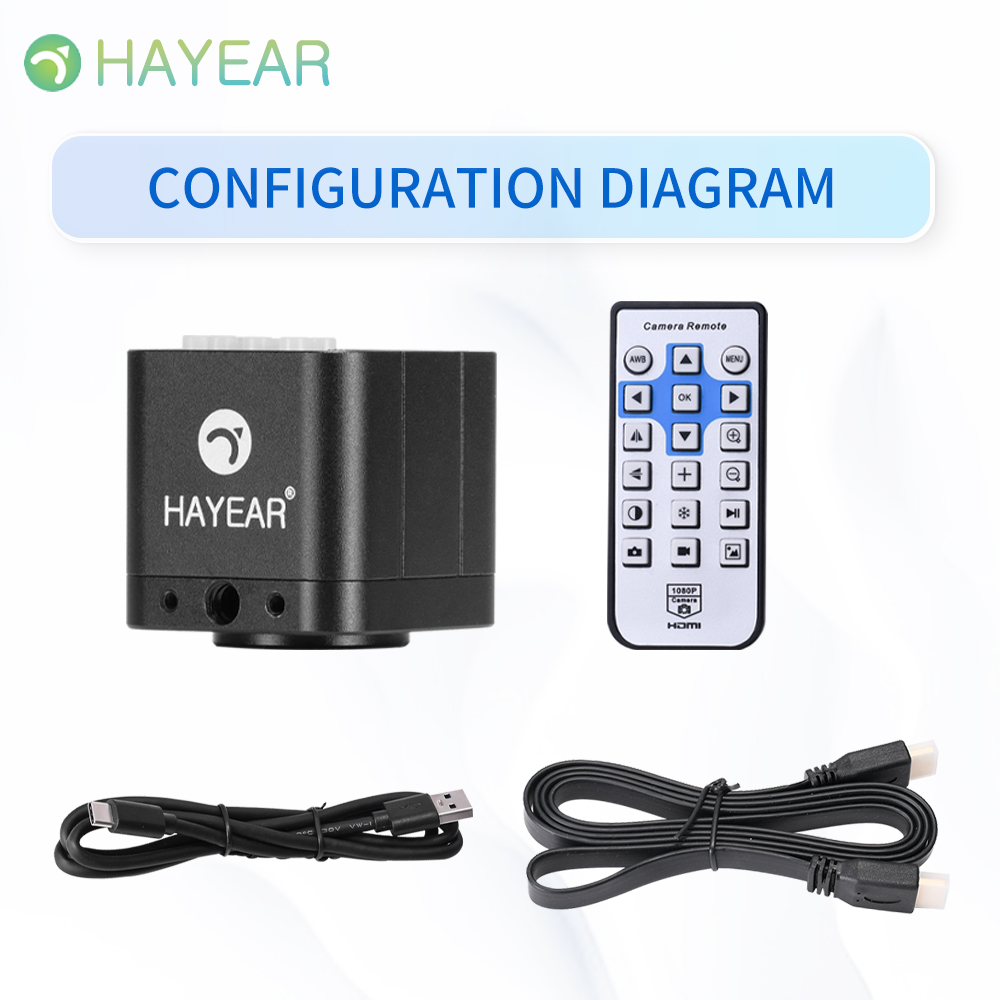

Package |
