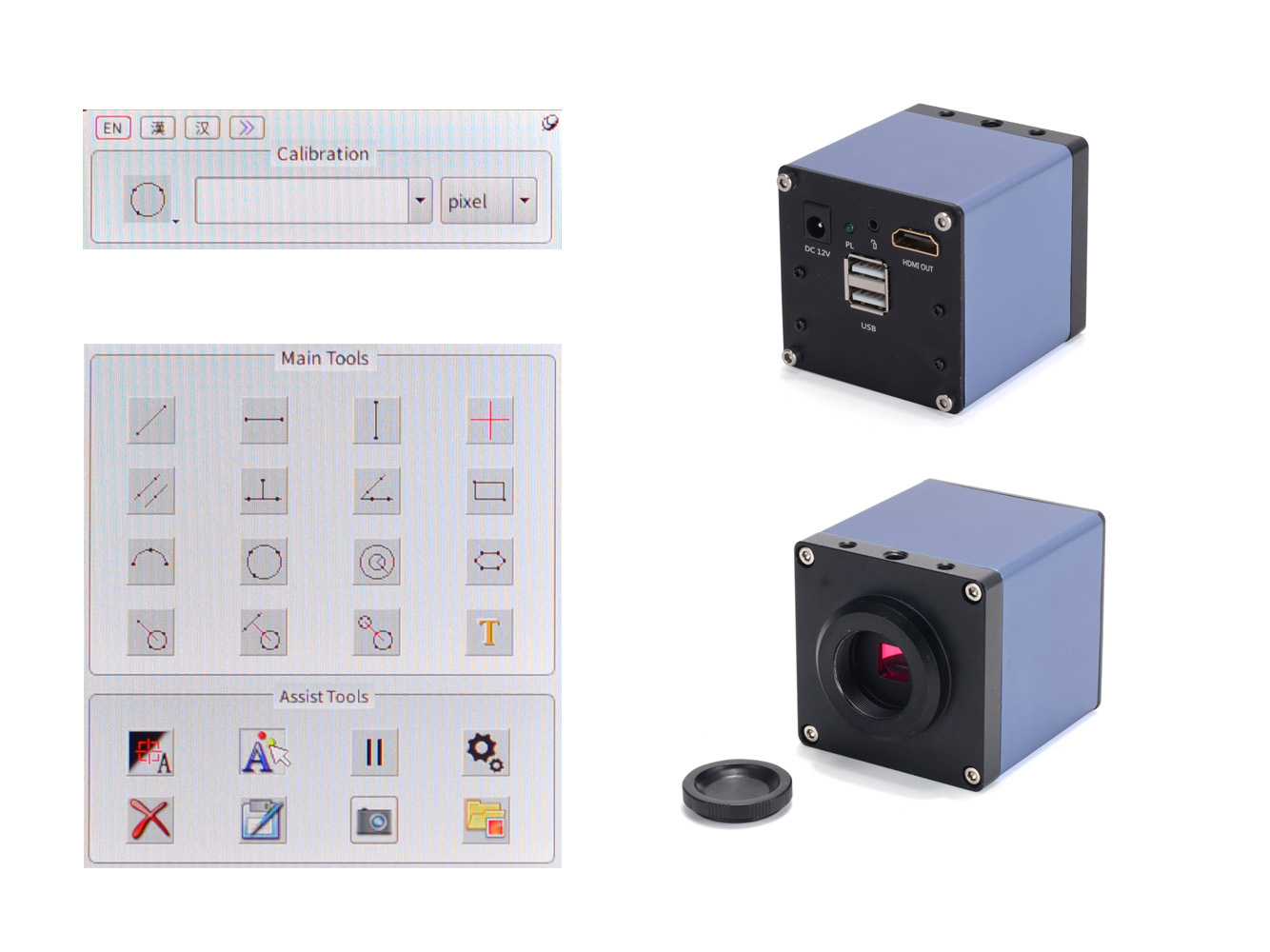

Measuring camera HY-2000-M Instruction

2019-11-05 334
Mode :
Version :
V1.1
HY-2000-M使用说明

HY-2000-M

Chip structure: FPGA+ARM
operation system: Android 5.20
CPU structure: Dual-core Cortex-A9
CPU Frequency: 1Ghz
Pixel size: 1/2”
Solution: 1920×1080
Frame rate: 60fps

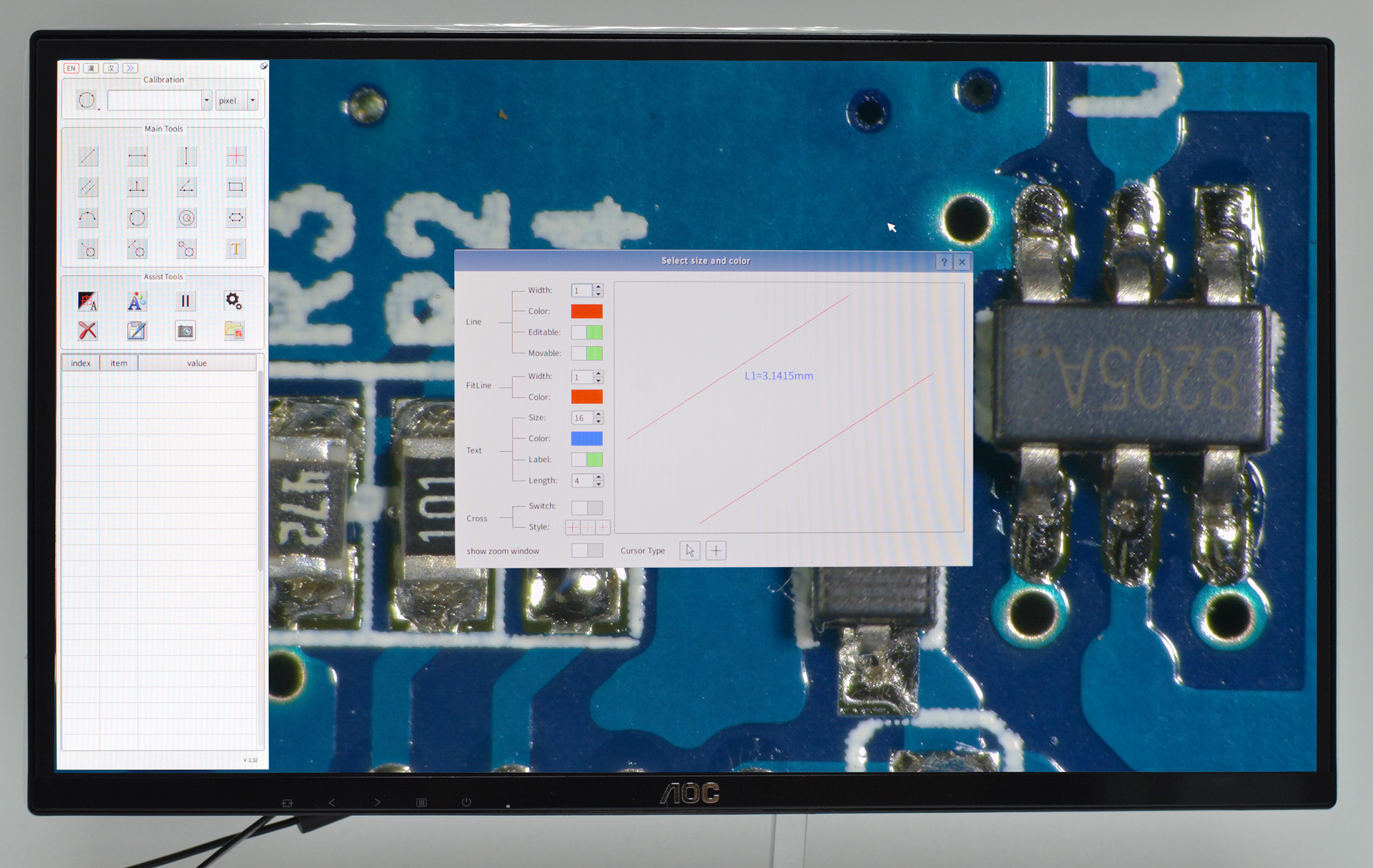

Measurement features: point to point, three-point circle, center distance, concentric circle, point to circle, line to circle, parallel line, rectangle, angle, radian, polygon
Data preservation: Save measurement result images or excel data.
Interface: 2 x USB interface, can be connected to U disk, wireless mouse and keyboard.
