7X-45X Trinocular Microscope Inspection Zoom Stereo 14MP HDMI USB Calibrate Camera+144 LED Ring Light+8 inch HD HDMI LCD Monitor

534 Reviews

Model : XTL-2TB


SKU: 1801174141



US $280.00

QTY:
- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time

This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.


Stereo Feature:


An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light

7x-45x super wide zoom magnification power

Bright cool light 144-LED illumination system

High resolution with great flatness and contrast, giving sharp and clear images

Binocular head with 45 degree inclined 360 degree swiveling eye tubes

Sharp stereo erect images with a wide field of view

Crystal clear original true color microscope images

Dual eye tubes with adjustable diopters

Large working distance

Sturdy all-metal table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements

Precise ground glass lenses

Full metal chrome-plated mechanical components

Adjustable interpupillary distance

Rubber eye-guards included


Specification:


Head: 360 degree rotatable 45 degree inclined binocular

Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM

Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses

Working Distance: 4" (100mm)

Diopter Adjustment: +/- 5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Round Plate: 3-3/4" (95mm) in diameter

Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)

Illumination: 144-LED Ring Light

Power Input: 110-240V, 50-60HZ, Automatic Switching

Accessories: Paired eye-caps

Weight: 5.5kg


Microscope Camera:


Model: Camera with HDMI USB2.0 two output

Image format: JPG

Image resolution: 4320*3240 (for TF card) 1920 *1080 @ 60FPS(for TF card)

Video format: MOV(for TF card)

Video recorder: 1920 *1080 @ 60fps (for TF Card)

USB Video resolution: 1920 *1080 @ 30FPS

White Balance: Auto

Morror: Left/right,Up/Down

Freeze: Support

OSD: English/Chinese

Effective pixel:14 megapixel

Pixel size:1.43x1.43um

Definition:FULL HD

Housing:metal

Lens:CS for test, custom provide

White balance:Auto/manual

Video format: AVI

Encode: H.264 (High Profile)

Digital magnification:5 times digital zoom

Brightness control:Auto/manual

Color:R/G/B adjustable

Freeze:Support

OSD:Support

Film and record:Support

Cross cursor:Support multi-color, size adjustable

Transverse and vertical line:

Support multi-color, 5 pcs of transverse lines/vertical lines, movable

different color,5 horizontal line , 5 vertical line,any positions

SNR:Support

TF card interface:Max 128G

HDMI interface:Standard HDMI output (Type A)

Lens:C

OSD: English/Chinese/French/Spanish/Portuguese

USB interface:Standard usb2.0 interface (Type B)


8" HDMI TFT LCD Color Monitor:


8 inch (1024 x 768) high resolution TFT LCD monitor

Clear image and colorful display

Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state

Multi video input supported (RCA, VGA, BNC)

Support 15-pin VGA input , connect with PC (1024*768)

Suitable for CCTV monitor, PC monitor or indoor use

Built-in high quality speakers

Auto standy function with timer switch and no signal

Screen Size : 8"

Screen Resolution : 1024 x 768 pixels

Aspect Ratio : 4 : 3

Screen Brightness : 400 cd/m2

Screen Contrast : 400 : 1

Viewing Angle : 160° (H) x 160° (V)

Response Time : <= 12ms

Video Input : HDMI, AV-in, VGA, BNC

Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA

Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm


Package including:

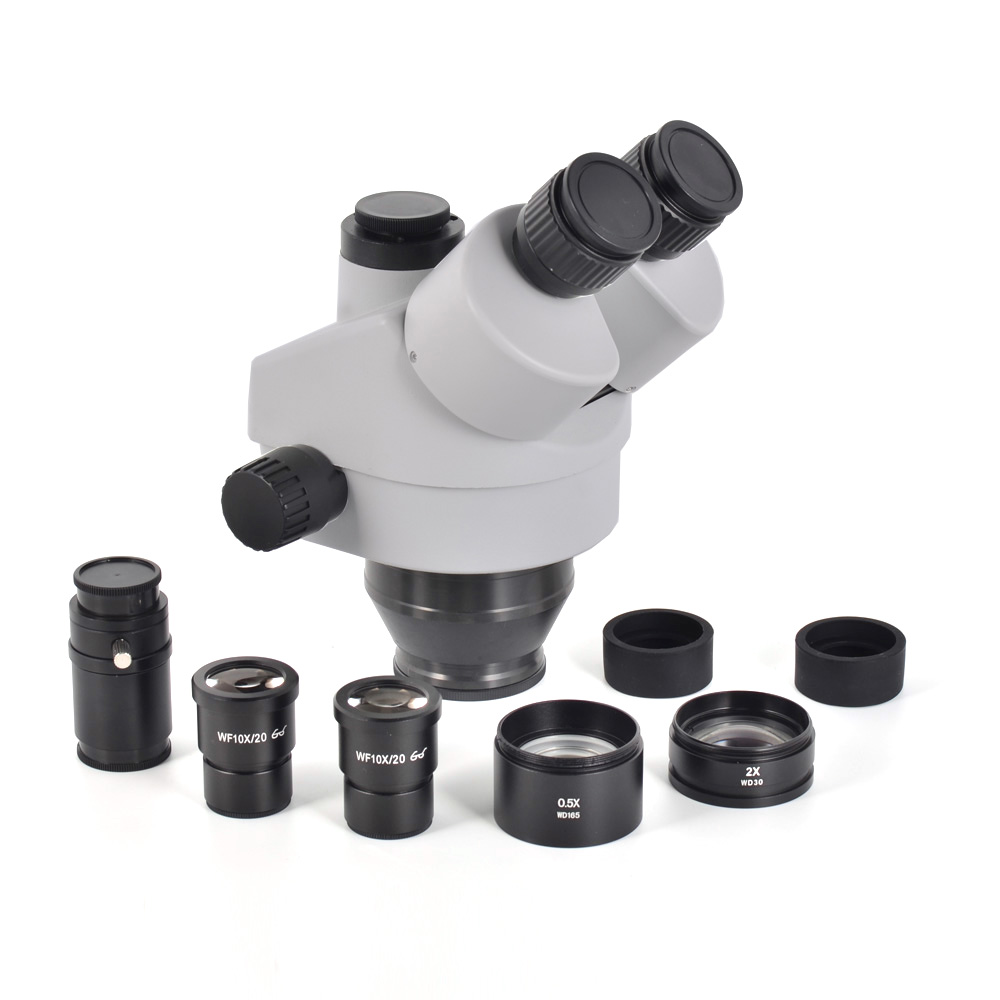

1 x Binocular Stereo Zoom Head

1 x Pair of Super Widefield 10X Eyepieces

1 x Microscope Camera with power supply

1 x 144-LED Ring Light with power supply ps: the power supply of camera and ring light can not mix used.

1 x Pillar Table Stand

1 x Focusing Rack

1 x C-mount Adapter

1 x Pair of Eye-Guards

1 x Pair of Clips

1 x Dust Cover

1 x 8'' LCD Monitor
