HAYEAR Full Set 21MP 2K 1080P 60FPS Full HD HDMI USB C-mount Electronic Industry Microscope Camera Kit for PCB Repair Portable

378 Reviews

Model : HY-1138S

SKU: 1903182340


US $162.00

- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time


1:PC Support : Windows XP/7/8/10 system

2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.

3:When use USB connection, please make sure no TF card in the camera.


Camera with HDMI USB2.0 two output

Image resolution: 5200*3900 (for TF card) 1920*1080 @ 60FPS(for TF card)

HDMI Video resolution: 2K @ 30FPS ,1920*1080 @ 60FPS; USB Video resolution: 1920*1080 @ 30FPS

table stand is all alloy aluminum, solid base plate, very high quality and easy to carry


Image sensor:21 megapixel Panasonic CMOS sensor 1/2.33 inch

Effective pixel:21 megapixel

Pixel size:1.335μm × 1.335μm

Frame rate:60fps

Definition: FULL HD

Housing: metal

Lens :C/CS

Video format: MP4

Digital Zoom: Support

Brightness control: Auto/manual

Color: R/G/B adjustable

Film and record: Support

Cross cursor: Support multi-color, size adjustable

Transverse and vertical line:Support multi-color, 5 pcs of transverse lines/vertical lines, movable

TF card interface: Max 128G

HDMI interface: Standard HDMI output (Type A)

USB interface: Standard usb2.0 interface (Type B)

Input Voltage: DC 12V

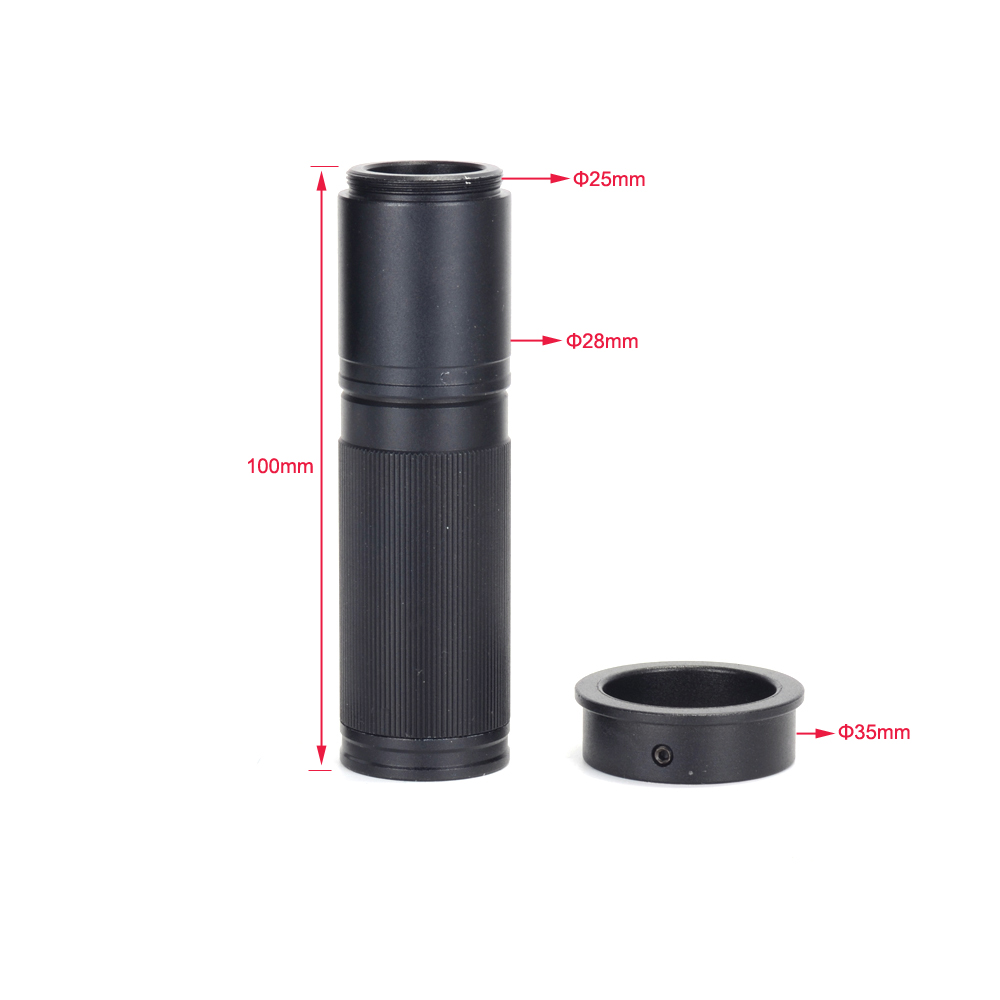

zoom c-mount lens

magnification: 0.11X-2X ( about 5x-150x on the 21 inch display )

visual field: 3.1mm-66mm

working distance: 55mm—68000mm

Package Including:

1 x Microscope Camera with power supply

1 x USB line

1 x Software DISC

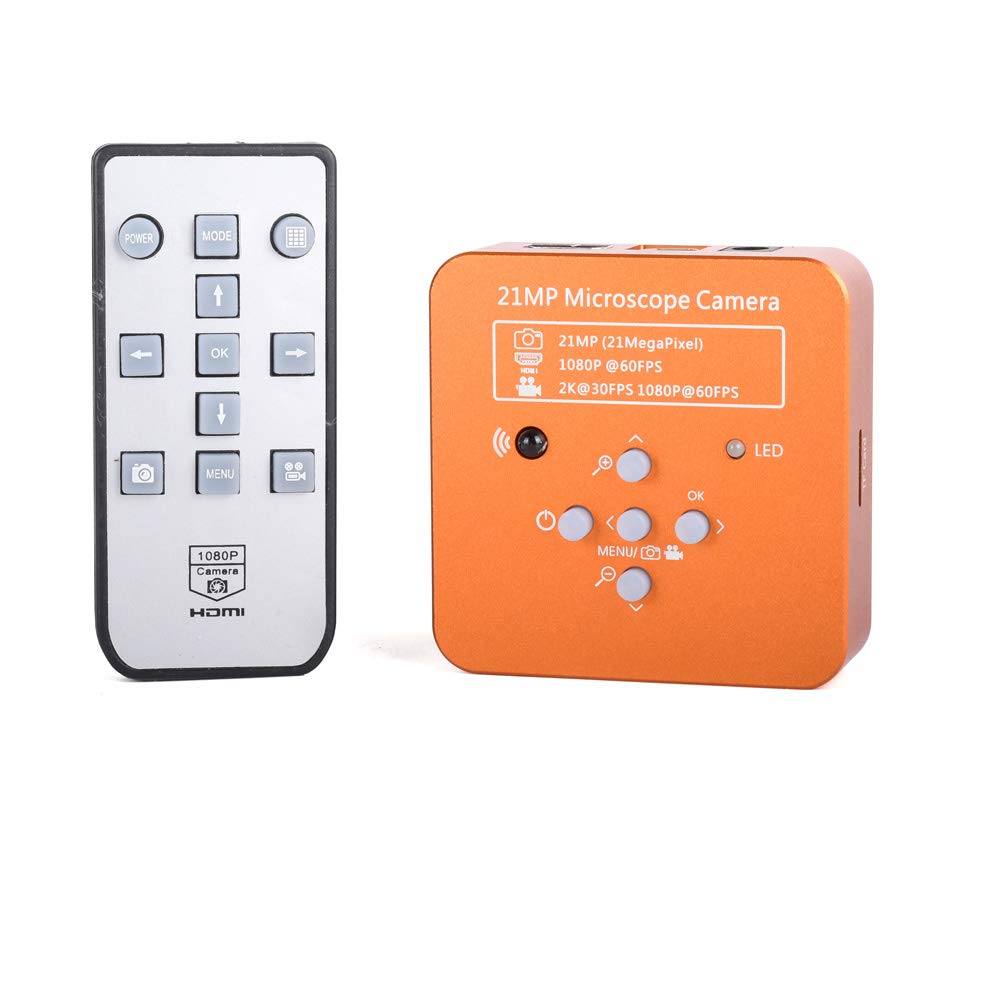

1 x Remote Control

1 x C-mount Lens

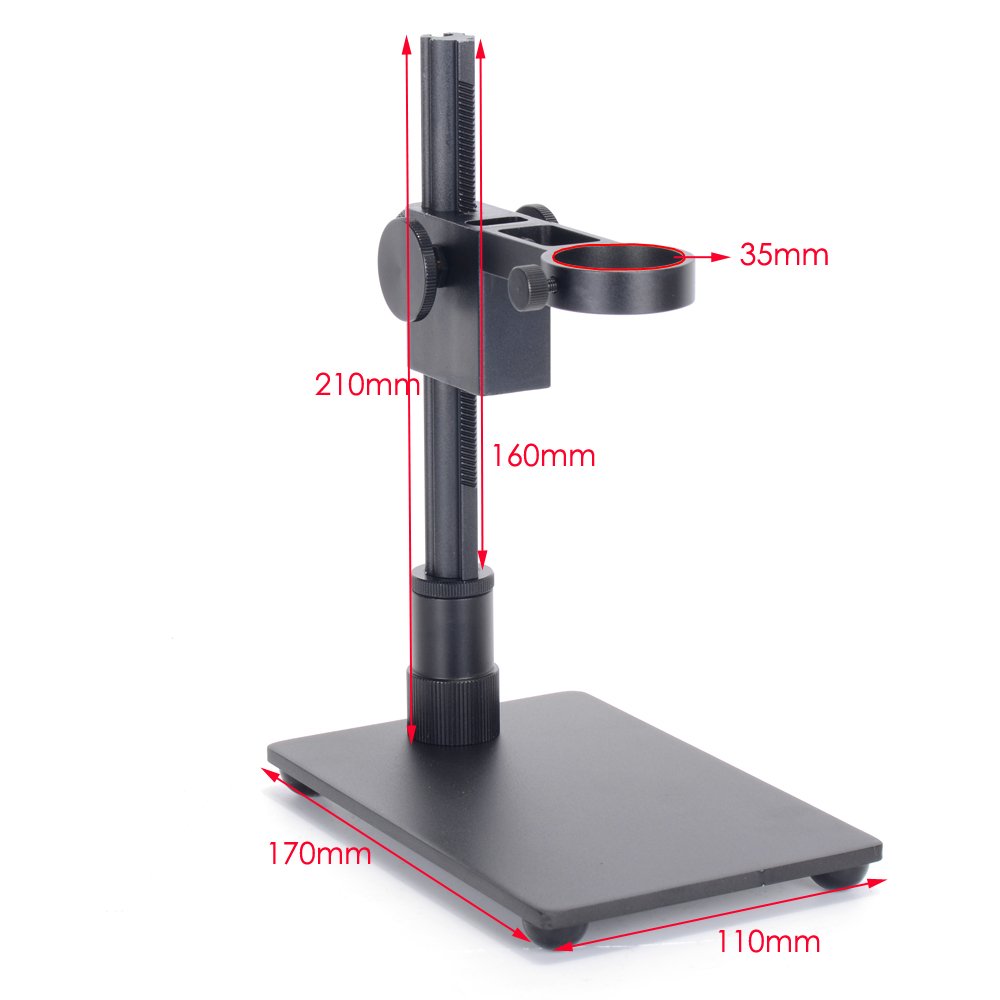

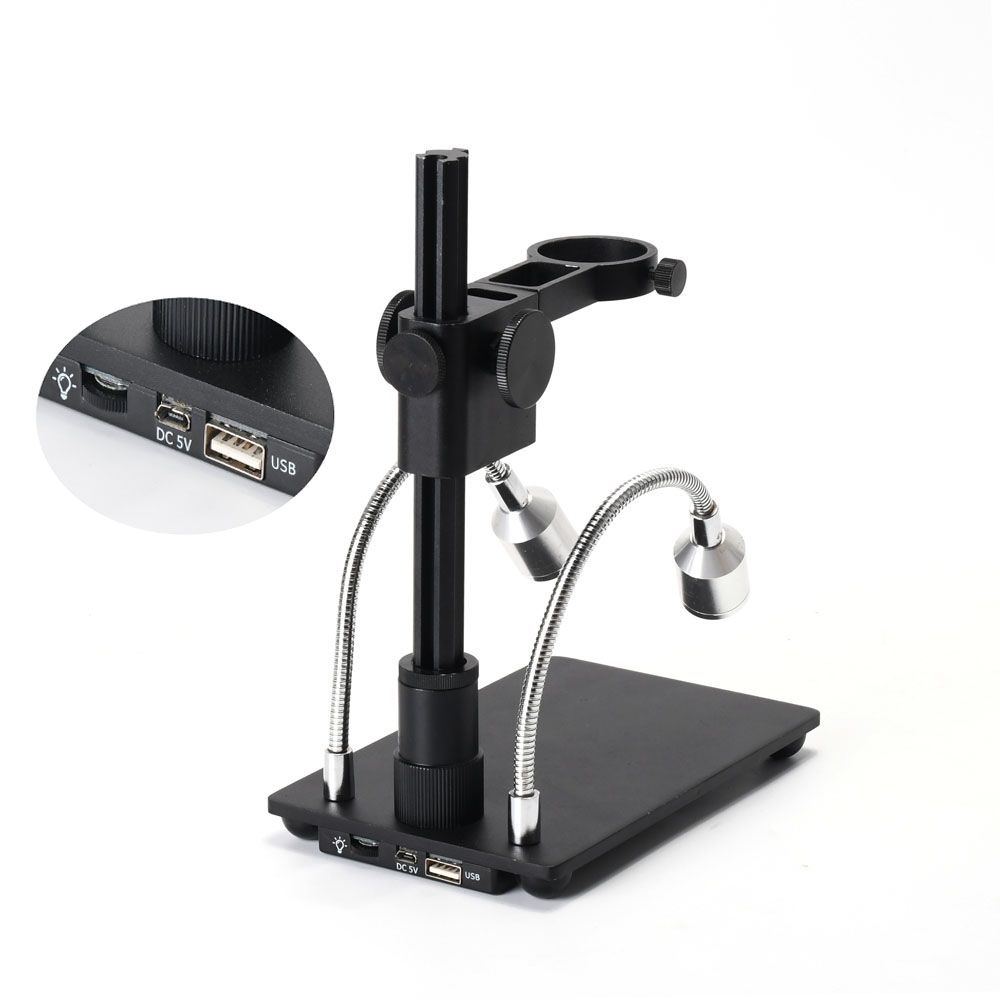

1 x Camera Stand with LED Lights
