12MP USB camera set for pc using long working distance lens

406 Reviews

Model : HY-1200S


SKU: 1906274307



US $308.00

QTY:
- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time

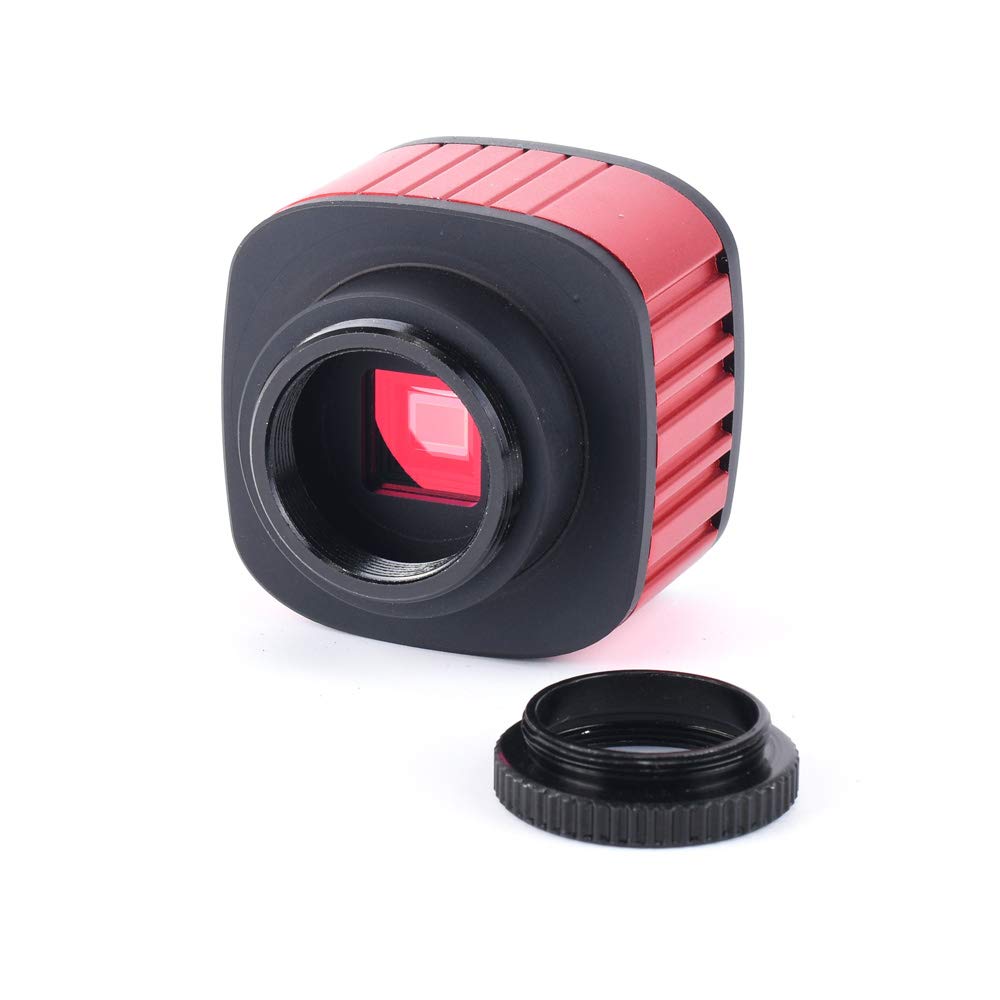

12MP USB Camera:


Model: USB2.0 Output

Sensor: 12MP, 1/2.3 inch

Image equipment: SONY IMX CMOS

Full Resolution: 3840 x 2880

Frame rate: (MJPEG) 3840 x 2880@15FPS; 3840 x 2160@25FPS; 3264x2448@15FPS; 2592 x 1944@25FPS;

1920 x 1080@25FPS; 1024 x 768@30FPS; 800 x 600@30FPS; 640 x 480@30FPS

Frame rate: (YUV )3840 x 2880@1FPS; 3840 x 2160@1FPS; 3264 x 2448@1FPS; 2592 x 1944@1FPS; 1920 x 1080@5FPS; 1600 x 1200@5FPS;

800 x 600@20FPS; 640 x 480@30FPS

Pixel size: 1.55μmm x 1.55μm

Programmable control: The size of the image, image photographing, exposure time, gain, GAMMA,

White Balance: Adjustable

Data output: 16bit

Light: Auto

Electronic shutter: 20-100000

White balance (dB): 38.1 dB,

Color: Color

Sensitivity: 1.4V/lux-sec@550nm

Spectral response: 400nm-1000nm

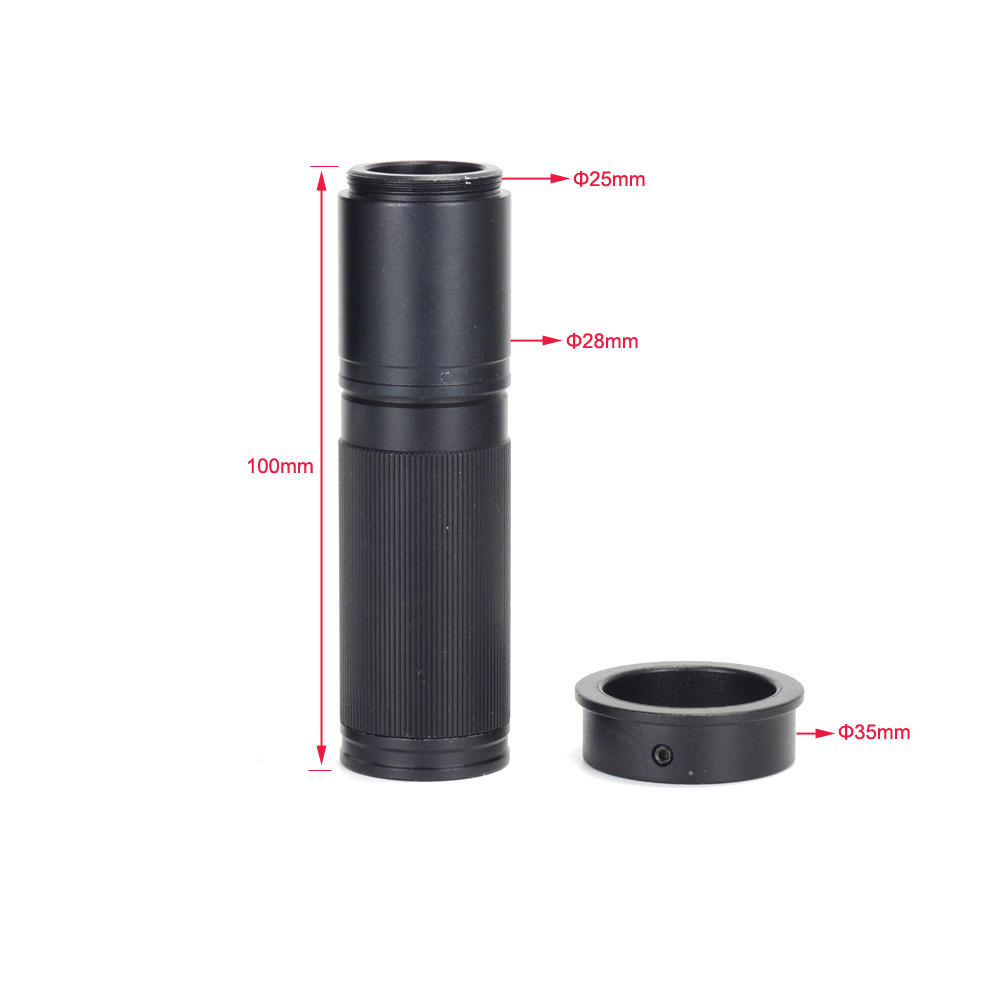

zoom c-mount lens:


zoom ratio: 5:1

magnification: 0.11X-2X ( about 5x-150x on the 21 inch display )

visual field: 3.1mm-66mm

working distance: 55mm—68000mm

with 35mm ring adapter

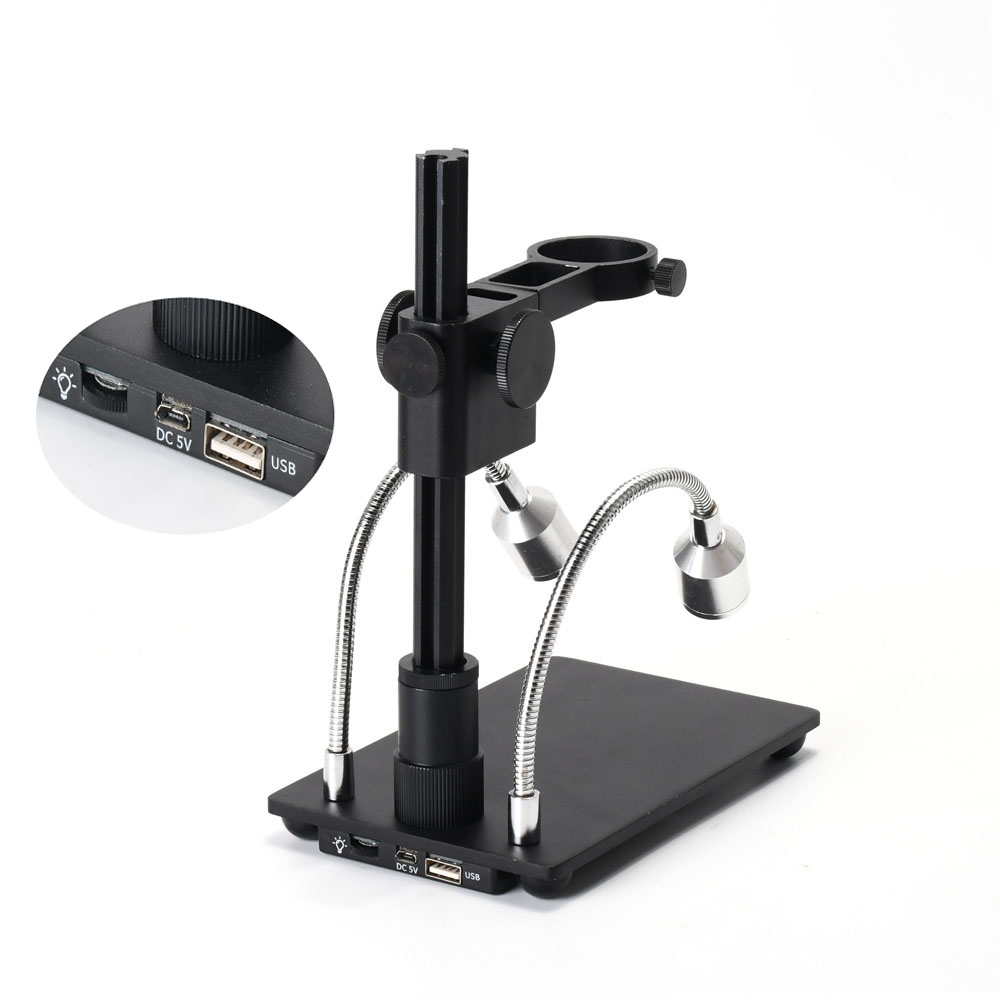

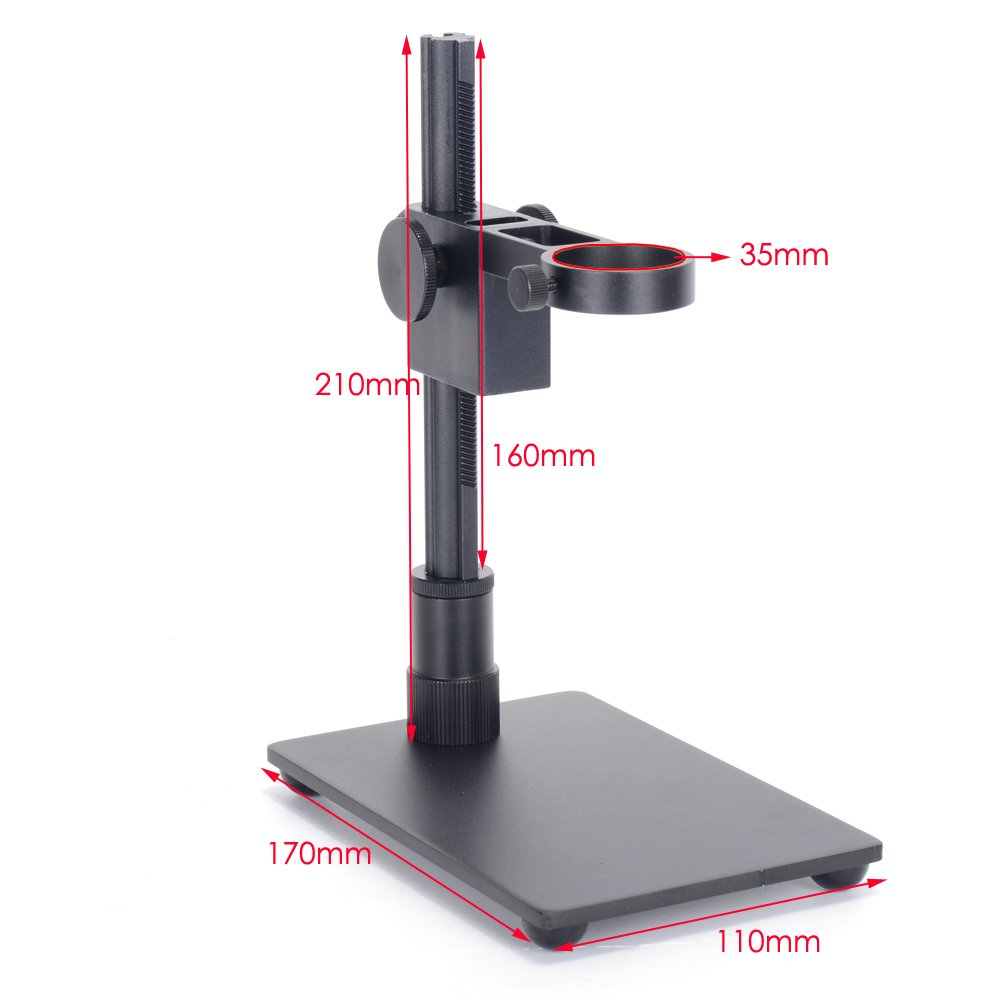

Camera stand:


Material: Alloy Aluminu

Ring Diameter:35mm(diameter)

solid base plate, high quality

simple design, beauty appearance

Demension: please check the picture

with adjustable illumilation


Package Including:


1 X 12MP usb Camera

1 X c-mount lens

1 X camera stand with adjustable light
