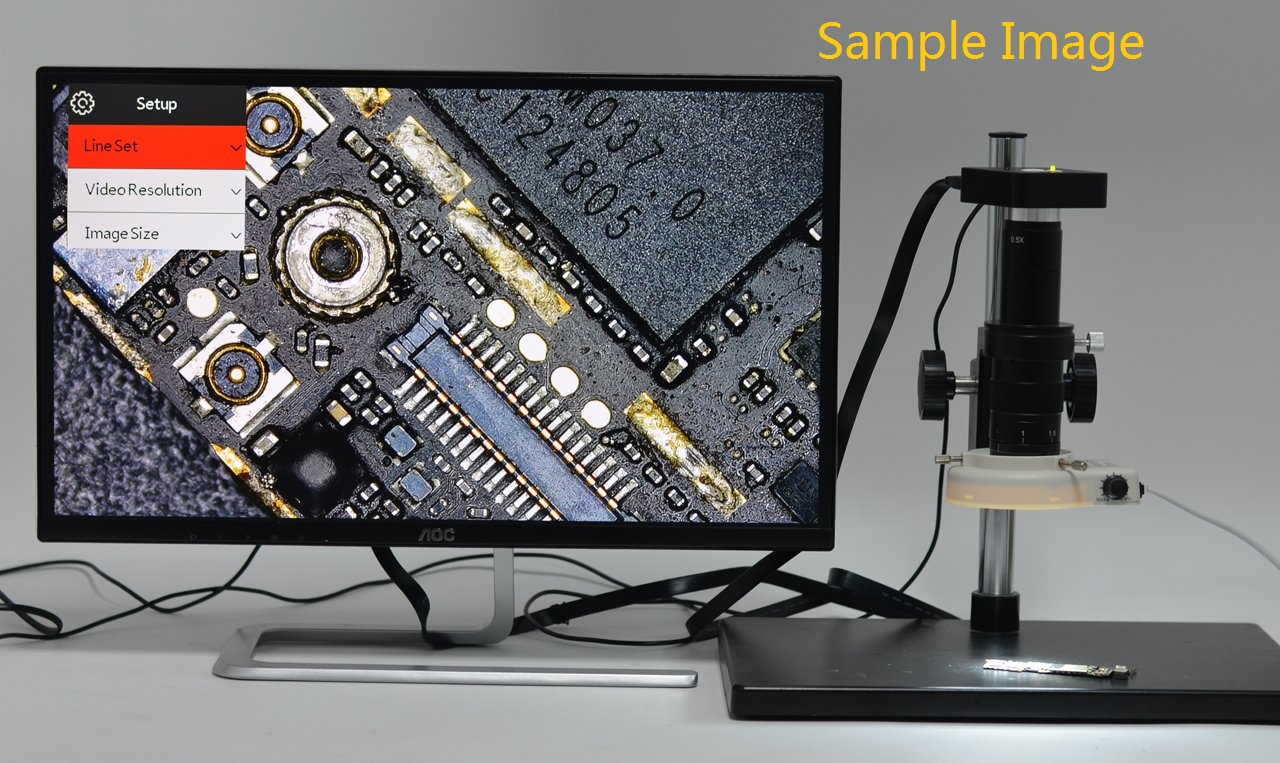

HAYEAR Full Set 21MP 1080P 60FPS 2K Full HD HDMI USB C-Mount Electronic Industry Microscope Camera Digital Magnifier for PCB Repair

1324 Reviews

Model : HY-1138T


SKU: 1903182310



US $229.00

QTY:
- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time

Noting:


1:PC Support : Windows XP/7/8/10 system

2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.

3:When use USB connection, please make sure no TF card in the camera.


Specification:


Image sensor:21 megapixel Panasonic CMOS sensor 1/2.33 inch

Effective pixel:21 megapixel

Pixel size:1.335μm × 1.335μm

Frame rate:60fps

Definition: FULL HD

Housing: metal

Lens :C/CS

Video format: MP4

Digital Zoom: Support

Brightness control: Auto/manual

Color: R/G/B adjustable

Film and record: Support

Cross cursor: Support multi-color, size adjustable

Transverse and vertical line:

Support multi-color, 5 pcs of transverse lines/vertical lines, movable

Different color,5 horizontal line , 5 vertical line, any positions

TF card interface: Max 128G

HDMI interface: Standard HDMI output (Type A)

USB interface: Standard usb2.0 interface (Type B)

Input Voltage: DC 12V

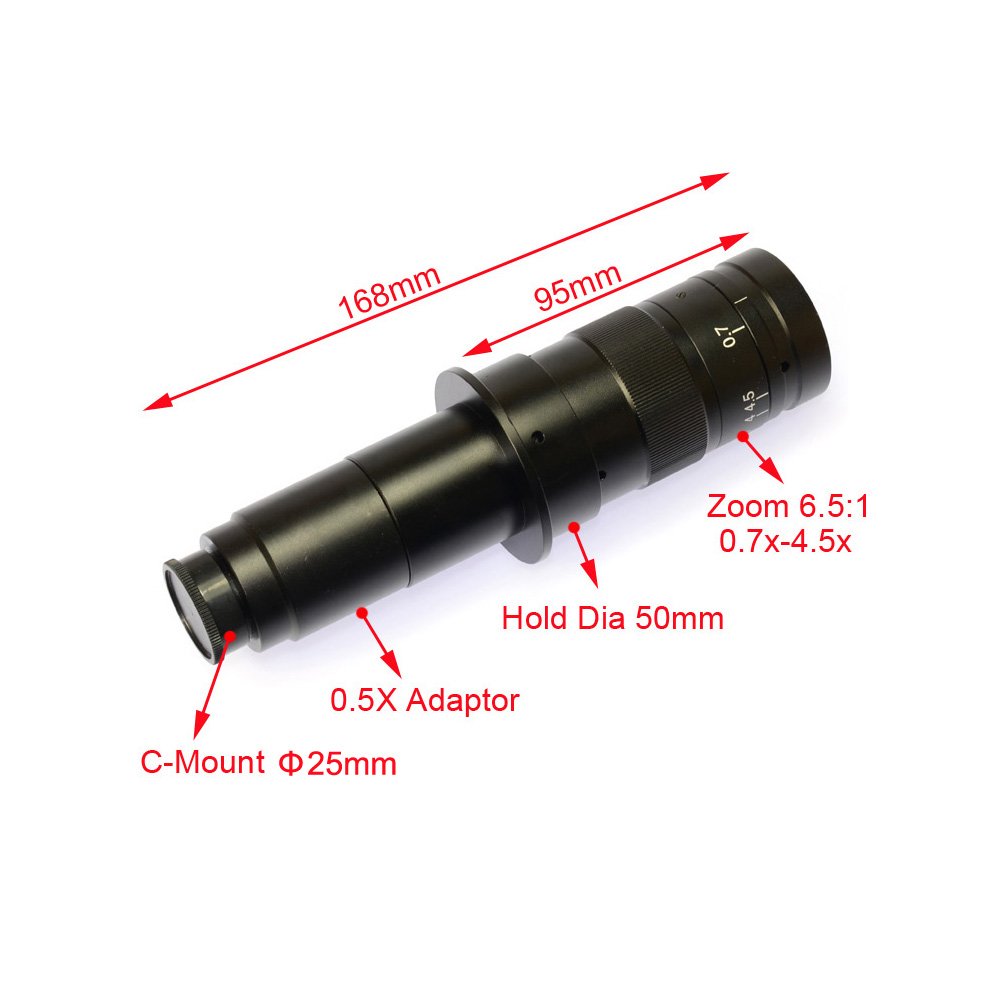

180X C-MOUNT Lens:


Working distance: 95-115mm

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)


8 Inch Monitor:


LCD Type: TFT LED

Physical Resolution: 800 × 600

Display Ratio: 4: 3

Contrast Ratio: 300: 1

Field Frequency: 50Hz, 60Hz, 70Hz

Signal Interface: AV × 1, BNC × 1, VGA × 1, HDMI × 1

Color Format: PAL / NTSC / SECAM


Package Including:


1 x Microscope Camera

1 x 12V/1A Power supply

1 x USB line

1 x 180X Zoom C-mount Lens

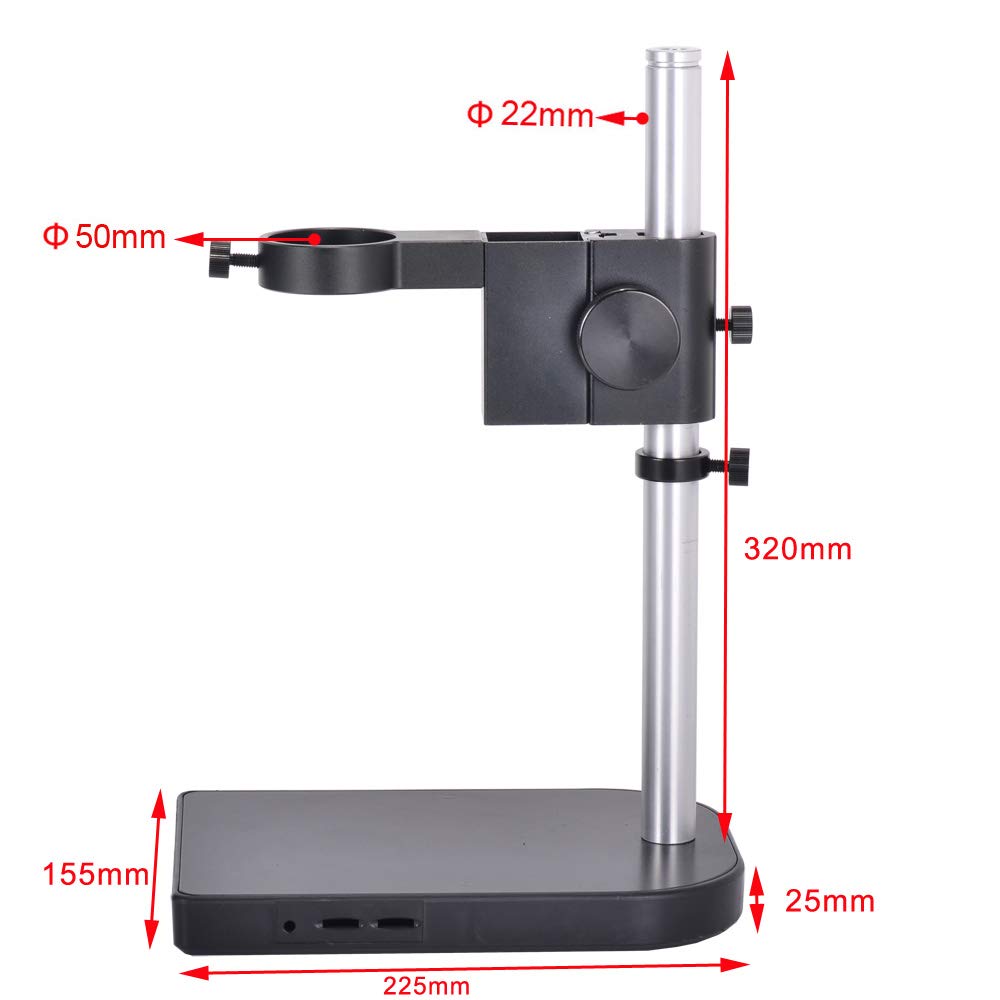

1 x Camera Stand

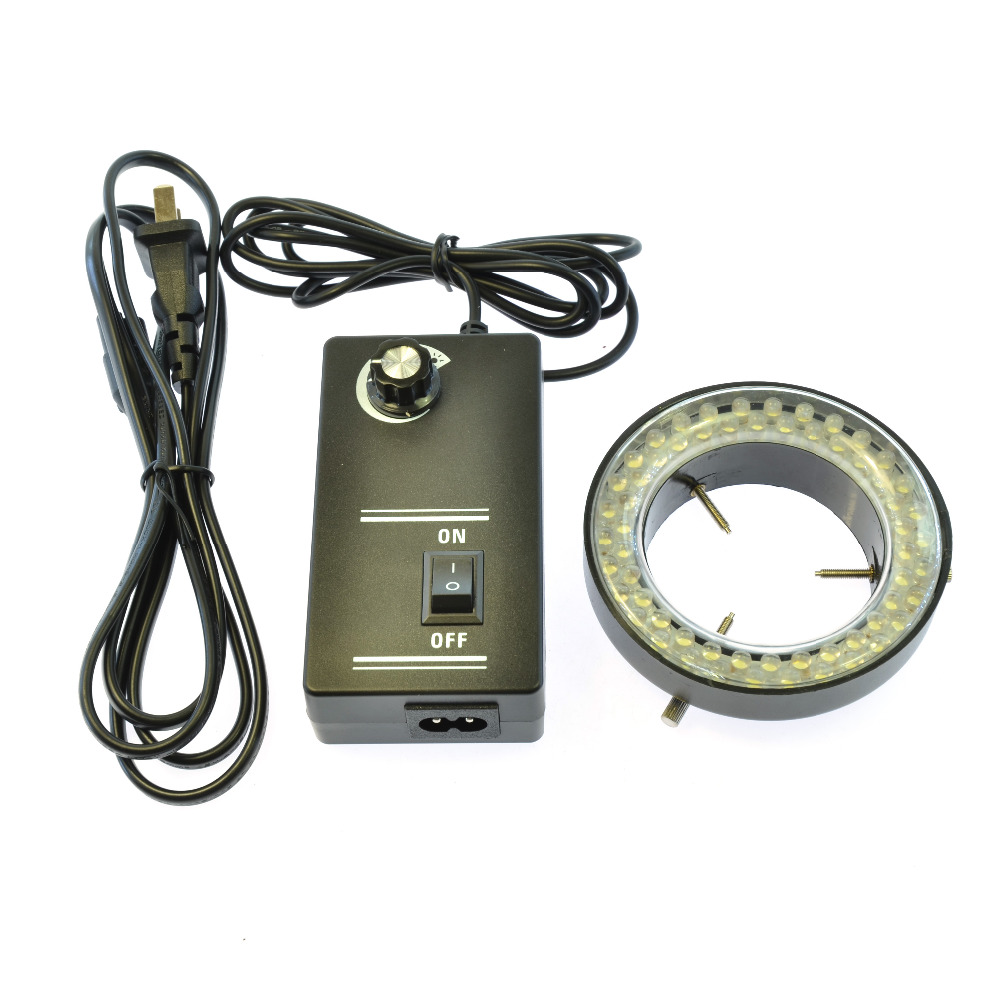

1 x 60-LED Ring Light with Power Adapter

1 x 8 inch Monitor
