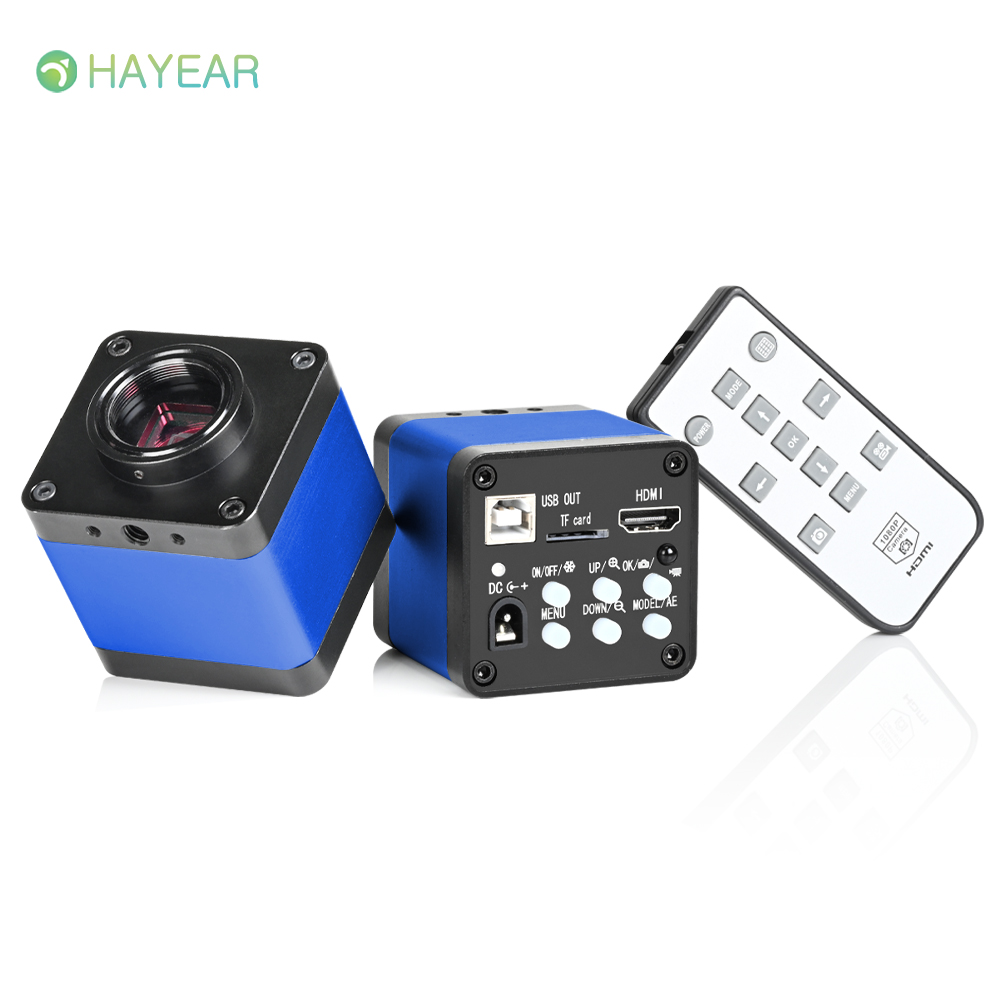

16MP HDMI 1080P HD USB Digital Industry Video Inspection Microscope Camera Set TF Card Video Recorder HY-3307

1338 Reviews

Model : HY-3307

SKU: 1806082500


US $119.00

- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time


1:PC Support : Windows / Mac / Linux System PC Software with Measuring Function
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)


High Quality, High Resolution, Clear Images
Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4608x3456 (for TF Card) 1920 x1080 @ 60FPS(for TF card);1920x1080 (for USB)
Video format: MP4(for TF card)
Video recorder: 1920 x1080 @ 60fps (for TF Card)
USB Video resolution: 1920 x1080 @ 30FPS


Image sensor: 16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel: 16 megapixel
Pixel size: 1.43x1.43umFrame rate: 60FPS
WaveLength: 400~800nm
Definition: FULL HD
White balance: Auto/manual
Digital magnification: 5 times digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Freeze: Support
OSD: EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable
SNR: Support
TF card interface: Max 256G
HDMI interface: Standard HDMI output (Type A)
Lens: C
USB interface : Standard USB 2.0 interface (Type B)

Package Content:

1 x Microscope Camera
1 x Power Supply
1 x Software DISC
