16MP 10.1" inch Screen Digital Microscope with HDMI and Type-C interface for education, scientific research, laboratory, PCB repair

598 Reviews

Model : HY-1090


SKU: 2207305612



US $135.00

QTY:
- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time

Model

HY-1090

Sensor

16 Megapixel SONY IMX sensor

Pixel Size

2.0 × 2.0μm

Sensor Size

1/2.8 inch

Video Output Interface

HDMI / USB (HD Interface)

Resolution

1920x1080@60FPSHDMI

Monitor size

10.1 inches  1280x800

USB Output

1920x1080@30FPS(USB)

Video Ratio

Support 16:9, 4:3 Mode

Picture Resolution

4608 x 3456

Frame Rate

30@FPS

Color

R/G/B support manual adjustment

Cross line

5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale

Zoom

7X digital zoom

Magnifier Function

Support magnifying in same screen

Sensitivity Level

Middle(can be used with extra light source)

Interface for Lens

Standard C/CS Interface

Dynamic Range

40dB

PC Systems

Support Windows XP/7/8/10, with measurement software(gift)

Picture Format

JPEG

Language

CN, EN, JP, FR, DE, RU, IT, KR, TUR

Working Voltage

12V/1A

Spectral Response (Wavelength)

400nm~700nm (Strong)

White Balance

Manual/Auto

SNR

45dB

Mirror Image

Support Up/Down, Right/Left

Black & White Mode

Support

Storage

TF Card, Maximum support 256GB

Working Temperature

-40°C~70°C

Product Size

mm

Package dimension

cm/KG

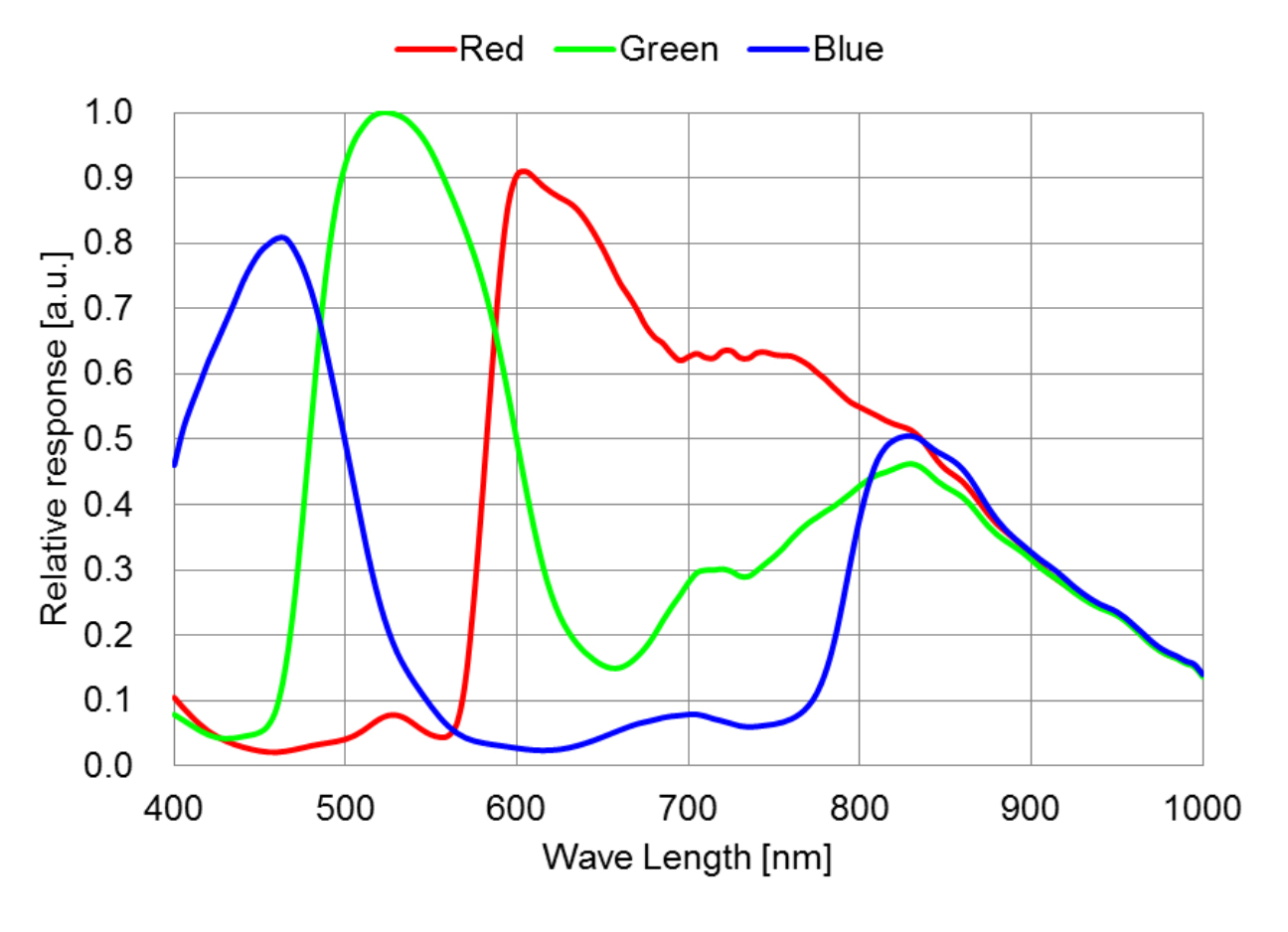

HY-1090 Spectral Response (Wavelength)

Spectral Response (Wavelength)
