HAYEAR 5.1 inch Screen 16MP 4K 1080P 60FPS HDMI USB & WIFI Digital Microscope Camera 150X C-mount Lens with IMX SONY Sensor HY-1070

1272 Reviews

Model : HY-1070


SKU: 1804262214



US $155.00

QTY:
- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time

Image Sensor

16 Megapixel SONY CMOS 1/2.3 HD Sensor

Video Output

4K/2K/1080P  Full HD (via HDMI) ;1080P (via USB)

Video Format

MP4

Magnification

Standard Magnification 180X (Max up to 360X)

Photo Resolution

16M 4608x3456, 14M 4320x3240,12M 4032x3024, Min 640x480

Photo Format

JPEG

Focus Range

5cm to 15cm

Frame Rate

4K 24@fps1080P 60@fps 720P 120@fps Max 240f/s (VGA

Video Output

HDMI/USB

Storage

TF card storage, max to 64G

PC Support

Support Windows XP/7/8/10 system, including PC measuring software(gift)

WiFi

Microscope support WIFI connection (the connection range is about 15 meters)

Stand Size

17*12*20cm

Screen Size

5.1  inch

Package Including

1*table stand, 1*power supply, 1*USB line, 1*HDMI line, 1*manual, 1*remote control,

Package Size

28*22*17cm/1.9Kg

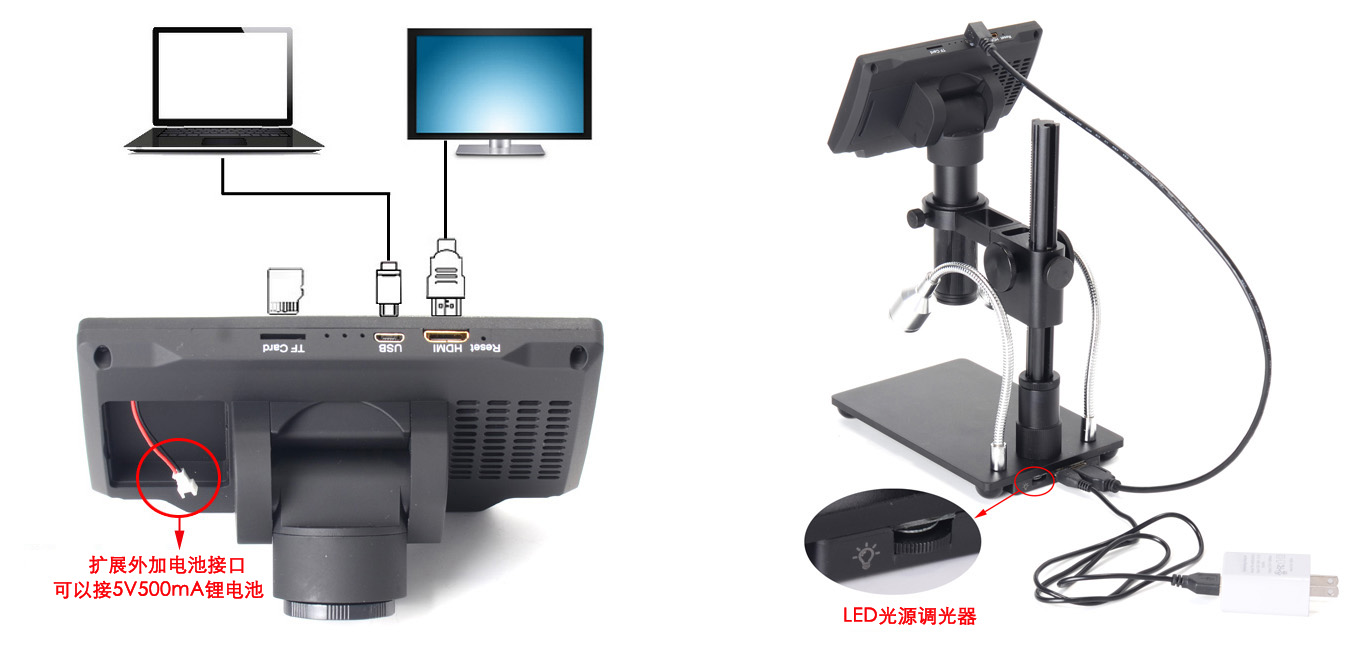

connection and output

Besides of the output to the microscope screen itself, HY-1070 still has 3 kinds output as HDMI, USB and
TF card storage. The below is an aerial view of the different ports of the main device, we will expand it in the later chapters.
