1080P 60FPS 2K HD HDMI USB digital Industry Video Inspection Microscope Camera TF Card Video Recorder for mobile phone PCB repair HY-1137R

1137 Reviews

Model : HY-1137

SKU: 1810105711


US $125.00

- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time


1:PC Support : Windows / Mac / Linux system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)


Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4608x3456 (for TF card) 1920x1080 @ 60FPS(for TF card)
Video format: MP4(for TF card)
Video recorder: 1920x1080 @ 60FPS (for TF Card)
HDMI Video resolution: 1920x1080 @ 60FPS
USB Video resolution: 1920x1080 1280x720 640x480 320x240 @ 30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/Right,Up/Down
Freeze: Support
OSD: EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP
Line: different color,5 horizontal line , 5 vertical line, any positions


Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:16 megapixel
Pixel size:1.335μm × 1.335μm
Definition: FULL HD
Housing: metal
Lens: C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color:R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable

Transverse and vertical line

Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions

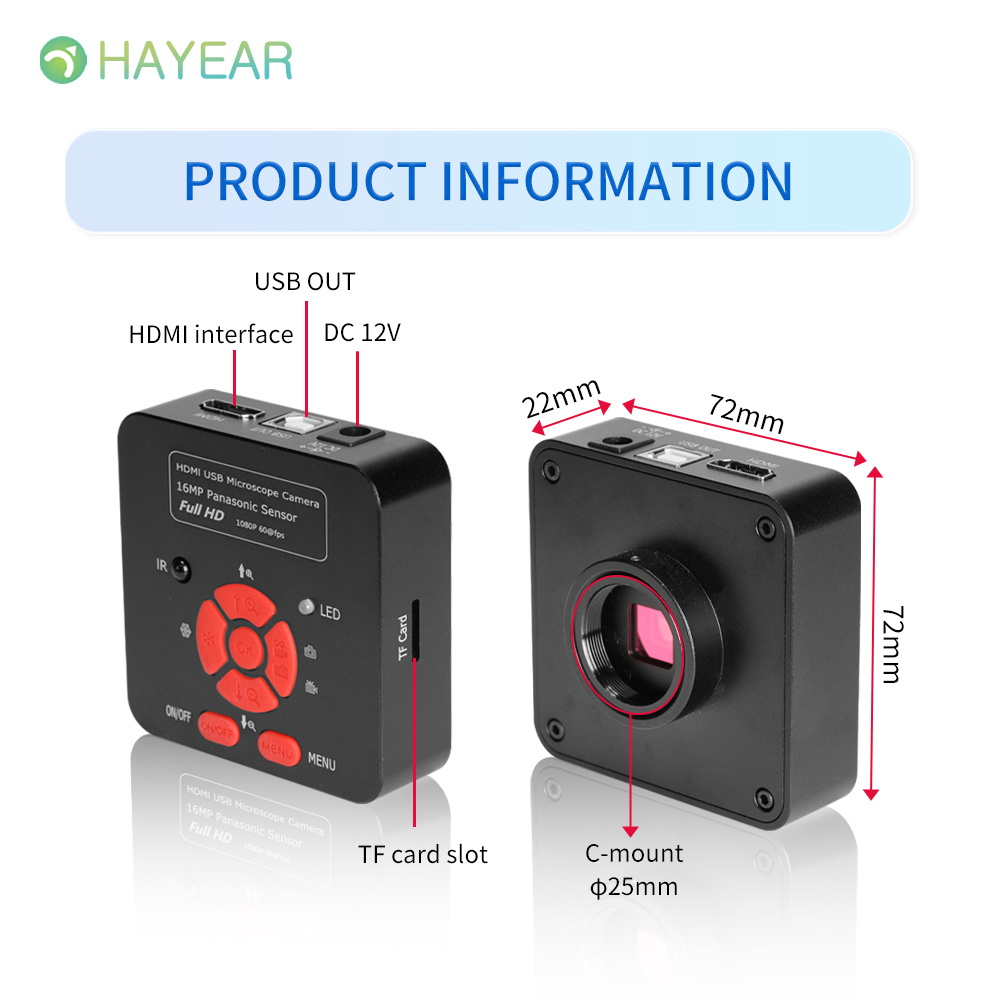

TF card interface: Max 128G

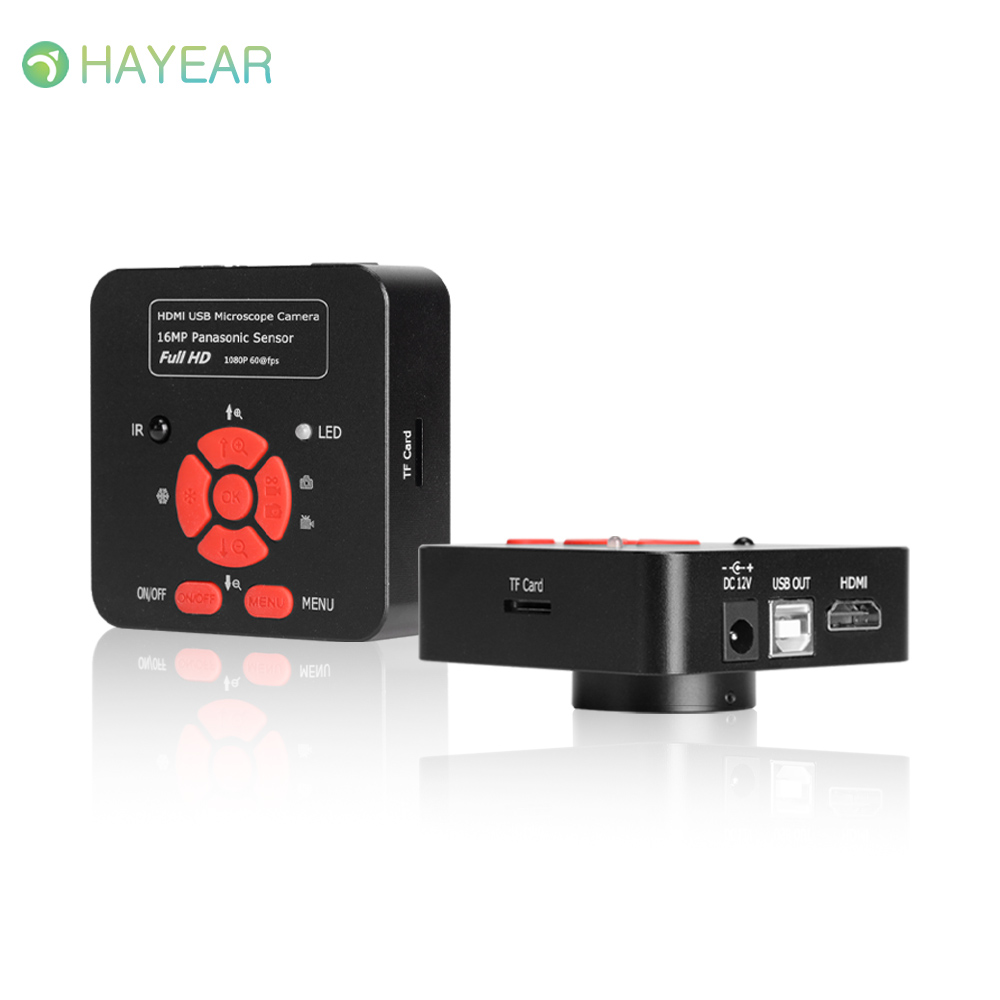

HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

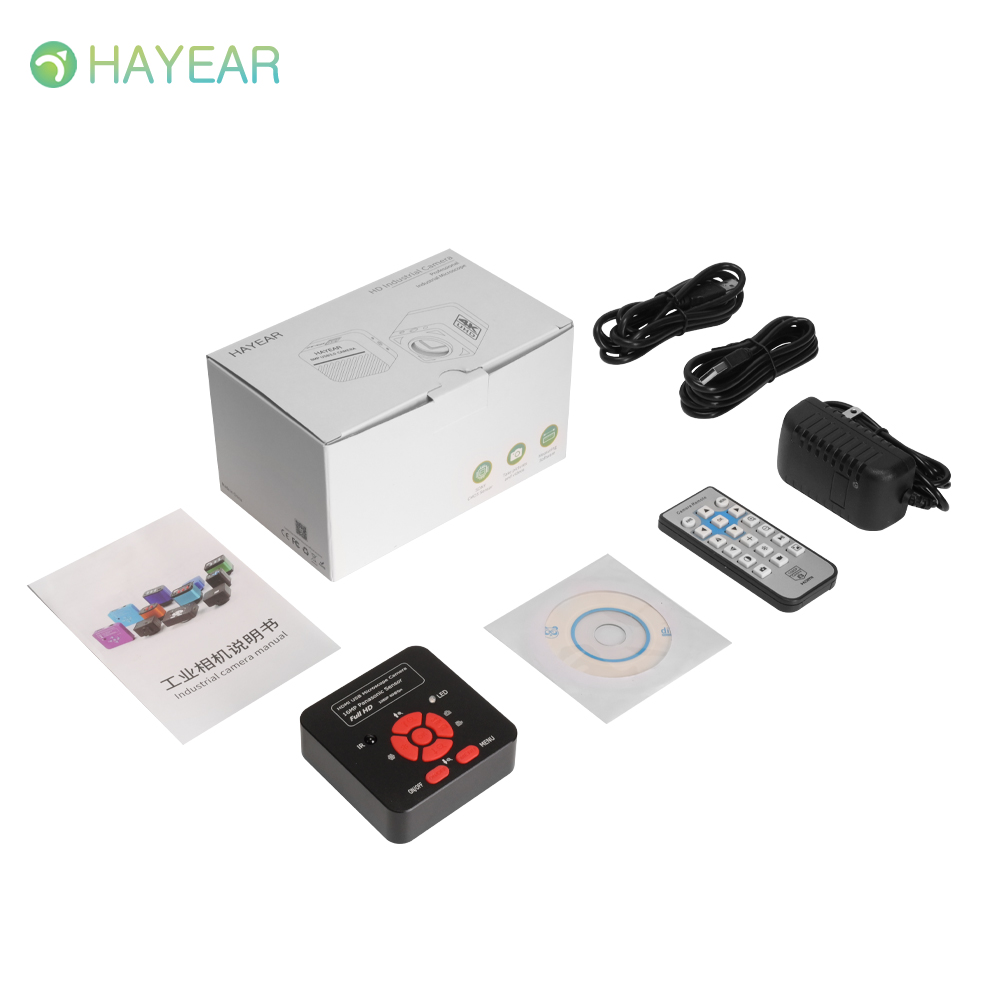

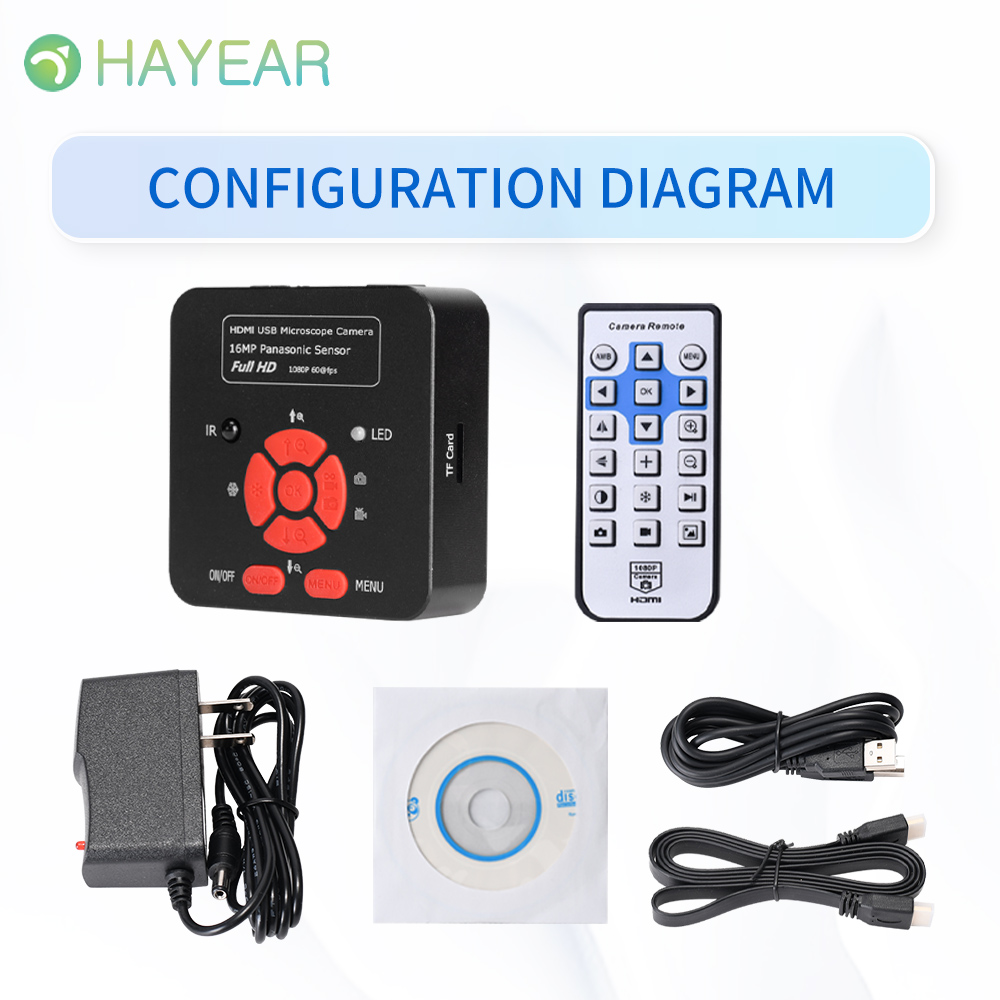

Package including

1 x microscope camera
1 x power supply
1 x remote control
1 x USB line
