HAYEAR 10.1 Inch HDMI LCD Digital Microscope Set 16MP Microscope with Screen for Soldering

286 Reviews

Model : HY-1091


SKU: 2310255628



US $155.00

QTY:
- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time

Camera  Features

Model :HY-1090

Sensor:16 Megapixel SONY IMX sensor

Pixel Size :2.0 × 2.0μm

Sensor Size :1/2.8 inch

Video Output Interface: HDMI / USB (HD Interface)

LCD Monitor: 1280x800

Resolution: 1920x1080@60FPS(HDMI)

Monitor size: 10.1 inches

USB Output :1920x1080@30FPS(USB)

Video Ratio : Support 16:9, 4:3 Mode

Picture Resolution : 4608 x 3456

Frame Rate: 30@FPS

Color: R/G/B support manual adjustment

Cross line  : 5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale

Zoom : 7X digital zoom

Magnifier Function:   Support magnifying in same screen

Sensitivity Level: Middle(can be used with extra light source)

Interface for Lens: Standard C/CS Interface

Dynamic Range: 40dB

PC Systems : Support Windows XP/7/8/10, with measurement software(gift)

Picture Format: JPEG

Language :CN, EN, JP, FR, DE, RU, IT, KR, TUR

Working Voltage : 12V/1A

Spectral Response (Wavelength) :  400nm~700nm (Strong)

White Balance  : Manual/Auto

SNR : 45dB

Mirror Image: Support Up/Down, Right/Left

Black & White Mode Support

Storage :TF Card, Maximum support 256GB

Working Temperature: -40°C~70°C

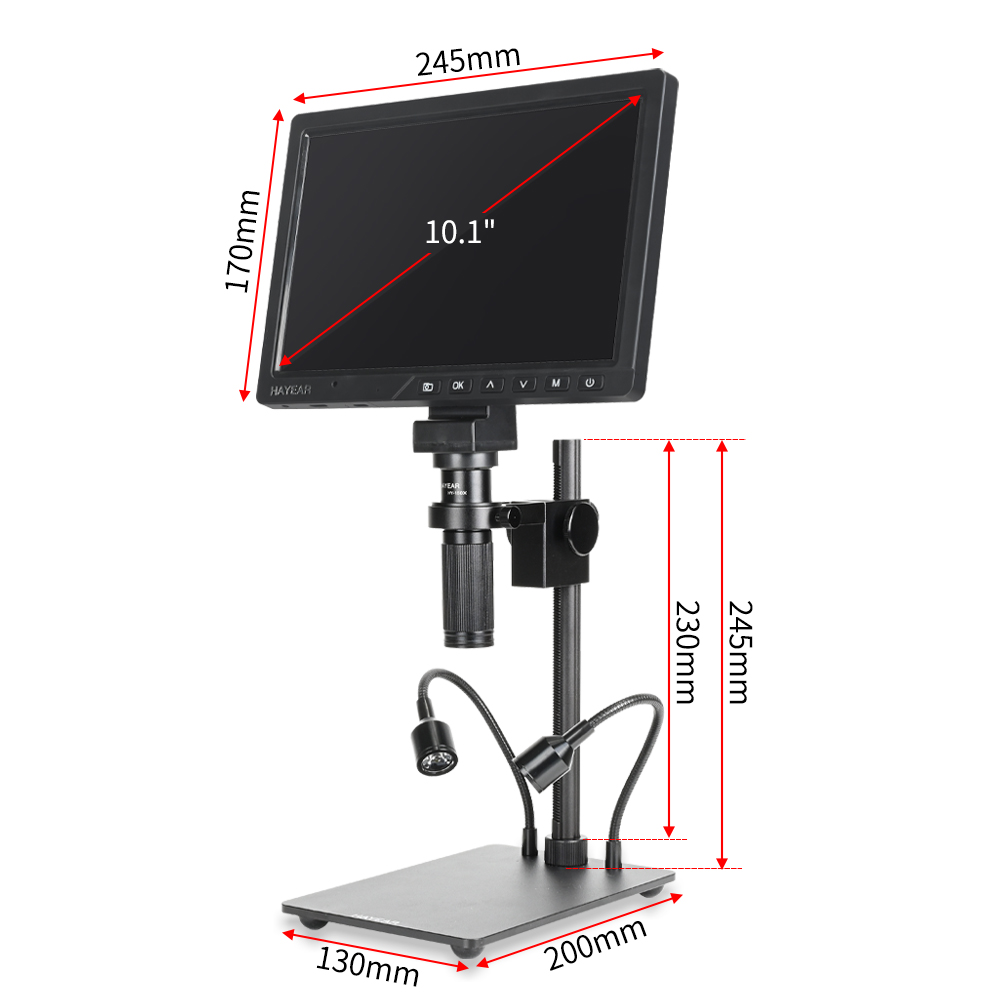

New Stand

Stand size :130mm*200mm*245mm

Bracket DIA:50mm





Lens

HY-150x

150X Objective Lens:

Working distance: 10mm-55mm

Field of view: 3.1mm-66mm

zoom c-mount Lens

zoom ratios: 5:1

Magnification Power by 0.11X - 2X

Size: 100mm(L) * 28mm(DIA)



Package including:

1 x16MP Microscope Camera

1 x Power supply

1 x USB line

1 x Remote Control

1 x 150X C-Mount Objective Lens

1 x Stand
