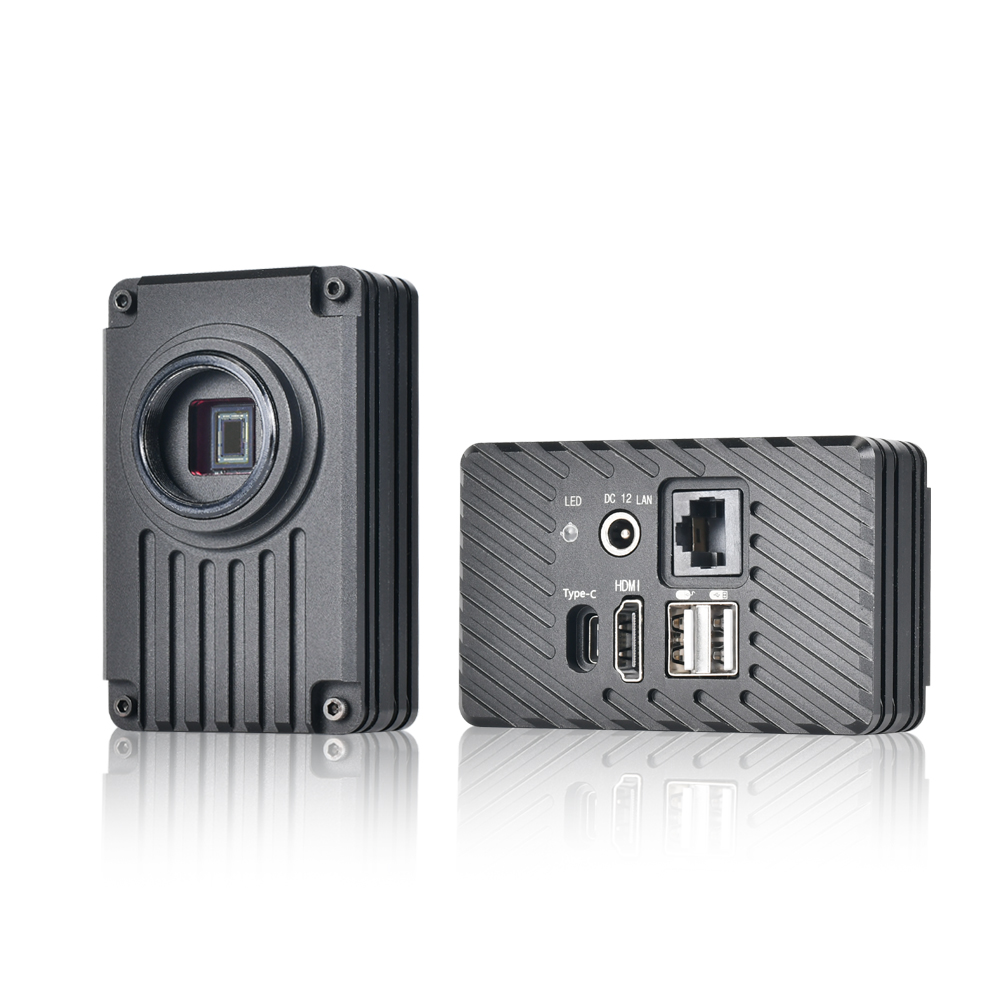

4K HDMI LAN USB Measurement Industrial Video Microscope Camera

520 Reviews

Model : HY-3699


SKU: 2310061327



US $179.00

QTY:
- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time

Specification

Model

HY-3699

Image Sensor

1/2.8" Sony IMX415 CMOS 8MP

Pixel Size

1.45x1.45μm

HDMI Output Resolution

1920x1080P @60FPS

Recording Resolution

3840x2160P@ 30FPS (4K)

USB Output Resolution

1920x1080P @30FPS

LAN Output Resolution

1920x1080P @30FPS

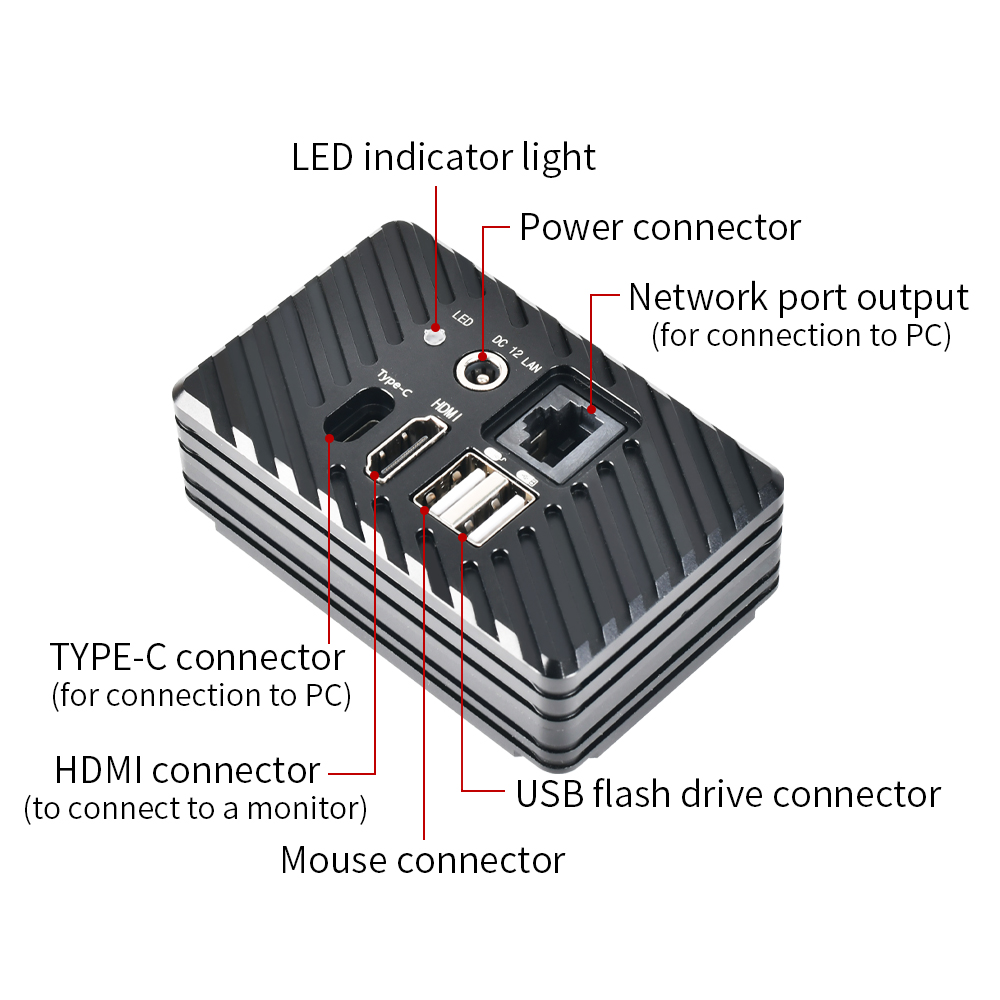

Output Interface

HDMI, Type-C, USB, LAN

Features

Marking Feature

Point coordinates, crosshairs, coordinate systems, text annotations

Length Measurement

Line length, polygonal line length, curve length, parallel line distance, point to line distance

Centers Distance

Radius defining circle, two point defining circle, three point defining circle, concentric circles

Geometric Measurement

Line Length, radius defining circle, two point defining circle, three point defining circle, concentric circles

Geometric area

Polygon, square

Snap

8MP Still Image

Record

Support 2160P Recording

Network Video

Support RTSP Streaming, RJ45 Interface

Other Function

Vertical rotation, horizontal mirroring,

Monochrome images, frozen images, image contrast

Packing

Power Adapter

DC-12V/1A

Weight

0.35kg

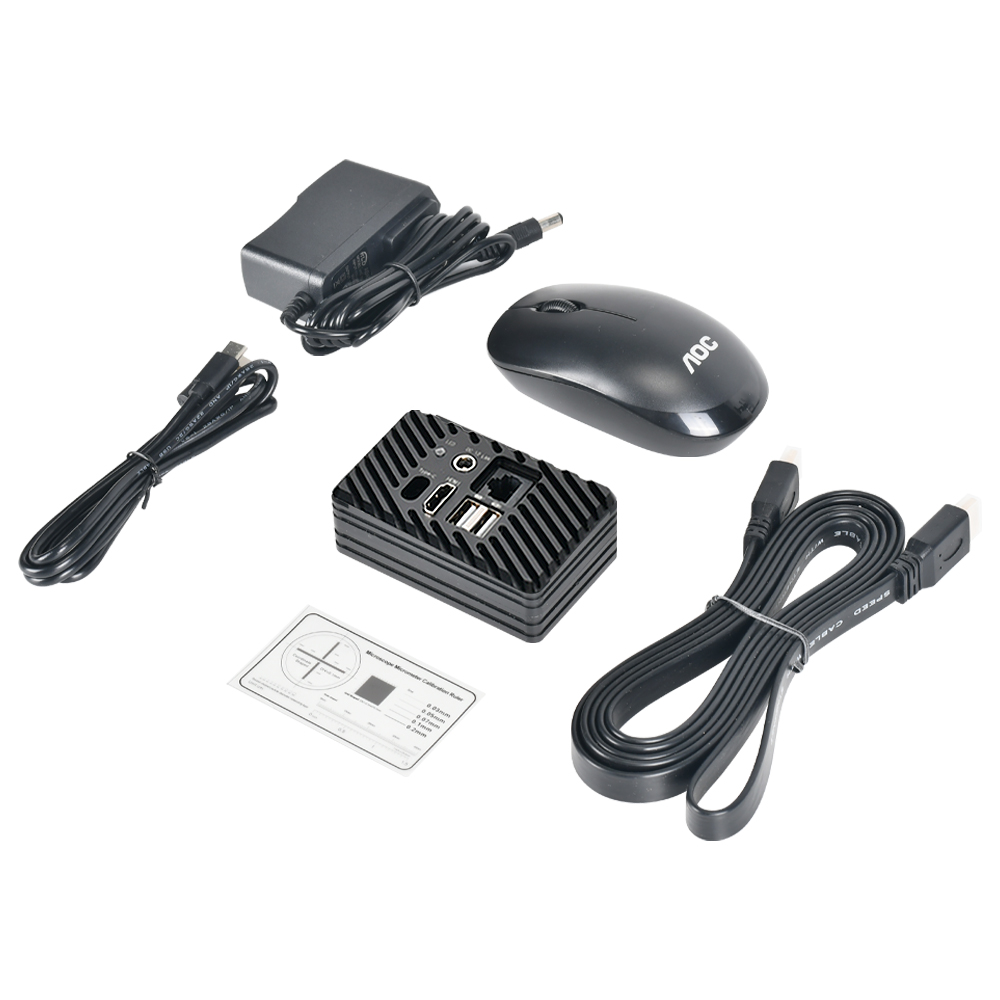

Standard Accessories

Mouse, DC-12V Power adapter, HDMI Cable
