model | HY3D-150S | HY3D-150D |
magnification | 25X-150X | 25X-150X |
operation mode | Manual rotation observation | Electric rotation observation |
viewing angle | Viewing angle of 45 degrees | Viewing angle of 45 degrees |
rotating speed | - | 2-6 rpm |
Optical zoom | 6.4:1 | 6.4:1 |
Coaxiality and confocal |

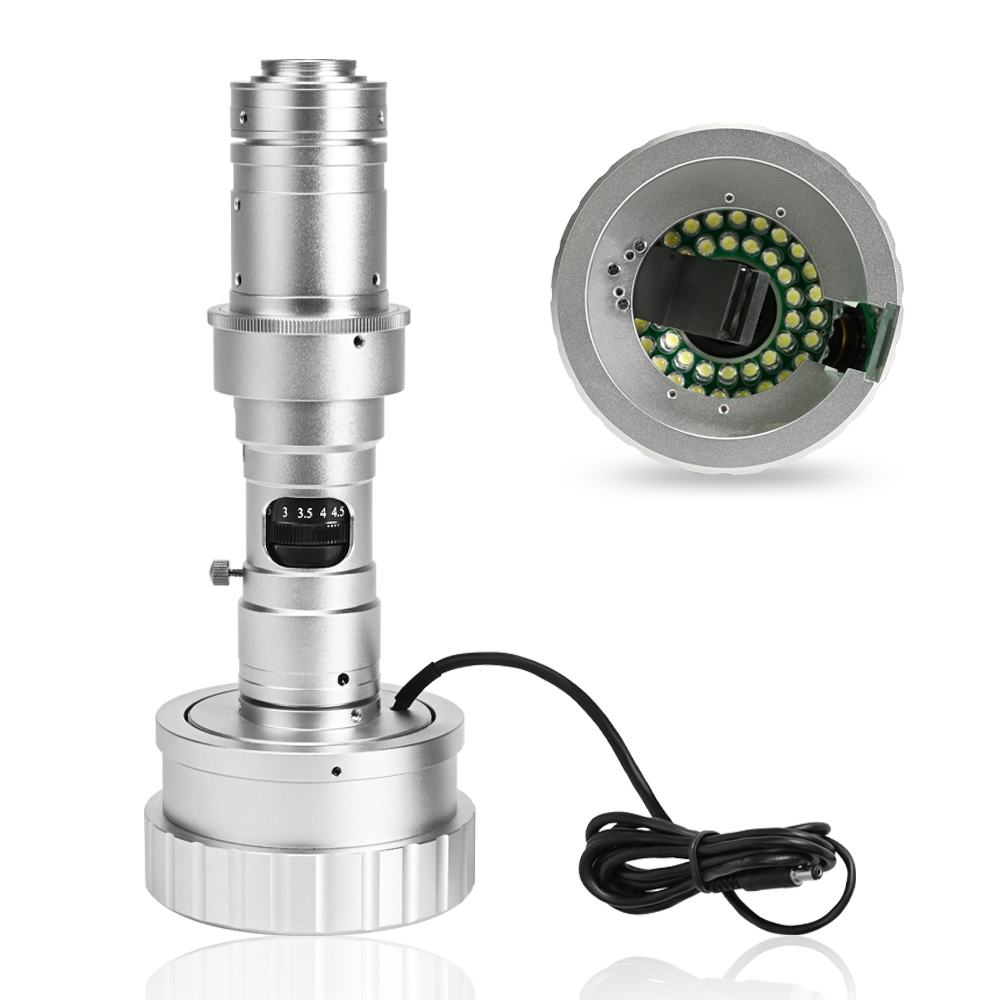

Lens magnification: 0.7X~4.5X, ratio: 6.4 : 1 |
The magnification of the whole system can be improved to 30X~180X |
Working distance: 32 mm with the 30°reflection module. |

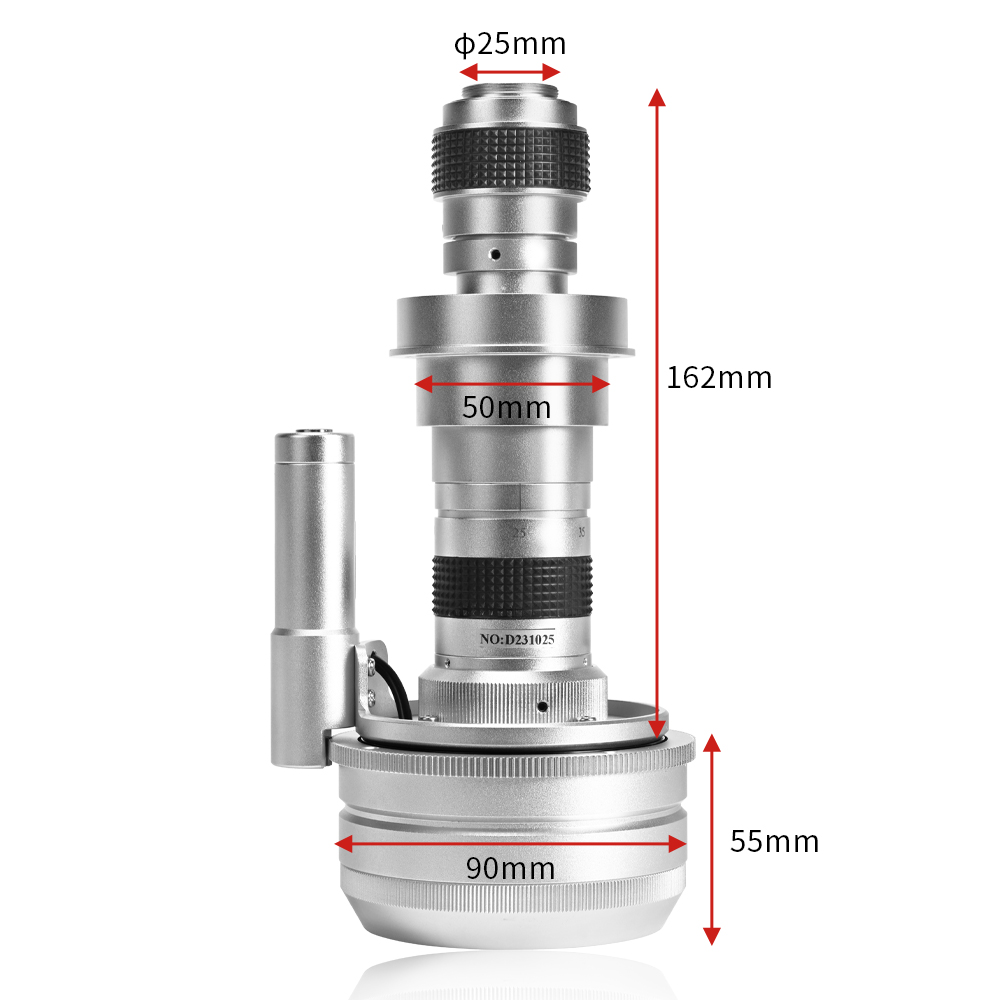

Main adjustment dimension Φ50mm |
Fine adjustment lens function and zoom location function are optional |
Standard C connector (distance between bearing surface and CCD camera target surface is |
17.55mm). The size of the CCD camera thread connector is 1 inch and 32, the connector can be changed with CS. |

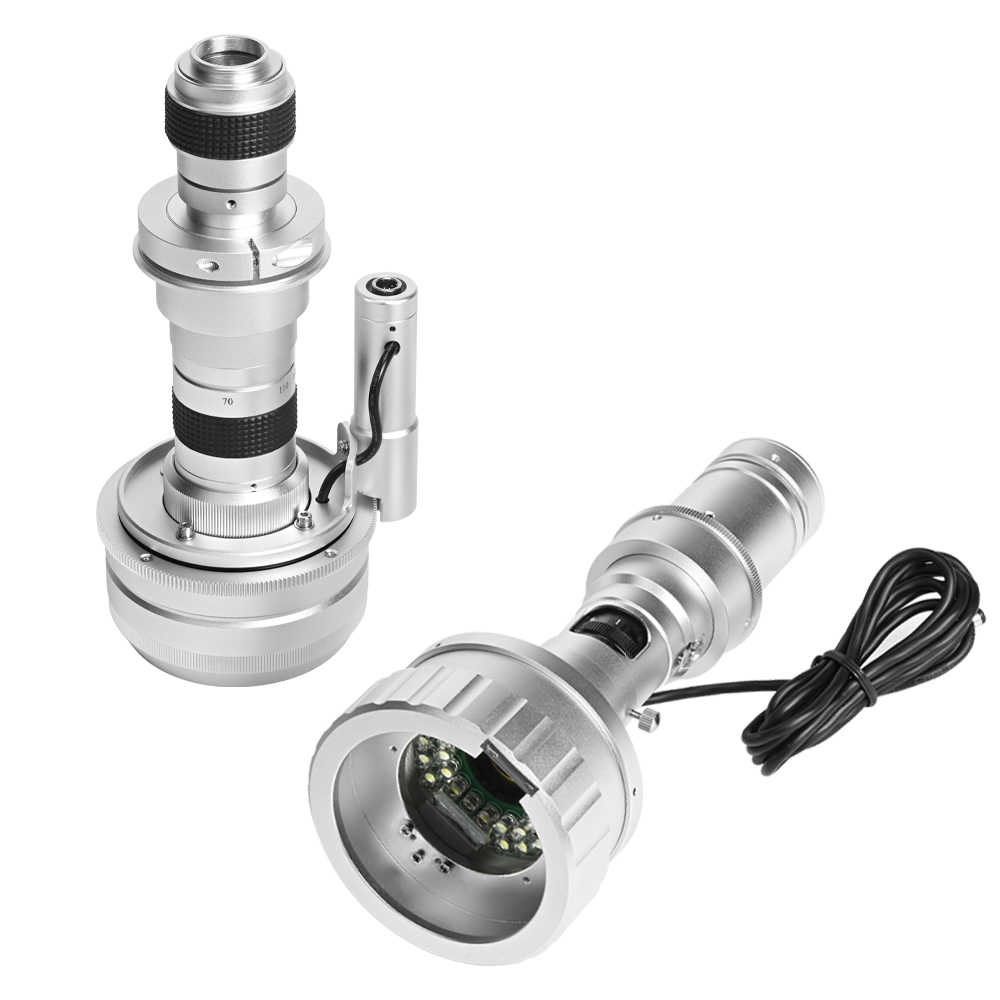

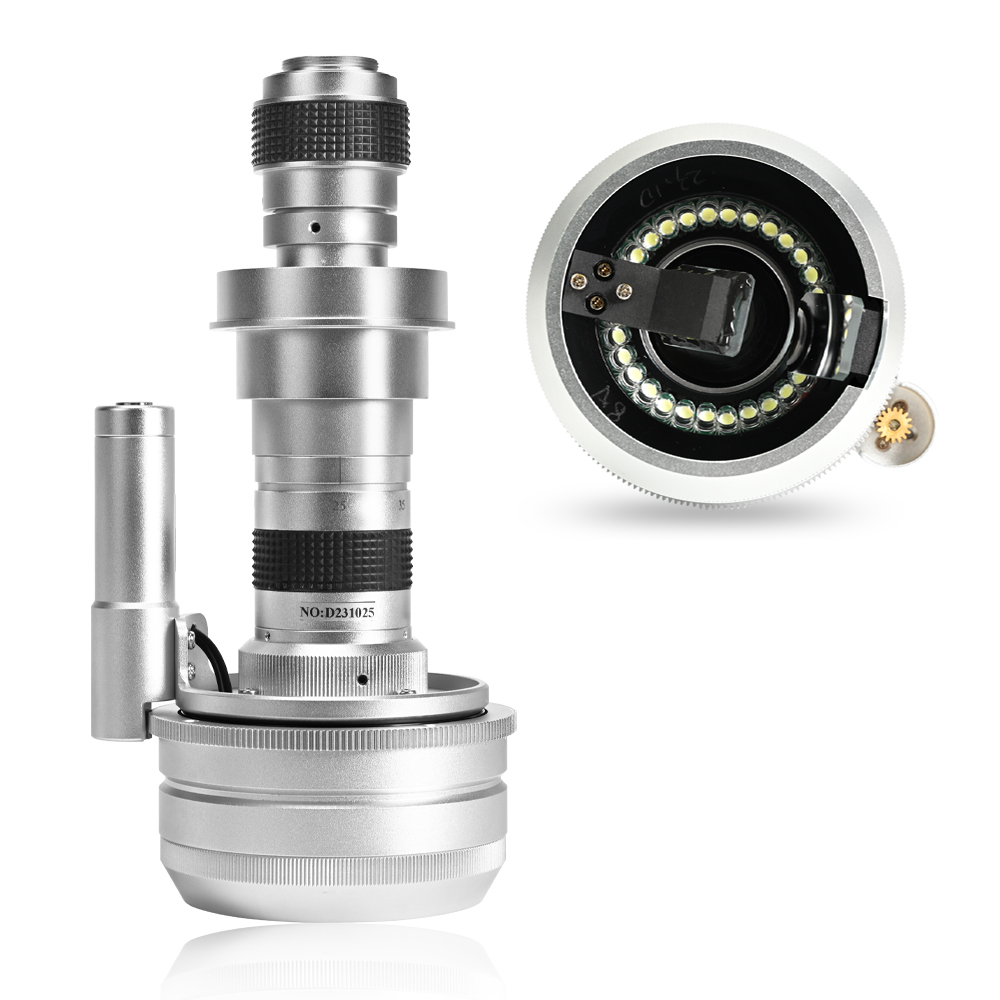

LED ring lamp, the brightness is changeable |
Light source base transformer: AC: 85 V-265 V, 50 Hz-60 Hz, DC: 12 V, 5 A. |

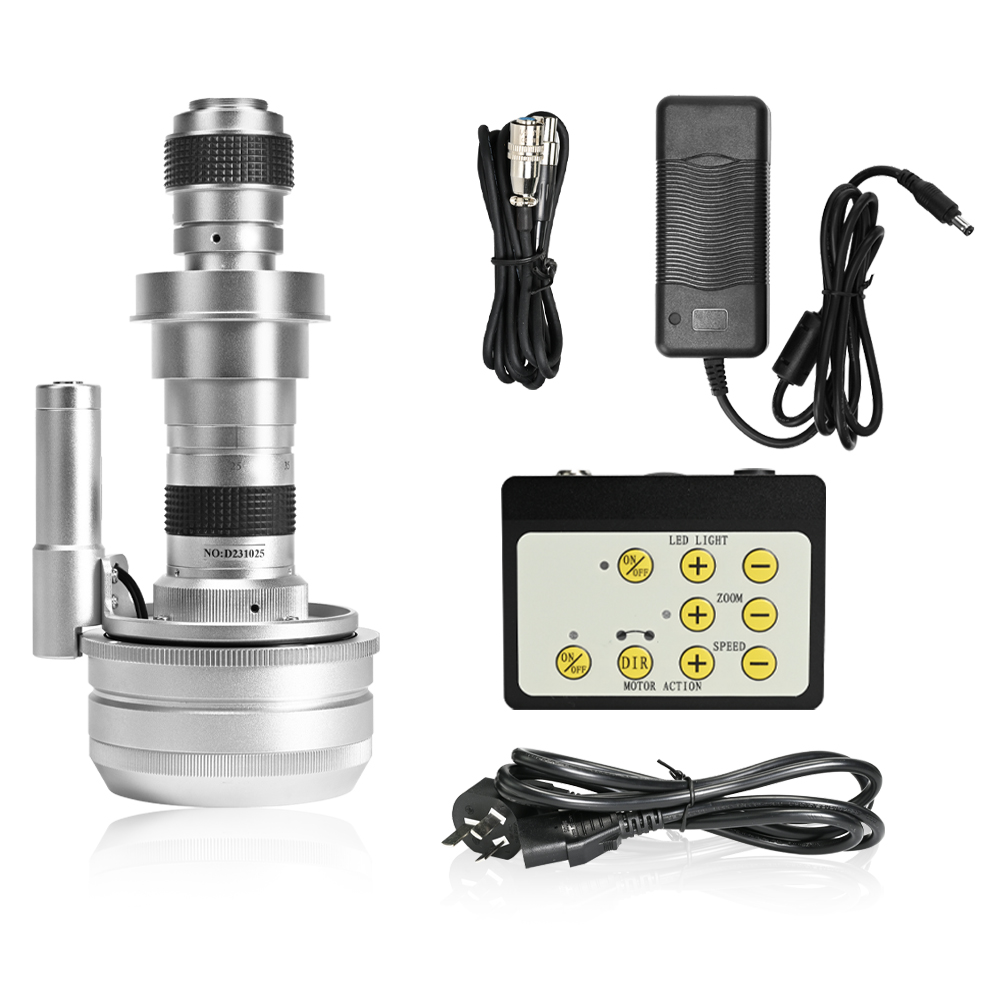

The package includes:
1 x C-mount lens with 3D |
zoom 1 adapter. |
