4K microscope camera:
Model: HY-5299 | |
Image Sensor | CMOS 1/2.33" IMX Sensor |
Effective pixel | 4032X3024(12MP) |
Pixel size | 1.55μm×1.55μm |
Frame Fate | 3840*2160@60PFS(4K);1080P@120FPS;720@240FPS |
Spectral response | 400nm~700nm |
Video Resolution | HDMI(4K/2K/1080P);USB(1080P) |
Photo format | JPEG |
Working voltage | DC12V 1A |
Same screen comparison | Real-time observation and comparison of different products |
Exposure | Support auto/manual,value adjustable |
Digital zoom | 7X digital zoom in and zoom out |
Lens interface | Standard C/CS interface |
Measurement | Support HAYEAR measurement |
Storage | TF card,MAX support 256GB |
Support systems | Support Win XP/Win7/Win10/win11 systems, with measurement function PC software(give as a present)
|
Language setting | Chinese,English,Japanese,French,German,Russian,Italian,Korean,Turkish,and other language |
180X c-mount lens:
Model number | HY-180XA |
Mount | C-Mount zoom lens |
Eyepiece | 0.5X |
Zoom range | 0.7-4.5x continual zoom |
Zoom ratios | 6.5:1 |
Working distance | 100-150mm |
Magnification | 20X~180X(21.5 inches monitor) |
size | 170mm(long)*50mm(diameter) |
weight | 500g |
Specification:
Light source | 60pcs LED |
Input Voltage | AC90-240V |
Output Voltage | DC12V |
Output frequency | 4.5W |
Working Distance | 40-160mm |
Illumination | 30000LUX-35000LUX |
color temperature | 6500K-7000K |
brightness range control | 0% - 100% |
light Color | cool white |
Product Light | >30000HRS |
Valid optical length | 75mm |
Valid optical path | 30mm |
Power box size | 110 x 60 x 30mm |
Material of power box | Plastic |
Color | Black |
Inside dia. Of Ring Light | 61.5mm |
Outside dia. Of Ring Light | 94mm |
Inside dia. Of ring holder | 26mm |
Outside dia. Of ring holder | 45mm |
Auxiliary ObjectiveSPEC:
Magnification | 0.3X/0.5X/0.7X/ 2X Options |
Install Thread DIA | 42mm |
For 10A 120x 180x 300x | |
Working distance | 400mm /17mm/100mm/30mm |
Field of view | 8x12/36x5/23x3/8x1 |

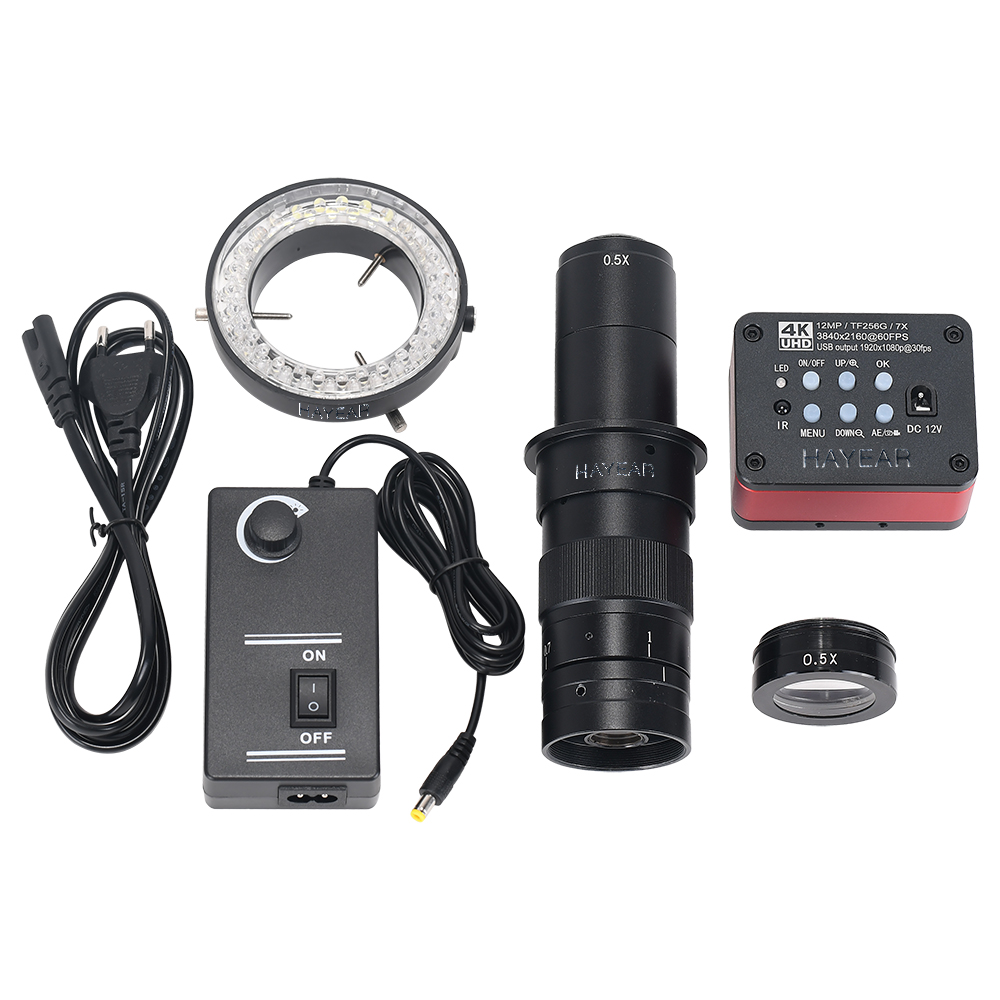

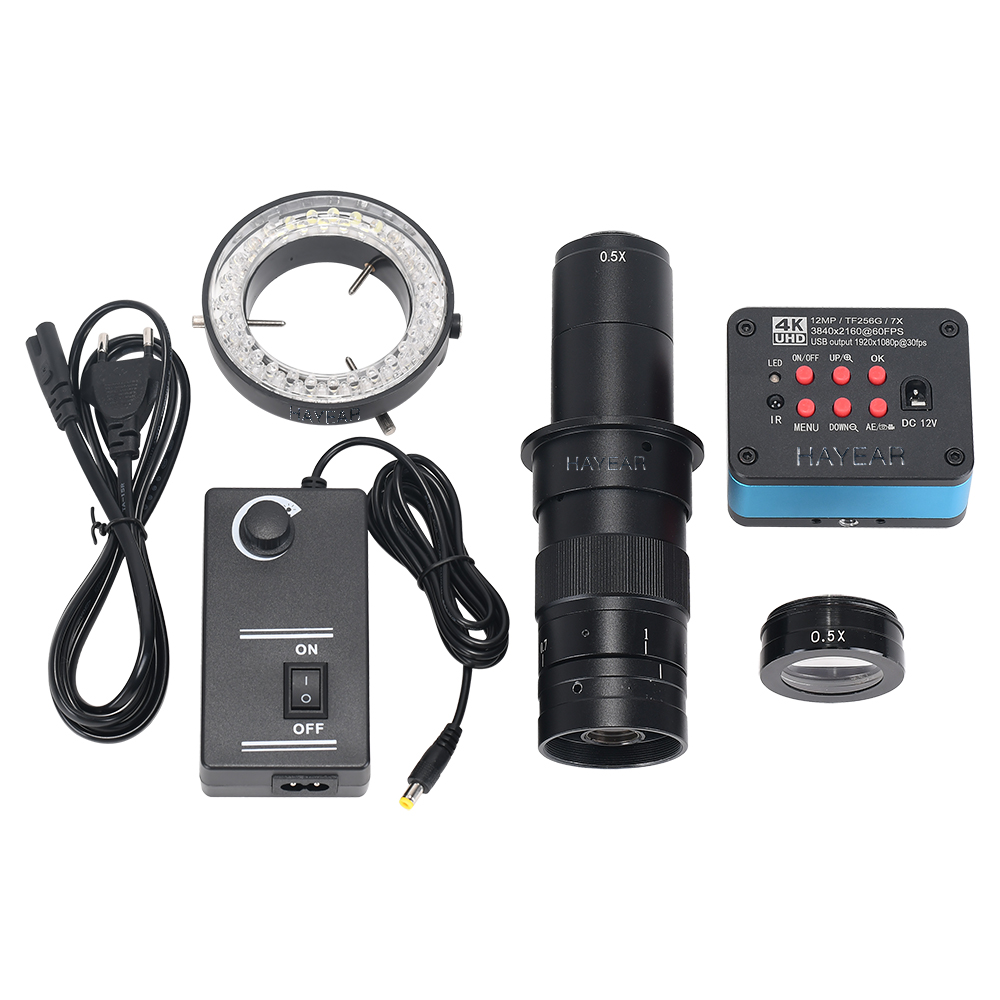

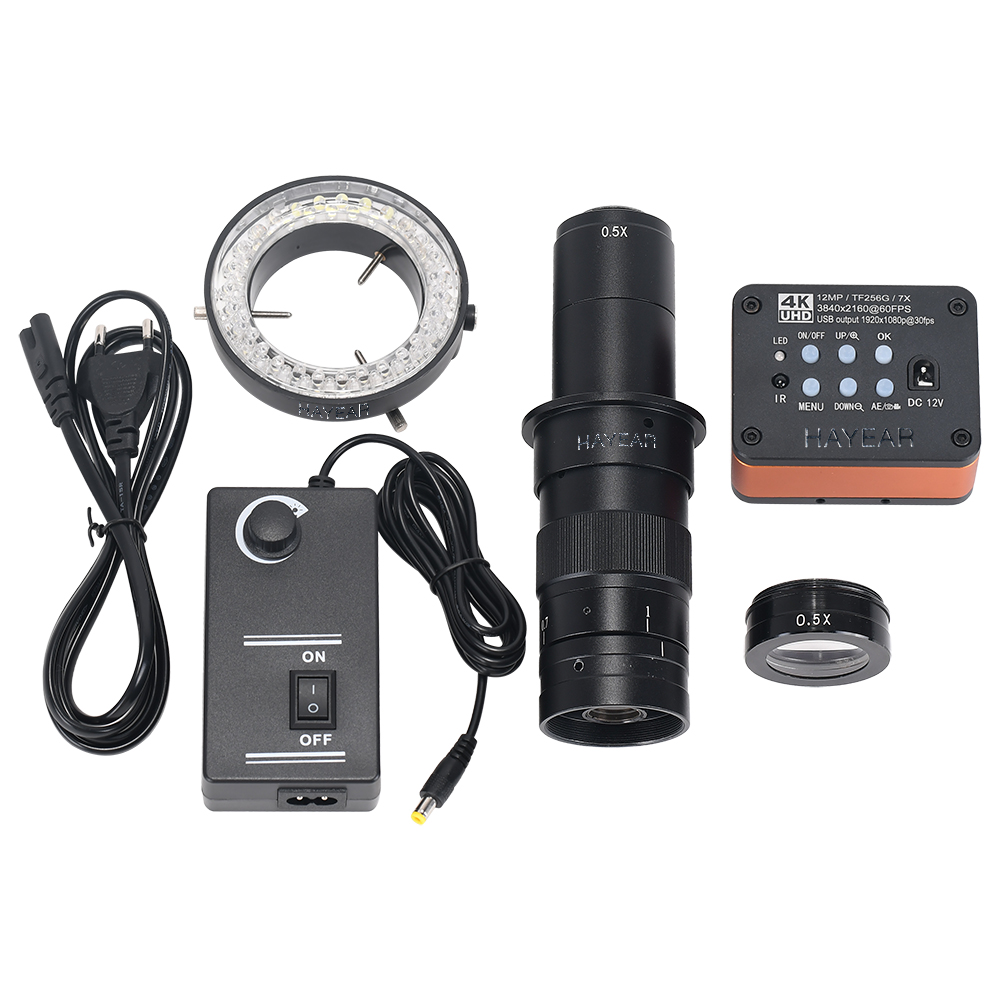

Package including:
1 x Camera with power adapter |
1 x USB cable |
1 x Software DISC |
1 x Remote Control |
1 x 180X C-mount lens |
1 x 60 LED Light with power adapter |
1 x HDMI cable |
