Model | HY-6811 |

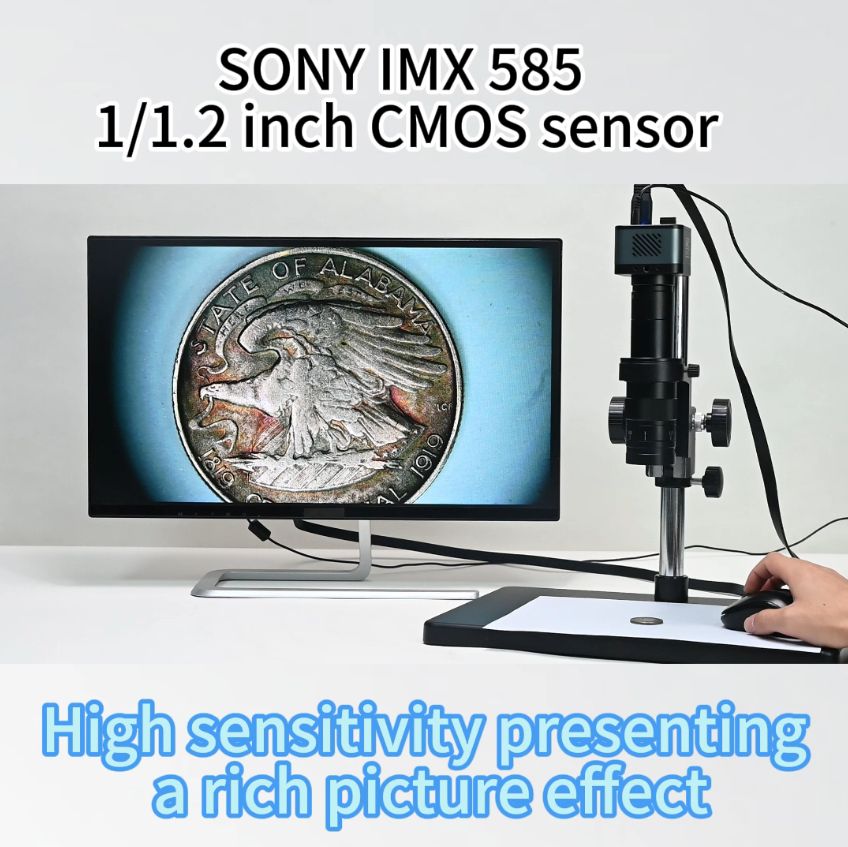

Image Sensor | SONY CMOS IMX585 1/1.2" |
Sensor Size | 1/1.2" |
Pixel Size | 2.9 × 2.9μm |
Video Output | 4K/2K/1080P FHD（via HDMI）; 4K（via USB） |
Resolution | 3840×2160 @60FPS(4K) |
Frame Rate | 60@FPS |
Image resolution | 3840 × 2160 (8MPX) |
USB output Resolution | 3840x2160@30FPS;1920x1080P@60FPS |

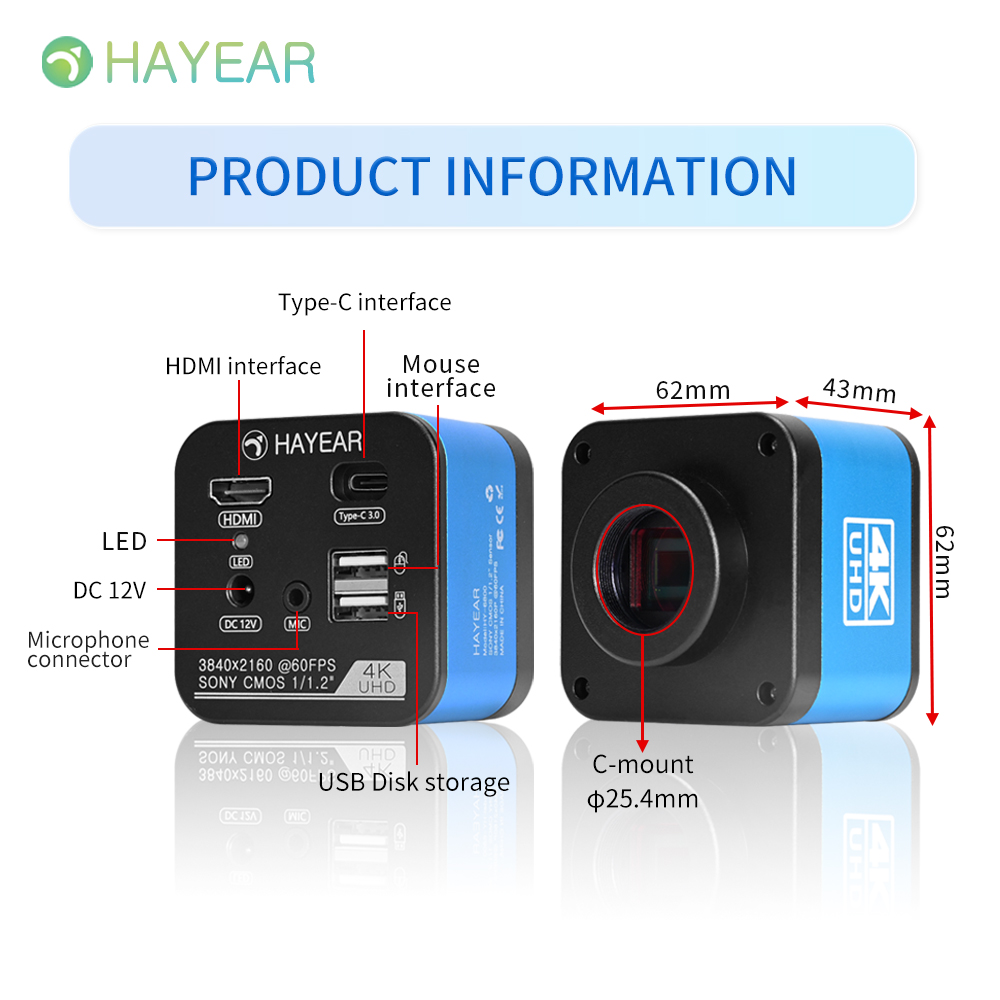

USB Port | Type-C 3.0 |
Simultaneous output | Supports HDMI and USB synchronous output |
Image scaling | 15X digital zoom in and zoom out |
Microphone | Support external dual channel microphone |
Lens interface | Standard C / CS |
Storage | USB Disk storage |
Language | Chinese, English, |
Working Voltage | DC 12V/ 1000mA |
Camera system | Linux |

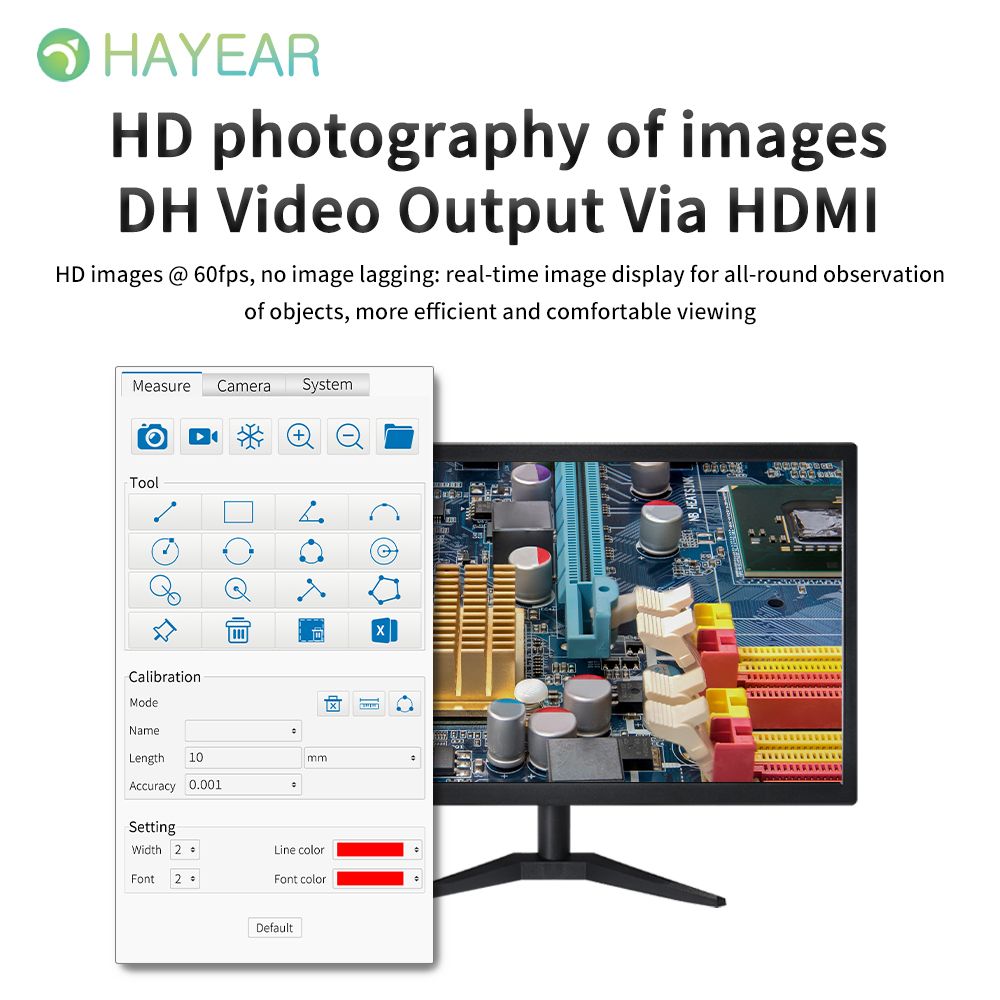

Marking Function | Point coordinates, crosshairs, coordinate systems, text annotations |
Length measurement | Straight line length, polyline length, curve length, parallel line distance, point line distance |
Center distance of circles | Radius fixed circle, two-point fixed circle, three-point fixed circle |
Geometric measurement | Line segment length, radius fixed circle, two-point fixed circle, three-point fixed circle, concentric circle |
Geometric area | Polygon, square |
USB measure | HAYEARmesurement software |
Shutter mode | progressive scanning |
Other functions | Support ONE PUSH WB/ Auto / Manual, Vertical rotation/horizontal mirroring/monochrome (black and white) image/image comparison/same screen comparison |
Model number | HY-180XA |
Mount | C-Mount zoom lens |
Eyepiece | 0.5X |
Zoom range | 0.7-4.5x continual zoom |
Zoom ratios | 6.5:1 |
Working distance | 100-150mm |
Magnification | 20X~180X(21.5 inches monitor) |
size | 170mm(long)*50mm(diameter) |
weight | 500g |

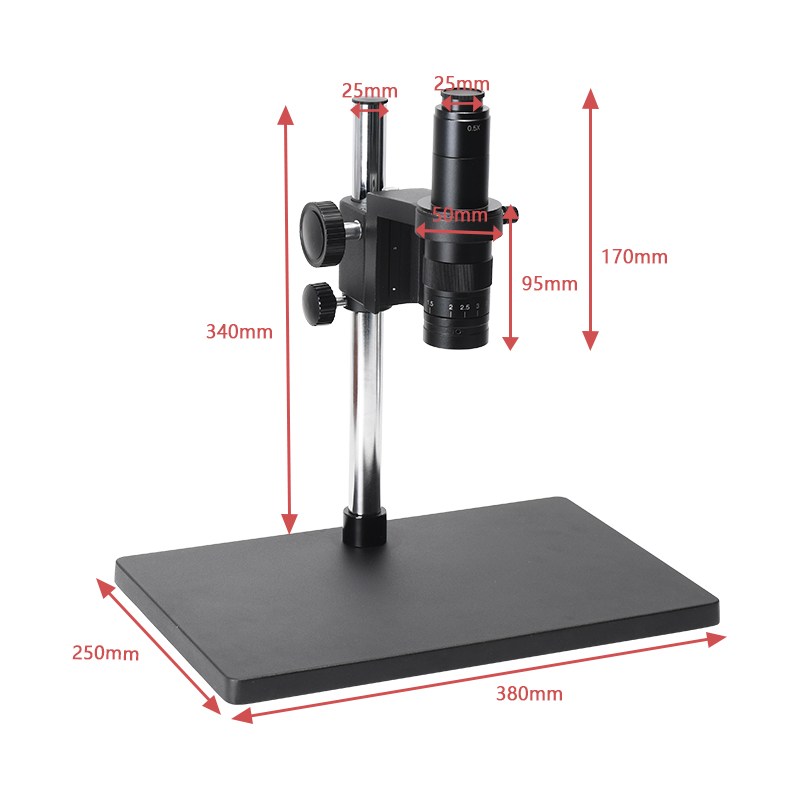

Model | HY-XDS-10A |
Total height | 340mm(can be extended to 650mm) |
Rod dia. | 25mm |
Focus rack dia. | 50mm |
Base size | 380mm×250mm |
Product material | Aluminum alloy |
Model | HY-209-144B |
Input voltage | 100-240V/50Hz,60Hz |
Output voltage | DC 12V 1A |
Brightness | 3000olx~4000olx(at working distance is 80mm) |
Internal diameter | 63.5mm |
The dimming range | 0~100% |
Working distance | 50-250mm |
Chimney | Full transparency |
Package size | 21×10×4.5cm |
Wide aperture diameter | Medium 60.5mm |
Maximum (power) output | 3W |
Color temperature | 6500K |
Power supply | US/EU/UK/AU optional |
Case color | Black/white |
