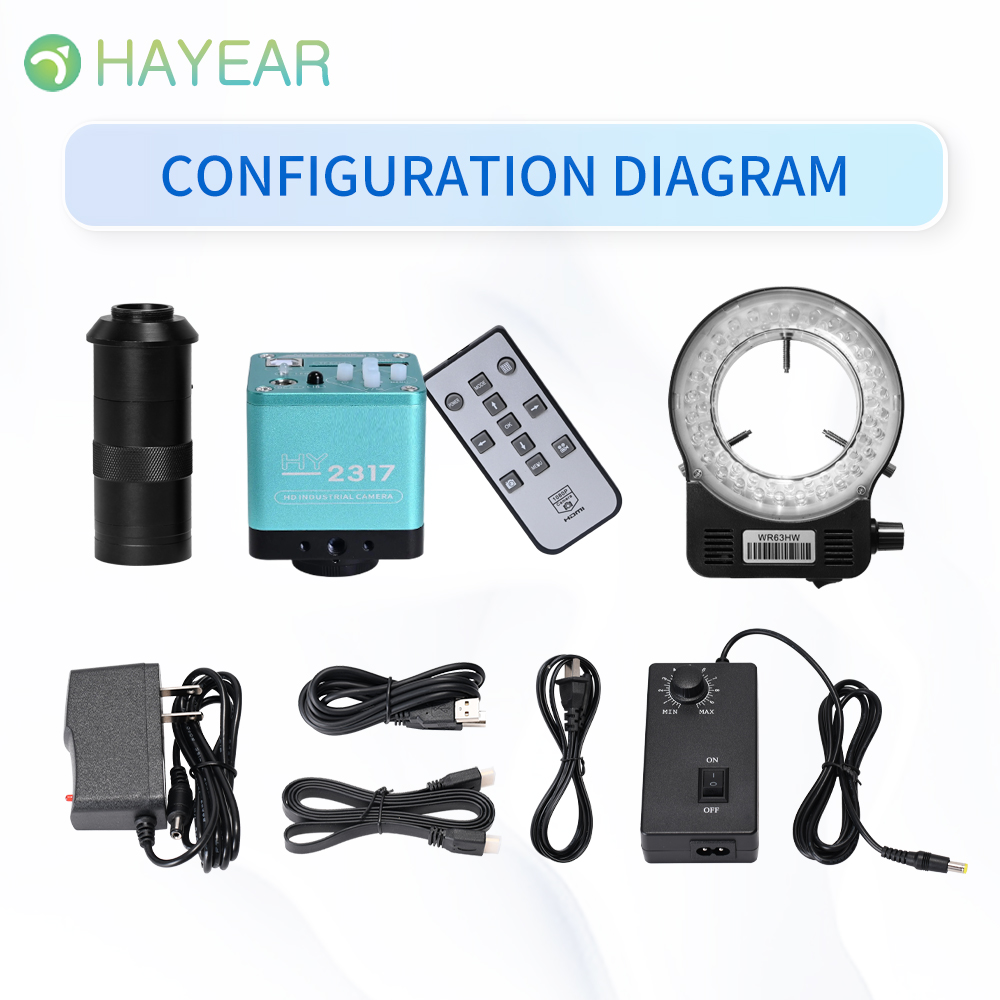

Model | HY-2137 Camera with HDMI USB2.0 two output |
Image sensor | 34 megapixel sensor 1/2.3 inch |
Effective pixel | 34 megapixel |
Pixel size | 1.43*1.43um |
Frame rate | 60fps |
Image format | JPG |
Image resolution | 6800*5100 (for TF Card) 1920 *1080 @ 60FPS(for TF card);1920x1080 (for USB) |
Video format | MP4(for TF card) |
Video recorder | 1920 *1080 @ 60fps (for TF Card) |
USB Video resolution | 1920 *1080 @ 30FPS |
Image sensor | 34 megapixel sensor 1/2.3 inch |
Effective pixel | 34 megapixel |
Pixel size | 1.43*1.43um |
Frame rate | 60fps |
Definition | FULL HD |
White balance | Auto/manual |
Digital magnification | 5 times digital zoom |
Brightness control | Auto/manual |
Color | R/G/B adjustable |
Freeze | Support |
OSD | English/Chinese/French/Spanish/Portuguese |
Film and record | Support |
Cross cursor | Support multi-color, size adjustable |
Transverse and vertical line | Support multi-color, 5 pcs of transverse lines/vertical lines, movable |
SNR | Support |
TF card interface | Max 64G |
HDMI interface | Standard HDMI output (Type A) |
Lens | C |
USB interface | Standard USB 2.0 interface (Type B) |
56 bright white LED bulbs ,6W, Adjust Bright |
100,000 hours of life |
Intense and focused shadow-free illumination |
Variable intensity control |
Power input: 100-240V, 50-60HZ, auto switching |
with Female thread M28*0.75 |
Suit for the dia of the lens: 16mm-46mm |

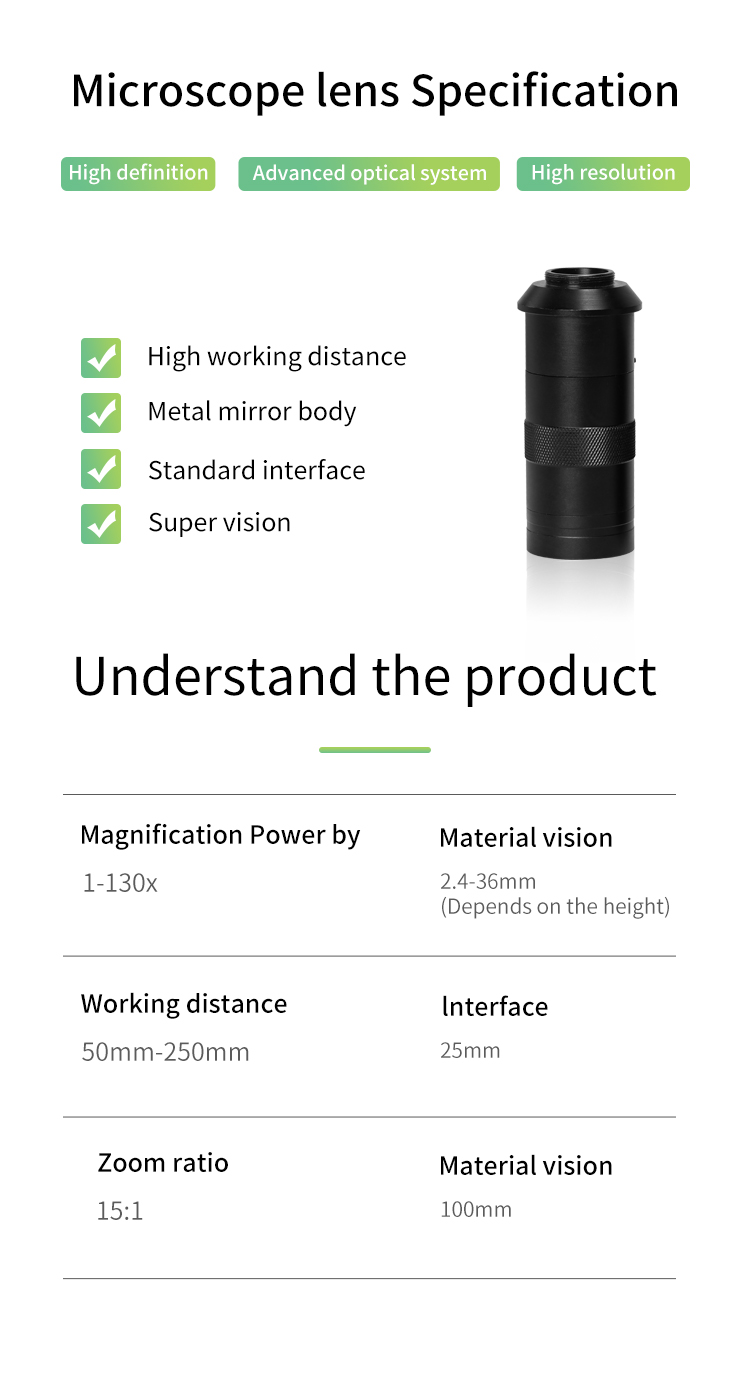

100X LENS
zoom c-mount Lens | |
Magnification Power by 0.12 - 2X (about 8 - 100X on the display) | |
Work distance | 55mm-130mm |
Visual field | 45mm-290mm |
Size | 115mm(L) * 40mm(DIA) |
Weight | 210g |
