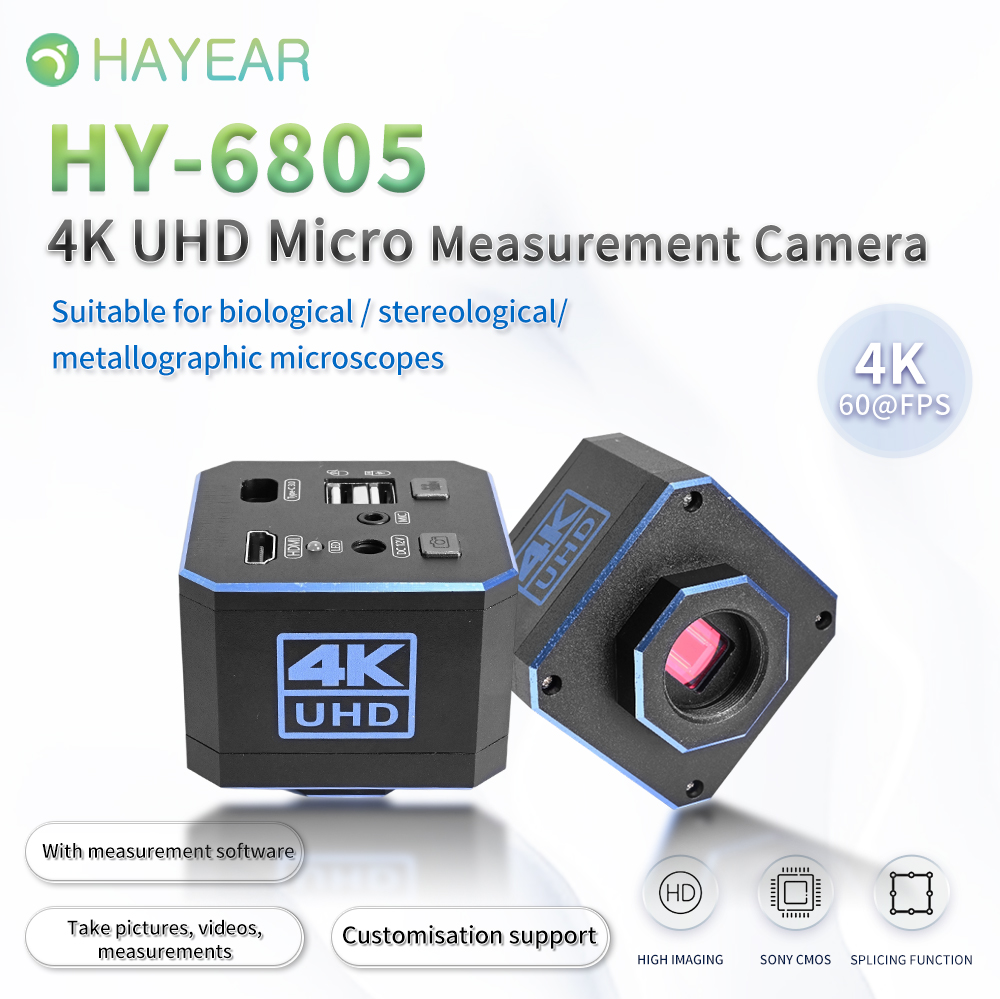

Model | HY-6805 |
Image Sensor | SONY CMOS SENSOR IMX678 1/1.8" |
Video Output | 4K/1080P FHD（Via HDMI ） |
Sensor Size | 1/1.8" 英寸 |
Pixel Size | 2.0 × 2.0μm |
Resolution | 3840×2160 @60FPS(4K) |
Frame Rate | 60@FPS |
Image resolution | 3840 × 2160 (8MP) |
USB output Resolution | 3840x2160@30FPS;1920x1080P@60FPS |

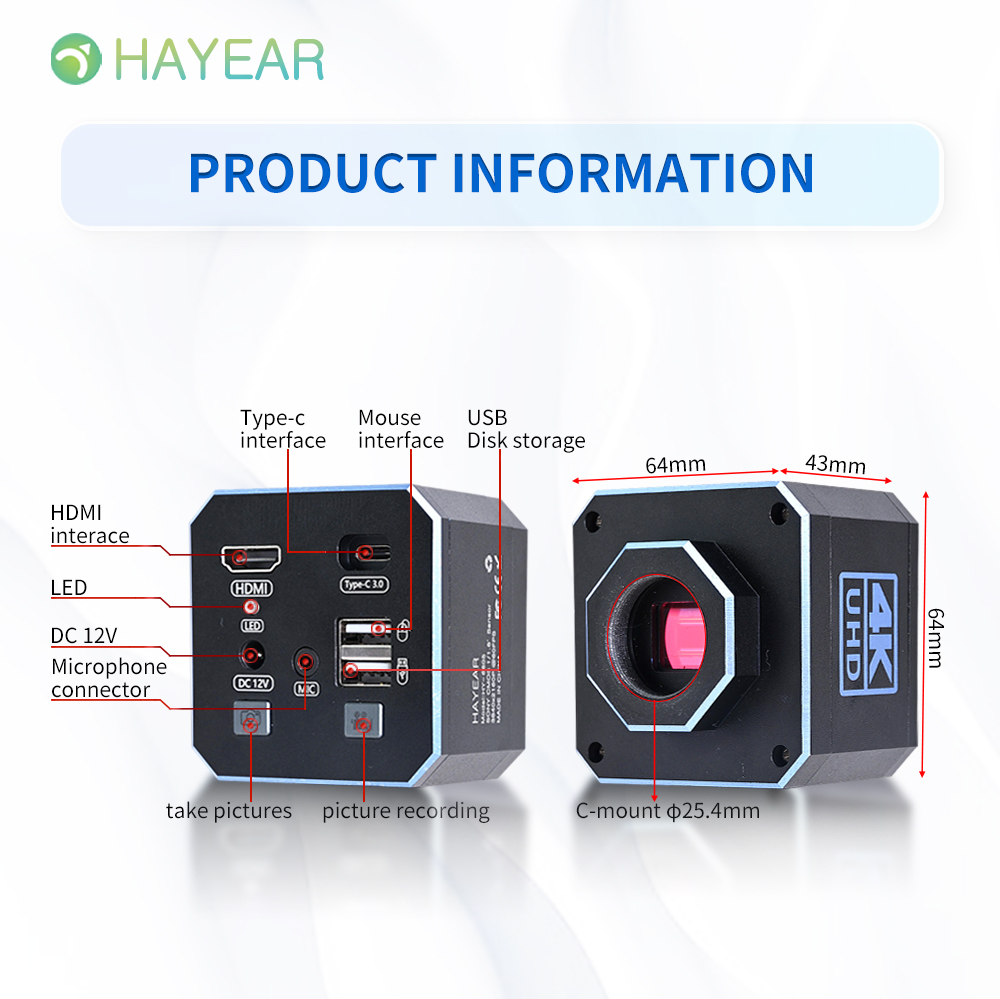

USB Port | Type-C 3.0 |

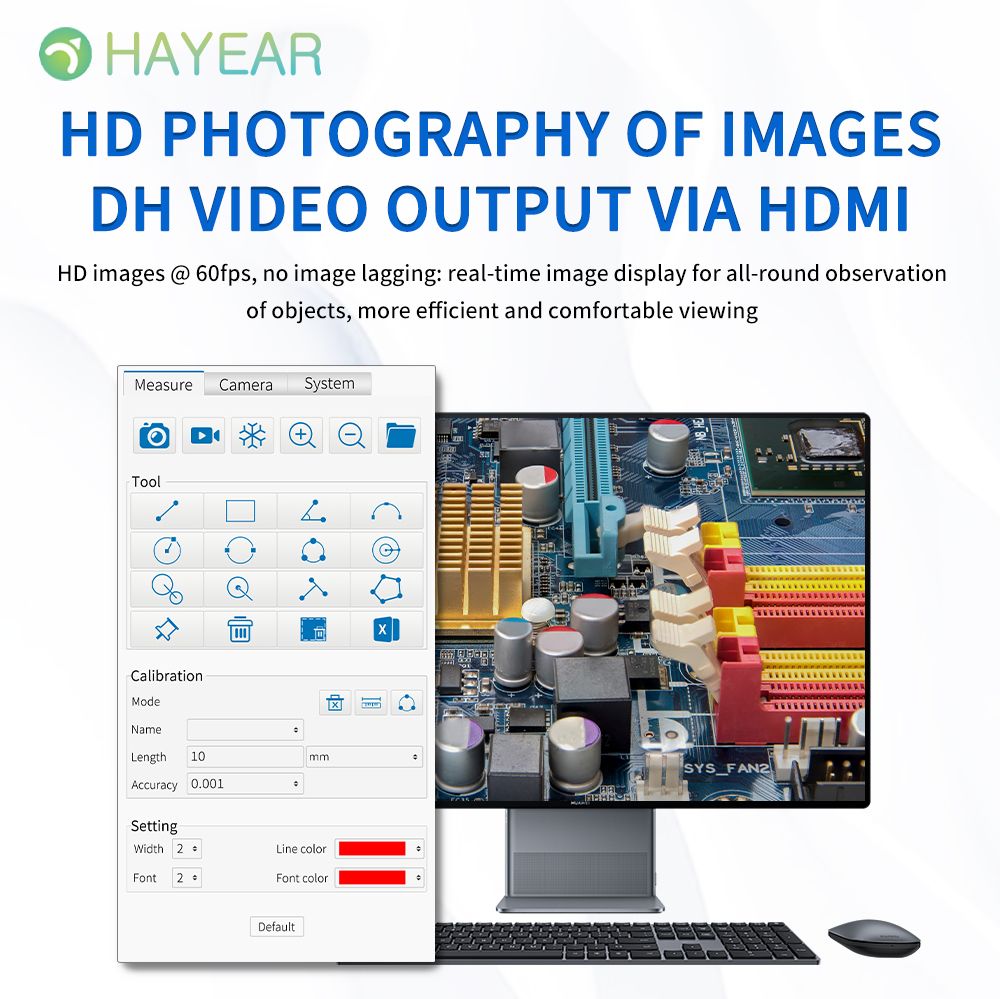

Simultaneous output | Supports HDMI and USB synchronous output |
Image scaling | 15X digital zoom in and zoom out |
Microphone | Support external dual channel microphone |
Lens interface | Standard C / CS |
Storage | USB Disk storage |
Language | Chinese, English, |
Working Voltage | DC 12V/2000mA |
Camera system | Linux |

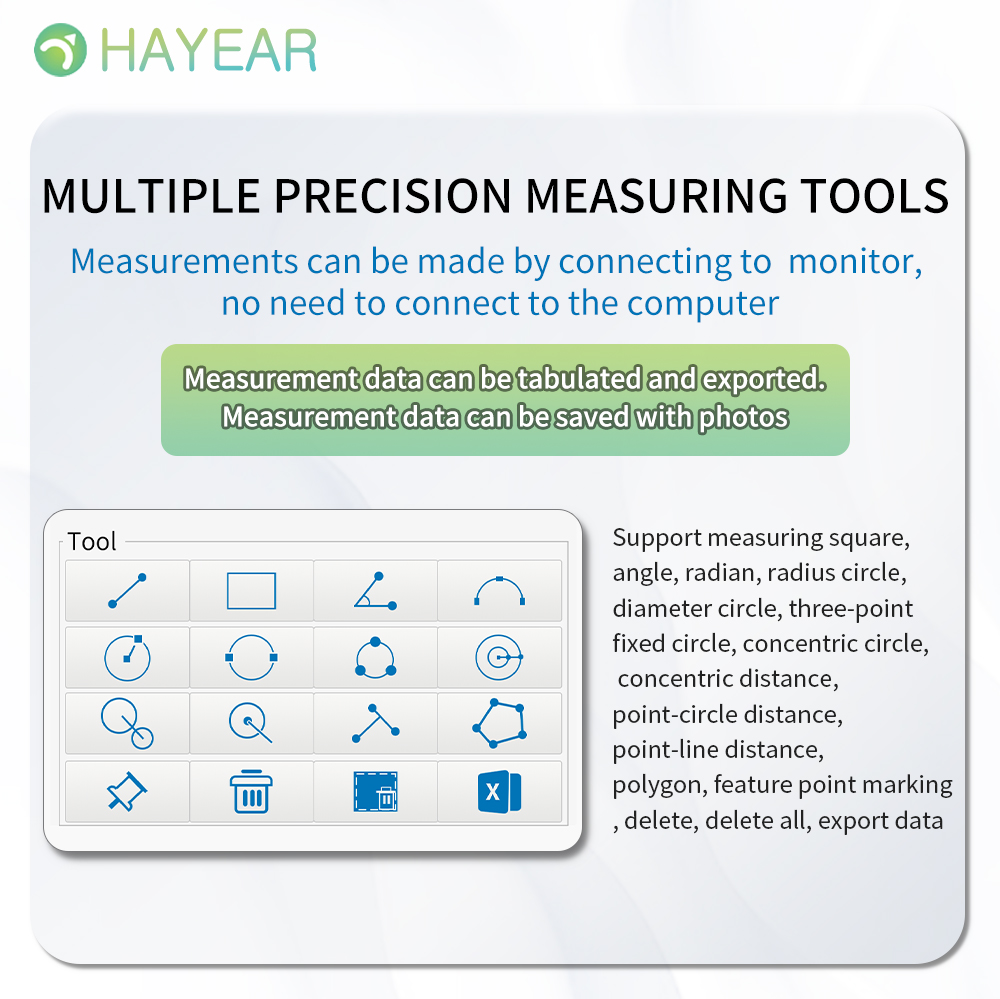

Marking Function | Point coordinates, crosshairs, coordinate systems, text annotations |
Length measurement | Straight line length, polyline length, curve length, parallel line distance, point line distance |
Center distance of circles | Radius fixed circle, two-point fixed circle, three-point fixed circle |
Geometric measurement | Line segment length, radius fixed circle, two-point fixed circle, three-point fixed circle, concentric circle |
Geometric area | Polygon, square |
Other functions | Support ONE PUSH WB/ Auto / Manual, Vertical rotation/horizontal mirroring/monochrome (black and white) image/image comparison/same screen comparison |

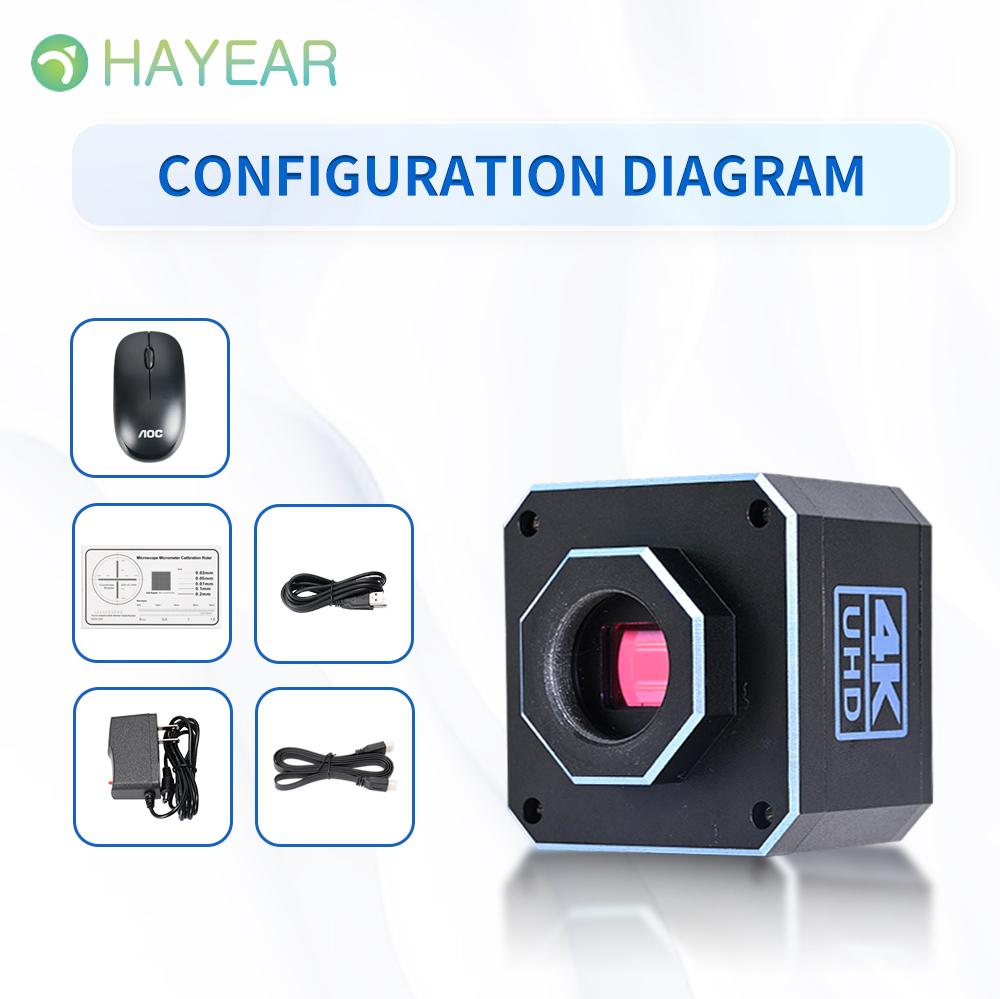

Standard fittings | Mouse, DC-12V power supply, HDMI cable |
