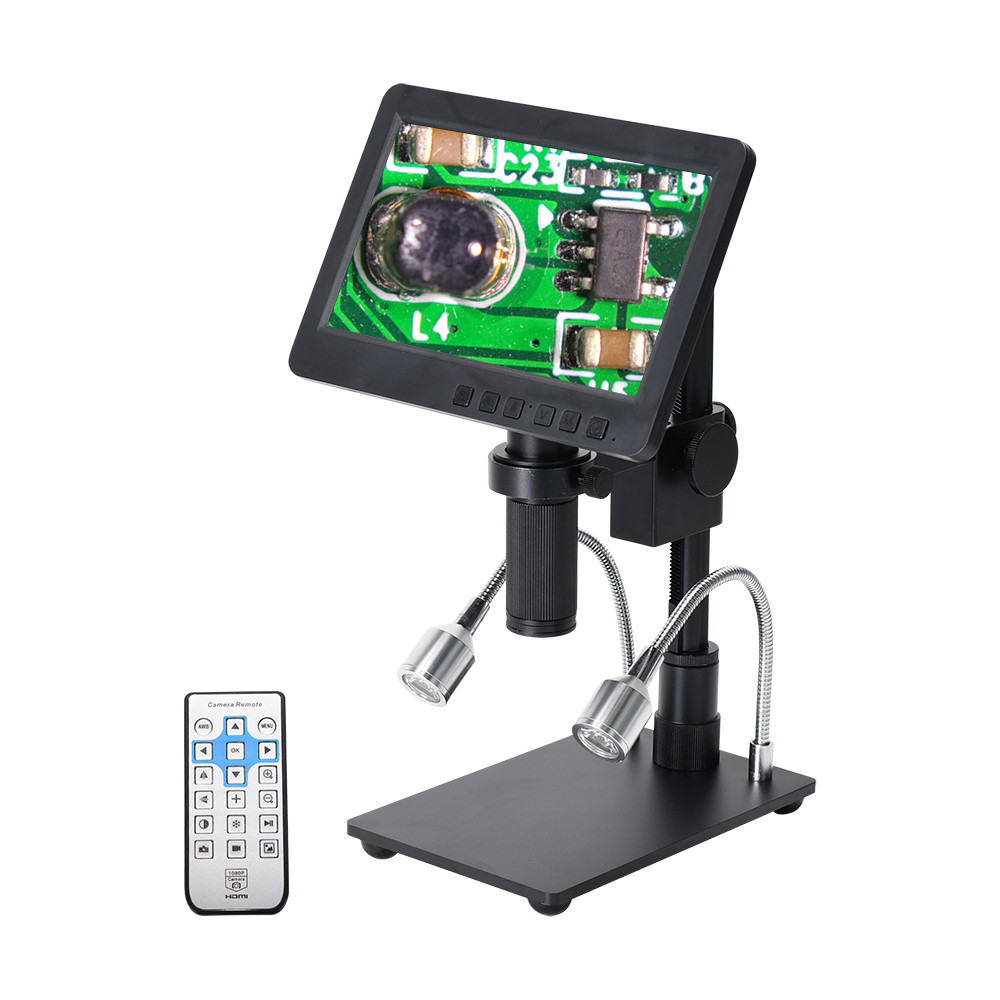

HAYEAR 7 inch Screen 26MP UHD Soldering Digital Microscope with 7" Inches Adjustable LCD Screen USB Video Microscope Camera Set HY-2070

Effective Pixels

SONY 26MP SONY IMX sensor

Pixel Size

2.9 × 2.9μm

Sensor Size

1/2.8”

Output Interface

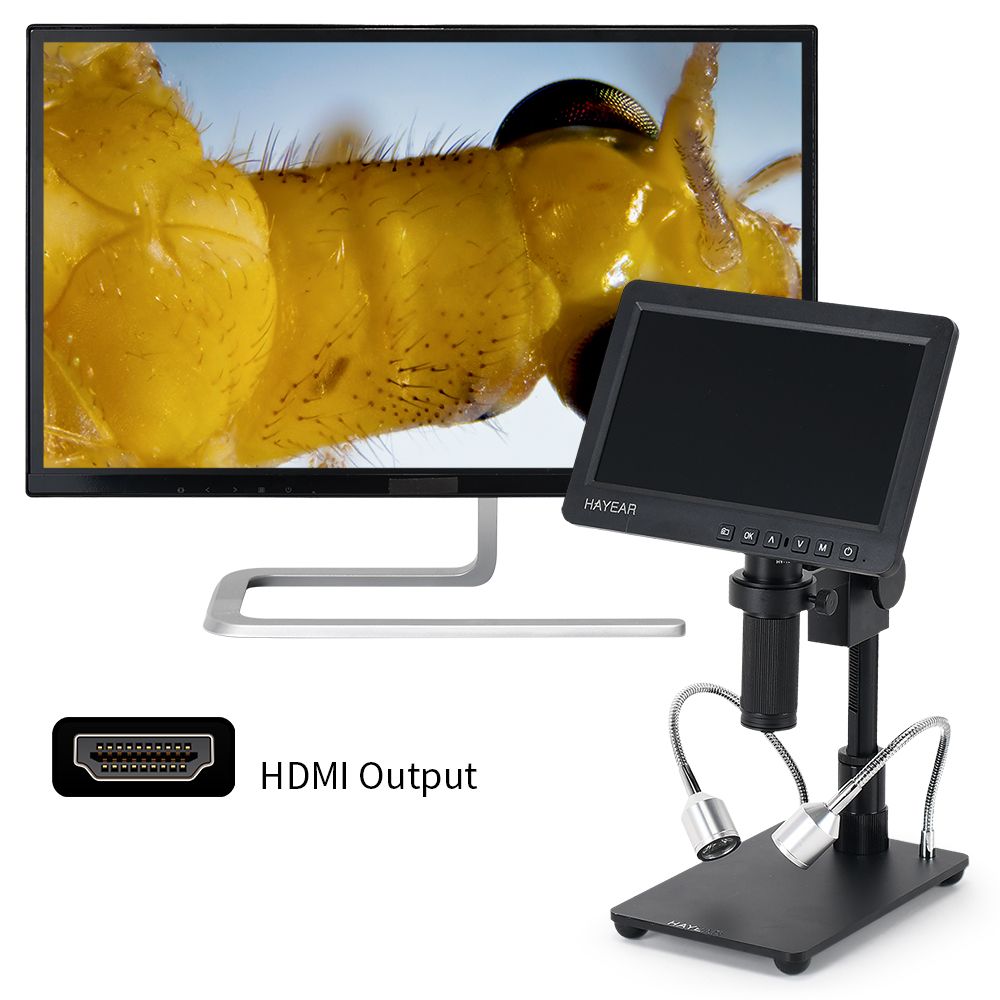

HDMI/USB Standard USB2.0 interface (Type B)

Resolution

1920x1080@60FPS（HDMI） 1920x1080@30FPS(USB)

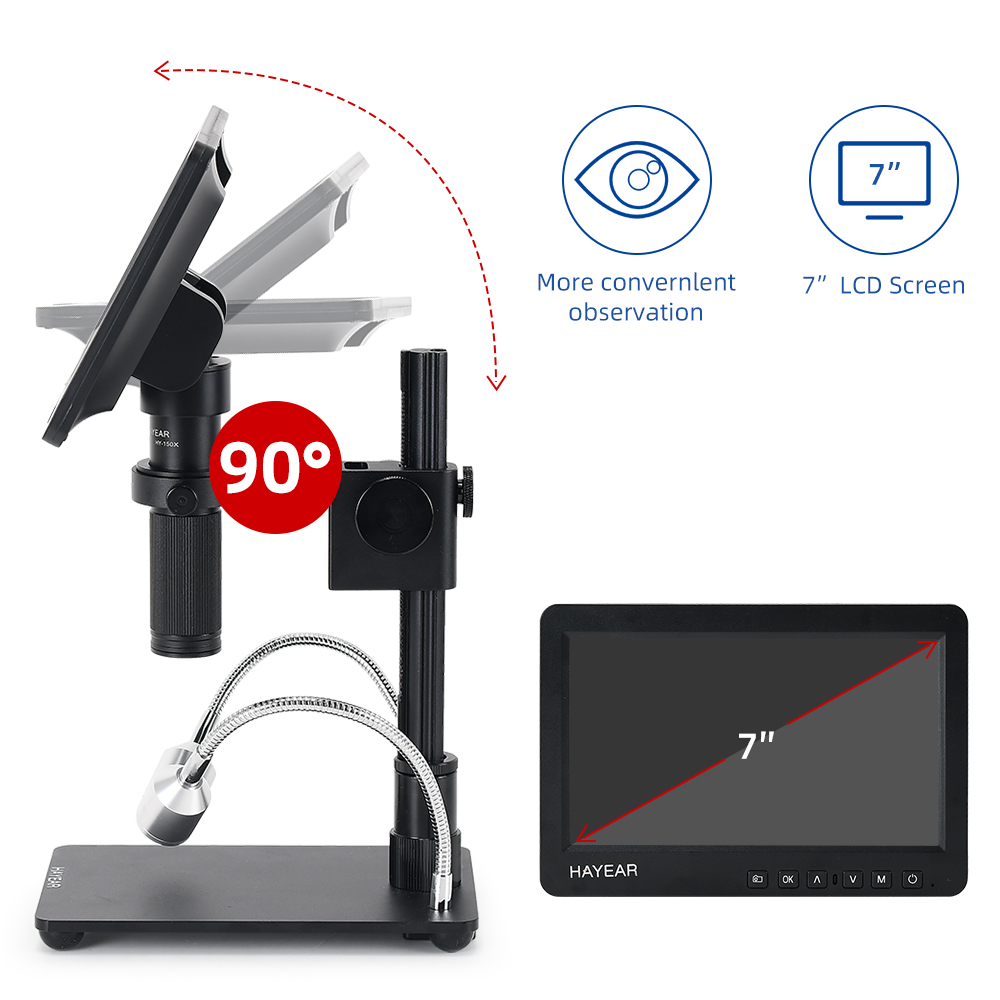

Screen Size

7.1 inch

Resolution output

16:9，4:3

Image Resolution

4608 x 2592

Frame rate

60@FPS

Color

R/G/B

Transverse and vertical line

Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions

Image Scaling

8-Fold zoom

Magnification

50X-1200X

Focus Range

5cm to 35cm

Lens Fype

C / CS

Lens focus range

5cm ~ ∞ cm

PC Support

Support Windows / Mac / Linux System; PC Software with Measuring Functio

Video /Image format

MP4 / JPEG

Language

EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP/DE

Input Voltage

12V/1500mA

WaveLength

400nm~1000nm

HDR

Support

Storage TF Card

128GB

Size

170x120x200mm

working temperature

-40°C~65°C
