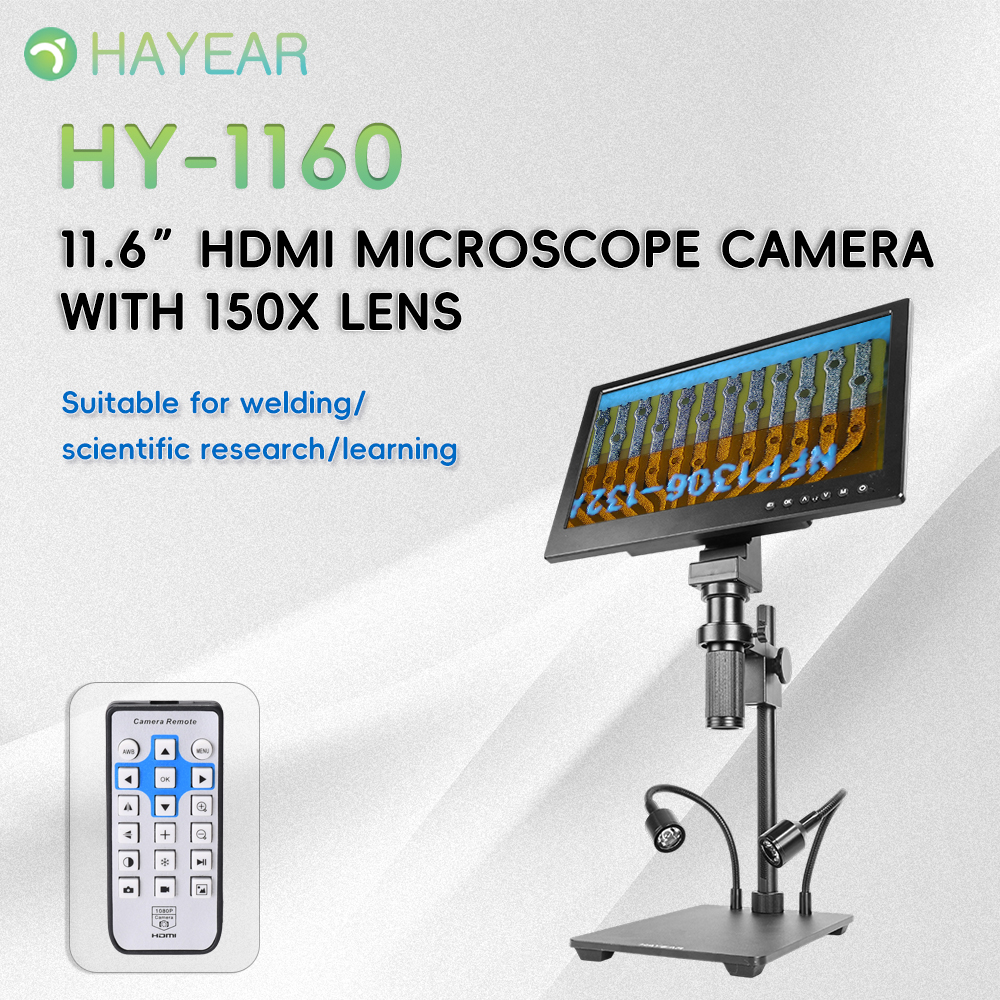

Model | HY-1160 |
Sensor | 26 Megapixel SONY IMX sensor |
Pixel Size | 2.9 × 2.9μm |
Sensor size | 1/2.8 inch |
Video output interface | USB 2.0 30@1920x1080P（HDMI function is not available for now） |
Resolution | 1920x1080@60FPS |

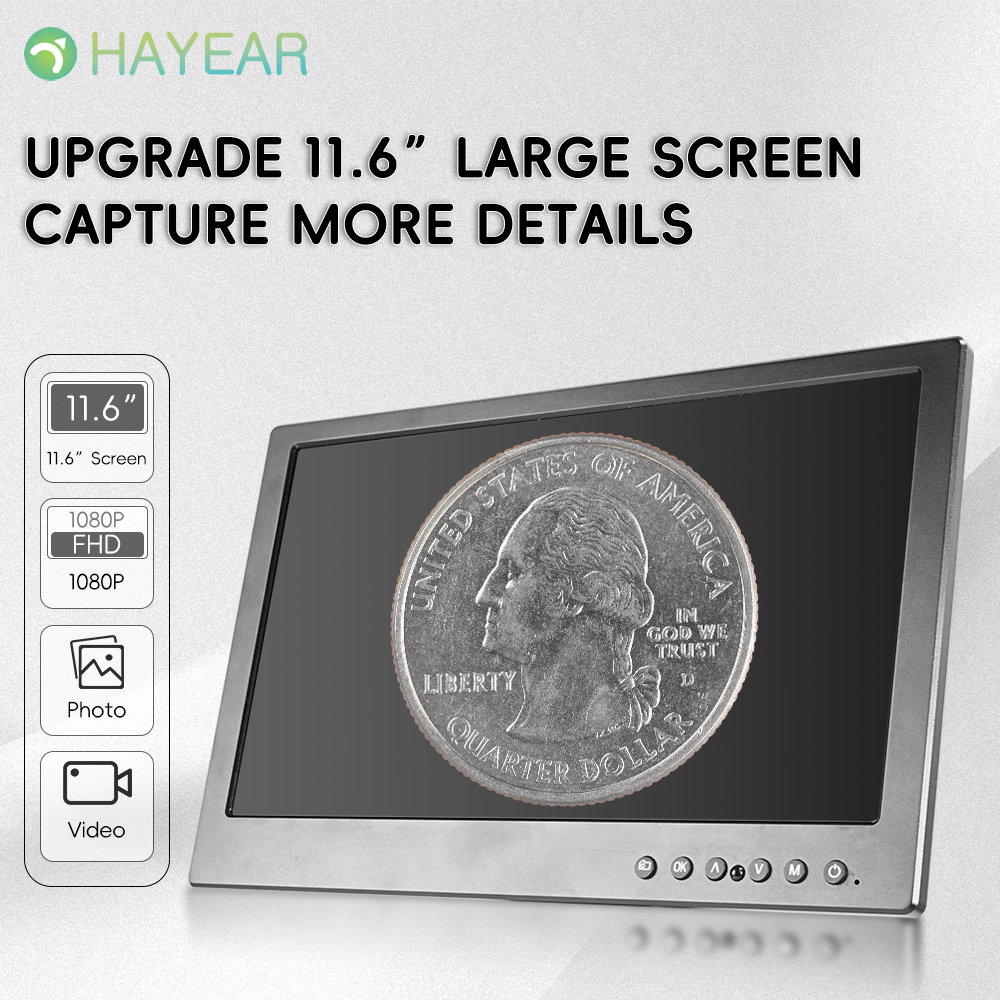

Screen size | 11.6 inch |
Video ratio | Support 16:9，4:3 mode |
LCD resolution | 1920x1080P(IPS) |
Still Image resolution | 4608 x 2592 |
Frame rate | 60@FPS |
Color | R/G/B support manual adjustment |
Cross line | 5 transverse lines/vertical lines, Color and size of line can be adjust, cross line has scale |
Digital zoom | 7.0X digital zoom |
Sensitive | Strong (Can be used without extra light source) |
Lens type | Standard C / CS interface |
Dynamic range | 60dB |
PC systems | Support Windows XP/7/8/10/11 with measurement function software |
Picture format | JPEG |
Language | Chinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish |
Working voltage | 12V/1.5A |
Spectral Response (Wavelength) | 400nm~1000nm |
White balance | Support manual/auto |
SNR | 45dB |
Mirror | Support right/left up/down |
Monochrome | Support |
Storage | TF Card, Maximum support 128GB |
Working temperature | -40°C~65°C |

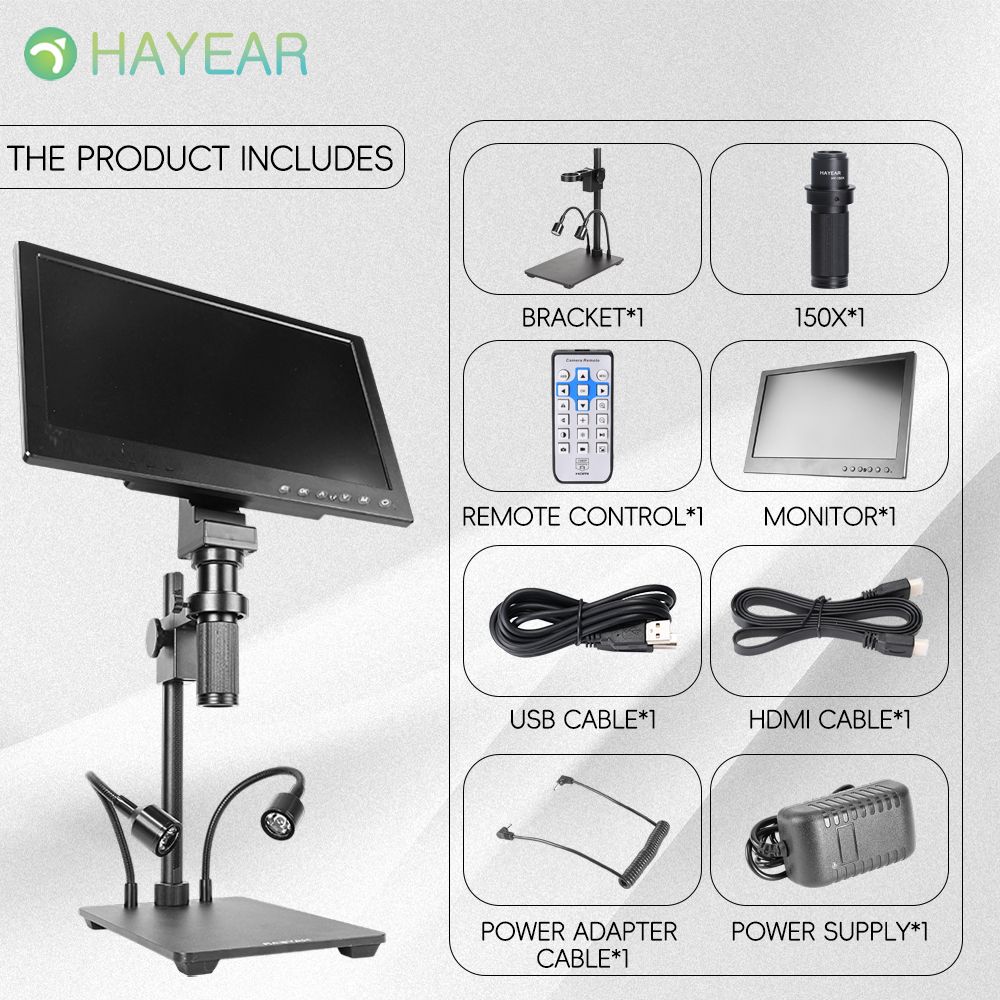

Package details | 33x25x8cm, 1.25 KG |
