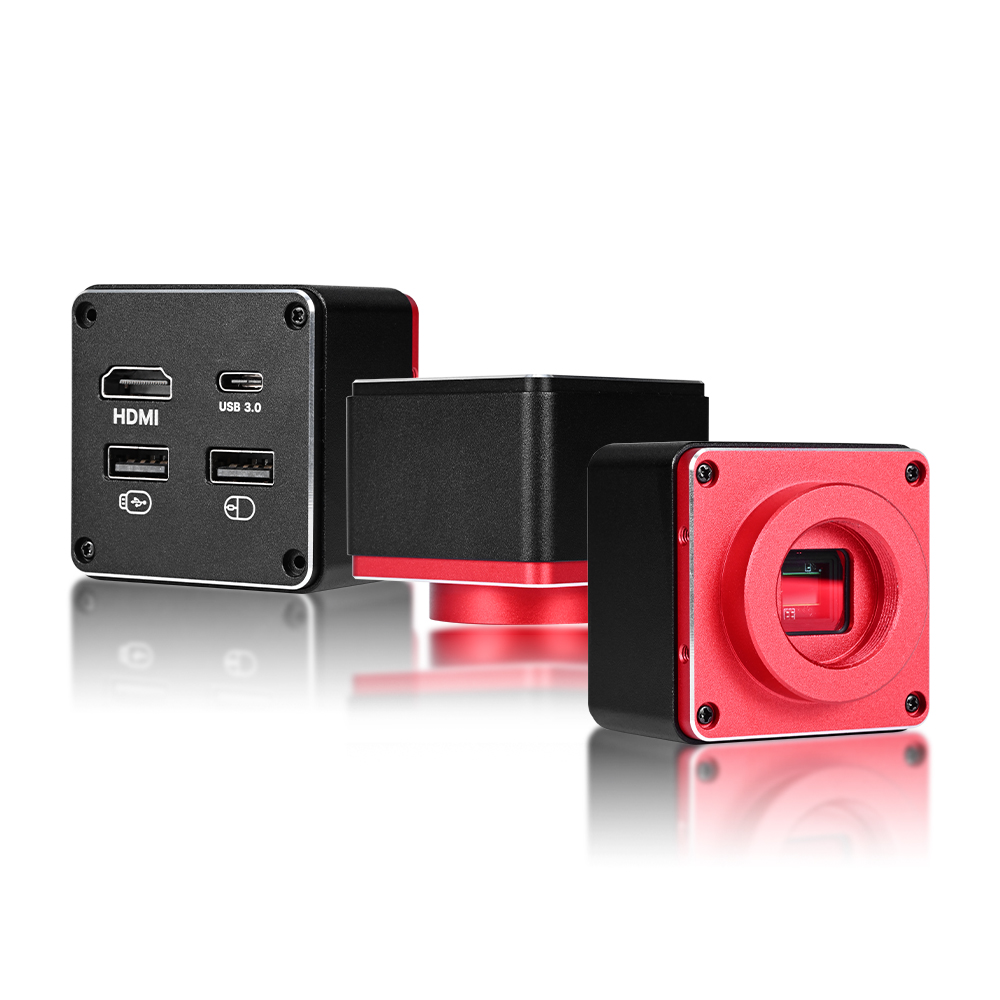

Hayear 4K 60FPS 1/1.8" CMOS Industrial C-Mount Camera Microscope Measurement Camera  For Digital Image Acquisition And Electronics Soldering Repair

Video Output

4K/1080P Full HD (HDMI Output)

Sensor Size

1/1.8" Inch

Pixel Size

2.0 × 2.0μm

Resolution

3840×2160 @60FPS(4K)

Frame Rate

60@FPS

Photo Resolution

3840 × 2160  (8MP)

USB Output Resolution

3840x2160@60FPS;1920x1080P@60FPS

HDMI port

1 HDMI 2.0 port

USB Port

1 USB 3.0 (Type-C) port for control and data transfer

2 USB 2.0 ports for a mouse or USB flash drive; can be daisy-chained via the USB interface (external serial port)

Dual Output

Supports simultaneous HDMI and USB output

Image Scaling

15X Digital Zoom (In/Out)

shutter type

Electronic Rolling Shutter

Lens Mount

Standard C/CS Mount

MAX SNR

39dB

ISO

100-25600

Noise Reduction

Supports 3DNR, again, range 0–82 dB

Storage

Supports 512GB USB flash drives (requires a USB flash drive with a write speed of at least 100M)

Language Settings

Chinese, English

Operating Voltage

DC 5V/700mA

Camera System

Linux 5.19.system

Labeling Function

Point Coordinates, Cross hairs, Coordinate System, Text Annotations

Length Measurement

Straight line length, poly line length, curve length, parallel line distance, point line distance, radius fixed circle, two-point fixed circle, three-point fixed circle

Geometric Measurement

Line segment length, radius fixed circle, two-point fixed circle, three-point fixed circle, concentric circle, polygon, square

Other Features

Support one click white balance/automatic/manual white balance/vertical rotation/horizontal mirroring/monochrome (black and white) image/image comparison/same screen comparison

Image Measurement

Support using the HAYEAR software on PC

Material

Aviation-Grade Aluminum Alloy

Operating Temperature

-20℃ ~ 75℃
