Full Set 16MP Industrial Microscope Camera HDMI USB Outputs with 180X C-mount Lens

350 Reviews

Model : HY-3307B

SKU: 1812200817


US $238.00

- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time


1:PC Support : Windows XP/7/8/10 system
2:For USB
output, the white balance, exposure and color adjustment are automatic,
they can't be adjusted. For HDMI output, the functions can only be
adjusted while connecting with monitor, if you connect the camera with
computer, the functions also can not be adjusted.
3:When use USB
connection, please make sure no TF card in the camera ,TF card storage
is only for HDMI output. USB output will be storage in PC.

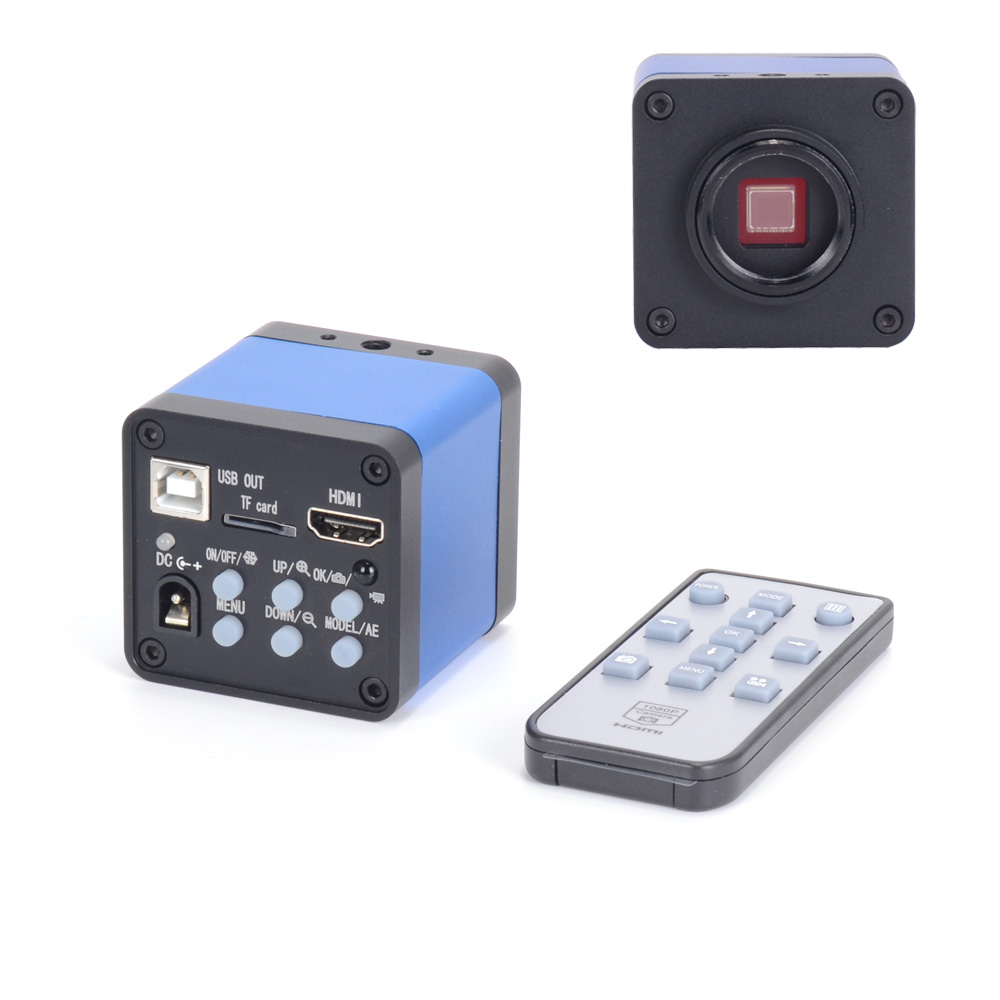

Microscope Camera:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4608*3456 (for TF card)  1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder:  1920*1080@60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions


Image sensor:16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60FPS
Definition:FULL HD
Lens:CS for test, custom provide
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 128G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)


Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 500g

60 LED Light:

Light source: 60pcs LED
Input Voltage: AC90-240V
Output Voltage: DC12V
Output frequency: 4.5W
Working Distance: 40-160mm
Illumination: 30000LUX-35000LUX
color temperature: 6500K-7000K
brightness range control: 0% - 100%
light Color: cool white
Product Light:  >30000HRS
Valid optical length: 75mm
Valid optical path: 30mm
Power box size: 110 x 60 x 30mm
Material of power box: Plastic
Color: Black
Inside dia. Of Ring Light: 61.5mm
Outside dia. Of Ring Light: 94mm
Inside dia. Of ring holder: 26mm
Outside dia. Of ring holder: 45mm

8 Inch Monitor:

Panel Size: 8 inches
Physical Resolution: 1024x768
Display Ratio: 4: 3
Display Color: 16.7M
Point Distance (mm): 0.264
Brightness (nits): 250cd / ㎡
Contrast Ratio: 300: 1
View (Up / Down / Left / Right): 160 ° / 160 °
Response Time: 6ms
Power Supply DC: 12V 1A
Field Frequency: 50Hz, 60Hz, 70Hz
Signal Interface: AVCx1, BNCx1, VGAx1, HDMIx1
Color Format: PAL / NTSC / SECAM
Menu Operation OSD: keypad / remote control
Menu Language (optional): Simplified Chinese, Traditional Chinese, English, Russian, French, Spainish, German, Italian
Installation: Base Support / Wall

Package Including:

1 x microscope camera with power supply
1 x USB line
1 x 180X Zoom c-mount lens
1 x camera stand
1 x 60-LED ring light with power supply
1 x 8 inch monitor
