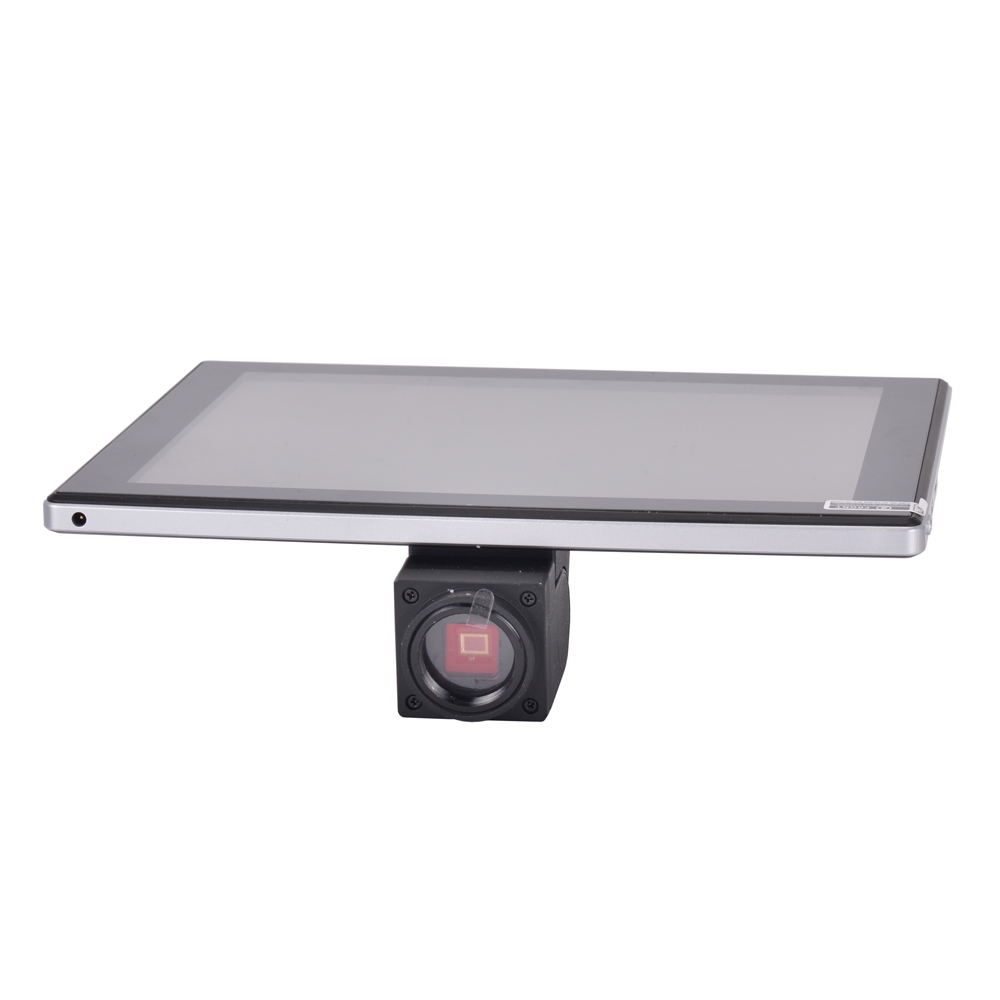

9.7 Inches Andriod System Tablet 5MP Industrial Microscope Camera HY-5699

288 Reviews

Model : HY-5699

SKU: 202309231224


US $334.00

- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time


Sensor size: 1/2.5 inch

Display size: 9.7 inches

Effective pixels: 2592(H)*1944(V), 5.0MP pixels

Resolution: 30fps@1024*768

Output interface: USB2.0, HDMI, TF card, built-in WIFI

Pixel size: 2.2μm×2.2μm

Power supply: DC-12V/2A


UI interface: Full digital, mouse operation, user-friendly settings

Marking function: Point coordinates, crosshairs, coordinate system, text annotation

Length measurement: straight line length, broken line length, curve length, parallel line distance, point line distance

Distance between two circle centers: Radius fixed circle, two-point fixed circle, three-point fixed circle

Geometric measurement: line segment length, radius fixed circle, two-point fixed circle, three-point fixed circle, concentric circle

Geometric area: polygon, square

Image snapshot: supports 5 million static photos

Video recording: support 1080P recording

Measuring system: S-eye

Dual-core architecture embedded CPU

Supports 1080p resolution and full-duplex video codec with high frame rate

Quad-core ARM Mali-400 MP GPU, supporting OpenGL ES 1.1/2.0 and OpenVG 1.1

Support Anroid 4.2 (above) operating system

Maximum frequency: 1.6GHz

real-time display

Support multiple memory types , including DDRIII, DDRII and LPDDRII

Built-in 2GB memory

Externally expandable SD card

Camera video interface

Built-in UVC driver, can connect external USB camera

The interface supports multiple input formats: RAW, RGB and YUV

When using an Android tablet, it supports 5 MP CMOS digital imaging, 10-30 frames per second (1024*768 and other resolutions)

White balance adjustment and image correction

Man-machine interface

9.7 Inches (Diagonal) IPS liquid crystal display, resolution 1024*768

Support keyboard and mouse input

Five-point touch capacitive touch screen

Hardware switch key: power switch

Expansion Card

Support large capacity SD memory card, maximum support 32G C10 high speed card

Peripheral interface

USB 2.0 HOST interface at the bottom, USB A and Mini USB in parallel

USB 2.0 OTG port on the bottom

Support HDMI HD interface

Network module

Support WI-FI wireless access

Support Bluetooth


Power management

Power mode: normal, hibernation (lock screen) and shutdown, the system default no-operation hibernation time is 20 days

Support some modules to be turned off to reduce power consumption
