HAYEAR Simul-focal 7X-45X Zoom Stereo HDMI 14MP Industry Binocular Microscope Head Camera 144 LED Light 0.5X-2X Auxiliary Objective Lens

362 Reviews

Model :

SKU: 1811124910


US $348.00

- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time


For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.

For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


TF card storage is only for HDMI output. USB output will be storaged in PC.

This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.


7X-45X zoom magnification power with crisp sharp images

Super widefield high-eyepoint optics

widefield of view

4" (100mm) working distance

Sturdy all-metal pillar stand

Powerful 56-LED ring light with dimmer


An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light

7x-45x super wide zoom magnification power

Bright cool light 144-LED illumination system

High resolution with great flatness and contrast, giving sharp and clear images

Binocular head with 45 degree inclined 360 degree swiveling eye tubes

Sharp stereo erect images with a wide field of view

Crystal clear original true color microscope images

Dual eye tubes with adjustable diopters

Large working distance

Sturdy all-metal table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements

Precise ground glass lenses

Full metal chrome-plated mechanical components

Adjustable interpupillary distance

Rubber eye-guards included


Head: 360 degree rotatable 45 degree inclined binocular

Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM

Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses

Working Distance: 4" (100mm)

Diopter Adjustment: +/- 5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Round Plate: 3-3/4" (95mm) in diameter

Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)

Illumination: 144-LED Ring Light

Power Input: 110-240V, 50-60HZ, Automatic Switching

Accessories: Paired eye-caps

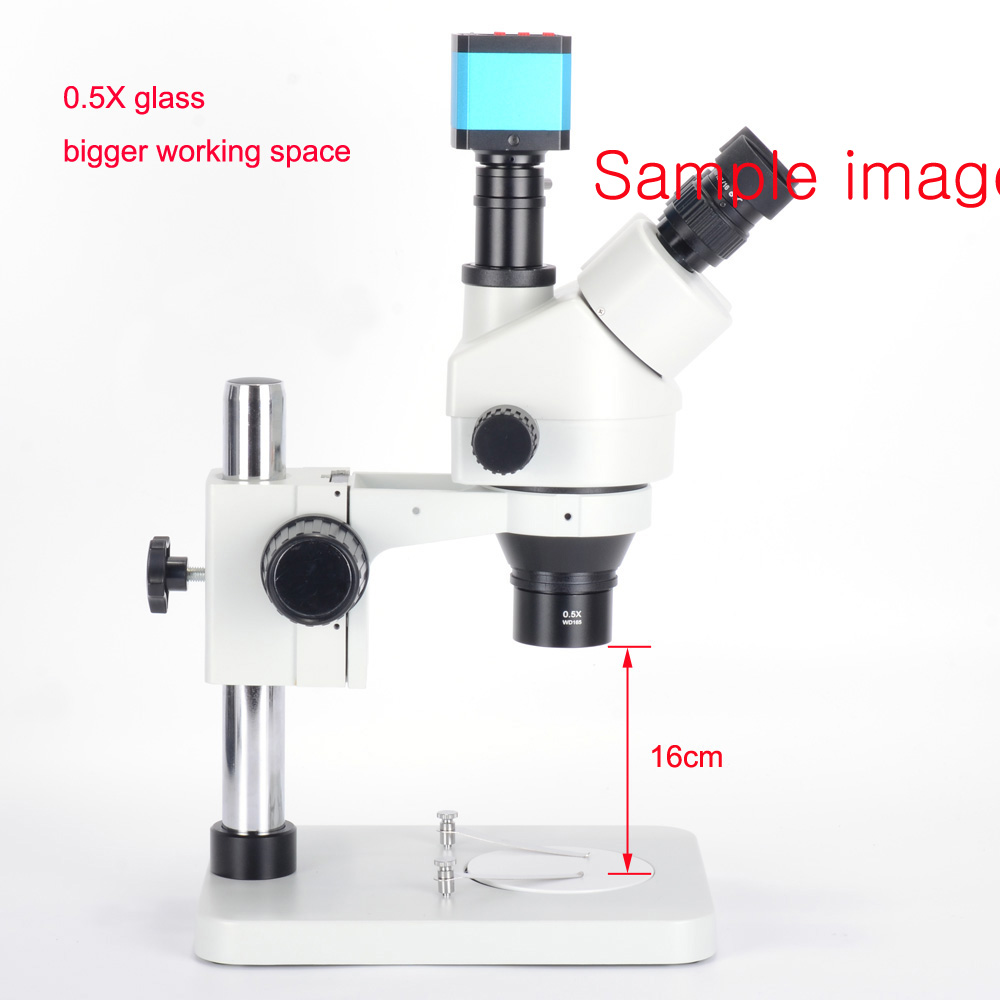

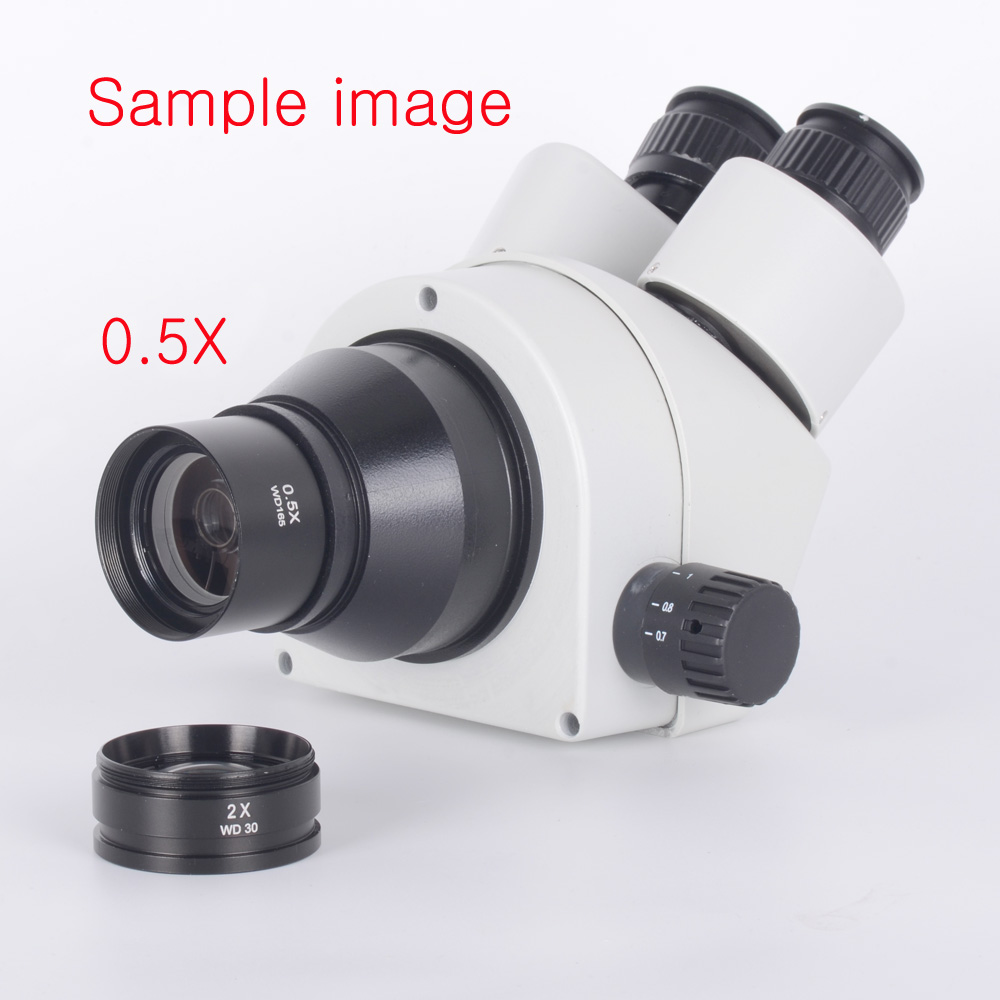

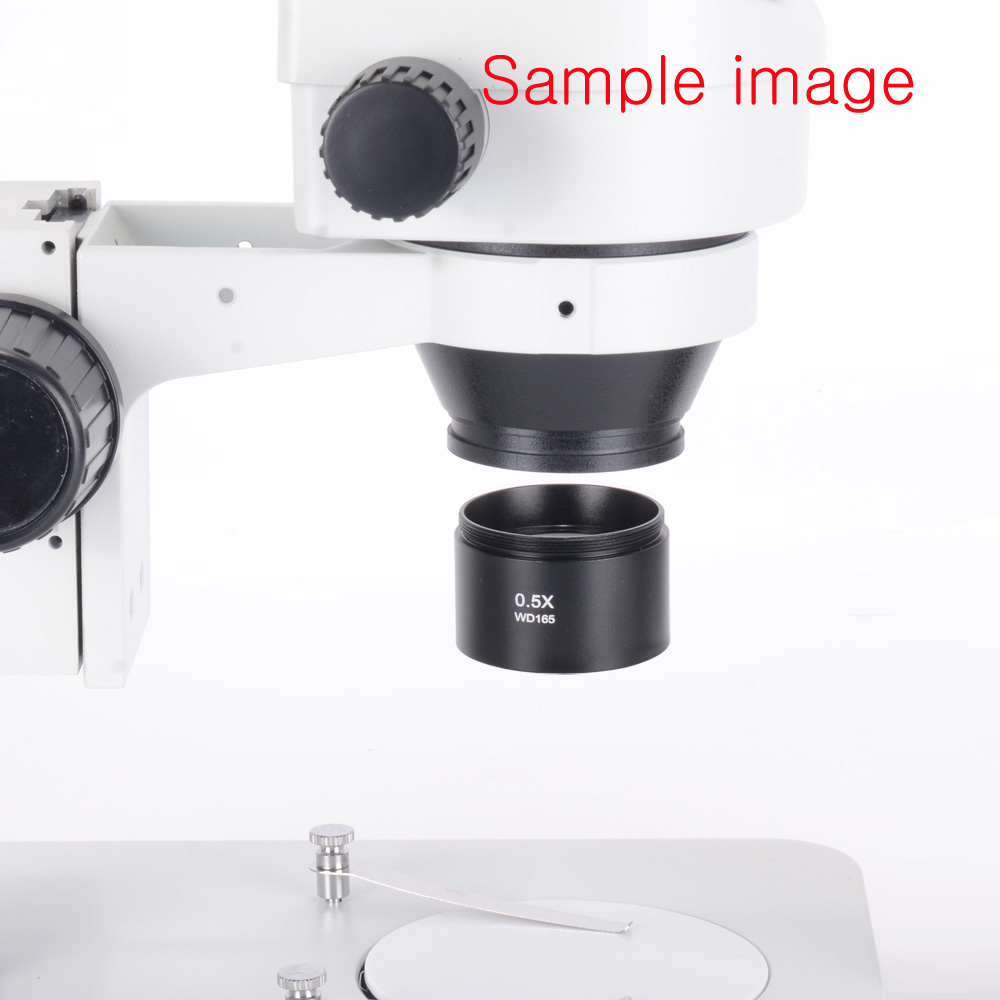

Objective Lens:

0.5X/ 2.0X Magnification Power

WD 165mm/ WD30mm

Doubling Total Magnification power of your Microscope and reduce the focus length

1-7/8" (48mm) Mounting Thread

Camera Features:

Model: Camera with HDMI USB2.0 two output

Image format: jpg

Image resolution: 4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card)

Video format: MP4

Video recorder: 1920*1080 @ 60FPS (for TF Card)

USB Video resolution: 1920*1080 @ 30FPS

White Balance: Auto

Light: Auto

Color: Color

Negative: Support

Morror: Left/right,Up/Down

Freeze: Support

OSD: English/Chinese/French/Spanish/Portuguese

Line: different color,5 horizontal line , 5 vertical line,any positions

Camera Specification:

Image sensor:14 megapixel Panasonic sensor 1/2.3 inch

Effective pixel:14 megapixel

Pixel size:1.43x1.43um

Frame rate:60fps

Definition:FULL HD


Lens:CS for test, custom provide

Video format: MP4

Encode: H.264 (High Profile)

Digital magnification:5 times digital zoom

Brightness control:Auto/manual

Color:R/G/B adjustable

Film and record:Support

Cross cursor:Support multi-color, size adjustable

Transverse and vertical line:

Support multi-color, 5 pcs of transverse lines/vertical lines, movable

Different color,5 horizontal line , 5 vertical line,any positions


TF card interface:Max 64G

HDMI interface:Standard HDMI output (Type A)


USB interface:Standard usb2.0 interface (Type B)

It build in digital crosshairs and color control, add line in the pictures, freeze

Supply USB2.0,HDMI HD video,Two output ports, we sell much to the industry factory, they can see the problems directly in the Monitor via the camera.

Package including:

1 x binocular stereo zoom head

1 x pair of super WF 10X20mm eyepieces

1 x camera with power adapter

1 x usb cable

1 x remote control

1 x 144-LED ring light with power adapter

1 x pillar table stand

1 x focusing rack

1 x 0.5X objective lens

1 x 2X objective lens
