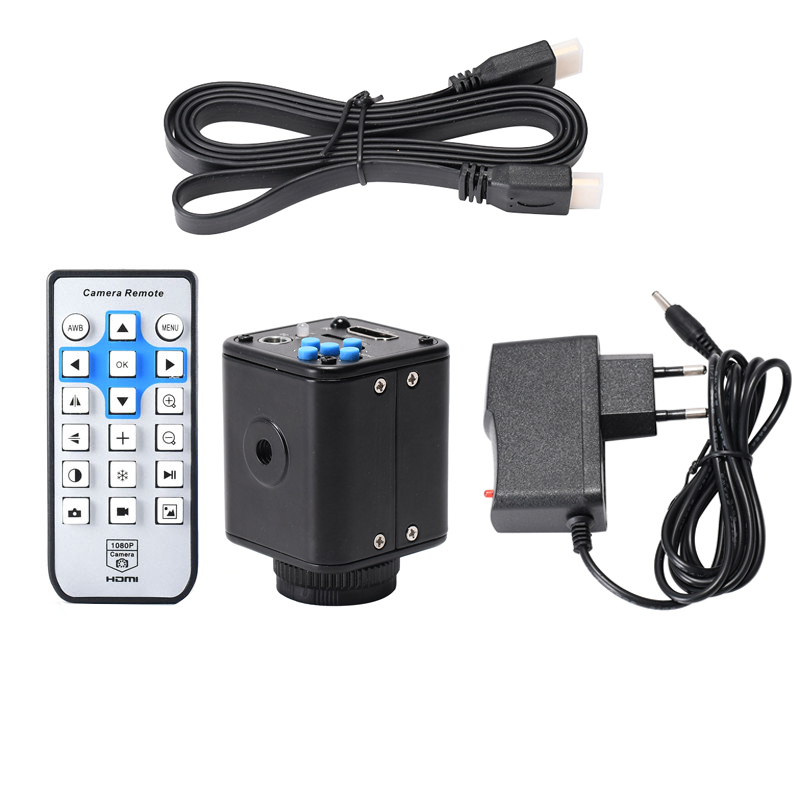

Camera Specification:
Item Type | Microscope Camera |
Module | HY-5199-7045W |
Sensor | 24MP CMOS |
Optical Format | 1/2.9inch |
Pixel Size | 2.85μmx2.85μm |
Interface | HDMI (Type A). Small memory card |
HDMI Image Resolution | 24MP |
Video Resolution | 2K at 60FPS 1080p at 60FPS |
HDMI Resolution | 1920 x 1080p |
HDMI Scale | Support 4:3,16: 9 screen |
Small Memory Card | Up to 64GB (not included) |
AWB | AWB color correction/automatic/manual |
R.G.B value setting independent | |
Exposure | Automatic/manual. AE value can be set |
Cross Line | 8 lines, color, width, position can be set |
Scale Line | 2 lines. |
Dotted Line | 2 lines, color, width, position can be set |
Sharpness Contrast Color Gain | Support |
Mono Negative Film | Support |
Mirror | Horizontal and vertical mirror |
Language | English/Simplified Chinese/French/Spanish/Japanese/German And other languages. |
Digital Zoom | Support |
Infrared Remote Control | Support |
Voltage Input | DC 12V |
Power Supply Voltage | |
Input | AC100-240V |
Output | DC12V |
Power Consumption | Maximum 0.15W 12V, 0.12A |
Lens Interface | C/CS port |
Remote Control Battery | 1 x 2302 button battery (delivered without battery) |

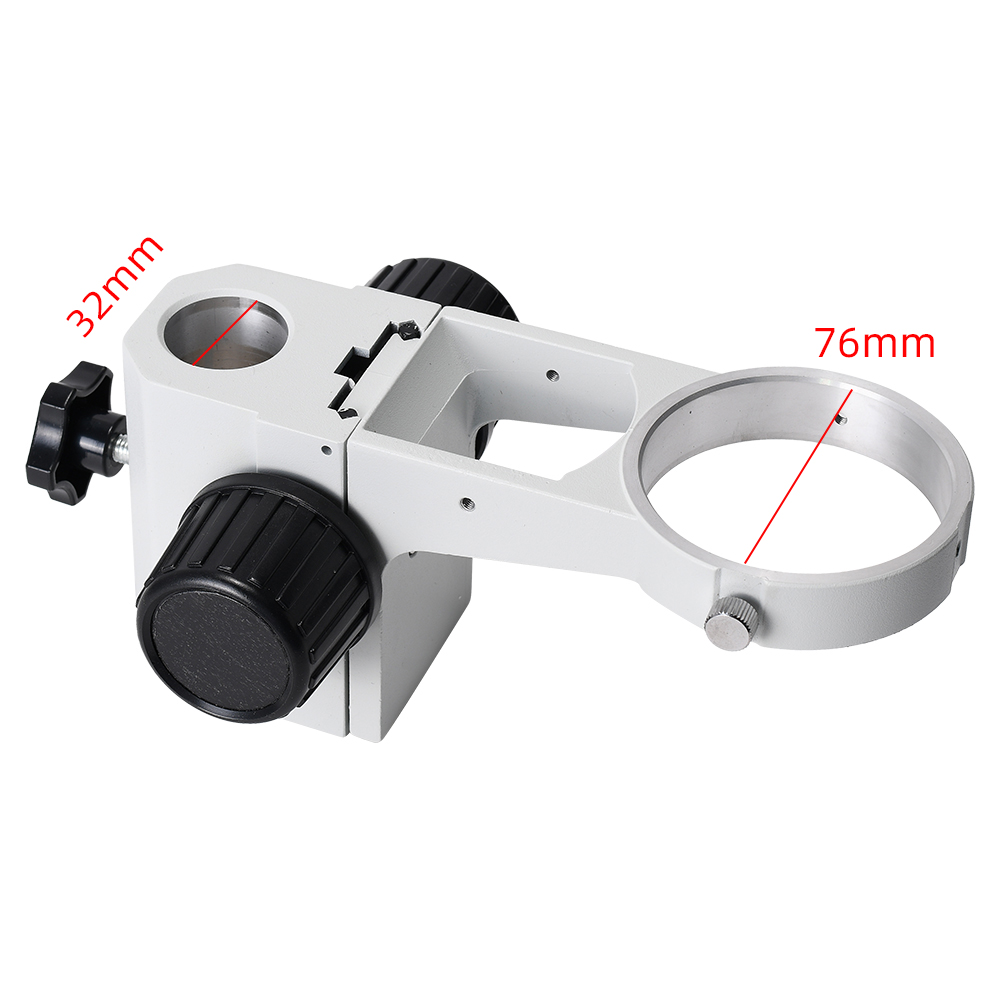

76mm Microscope Stand Features:
Expand the scope of operations,any orientation and angle observed the objectives. | |

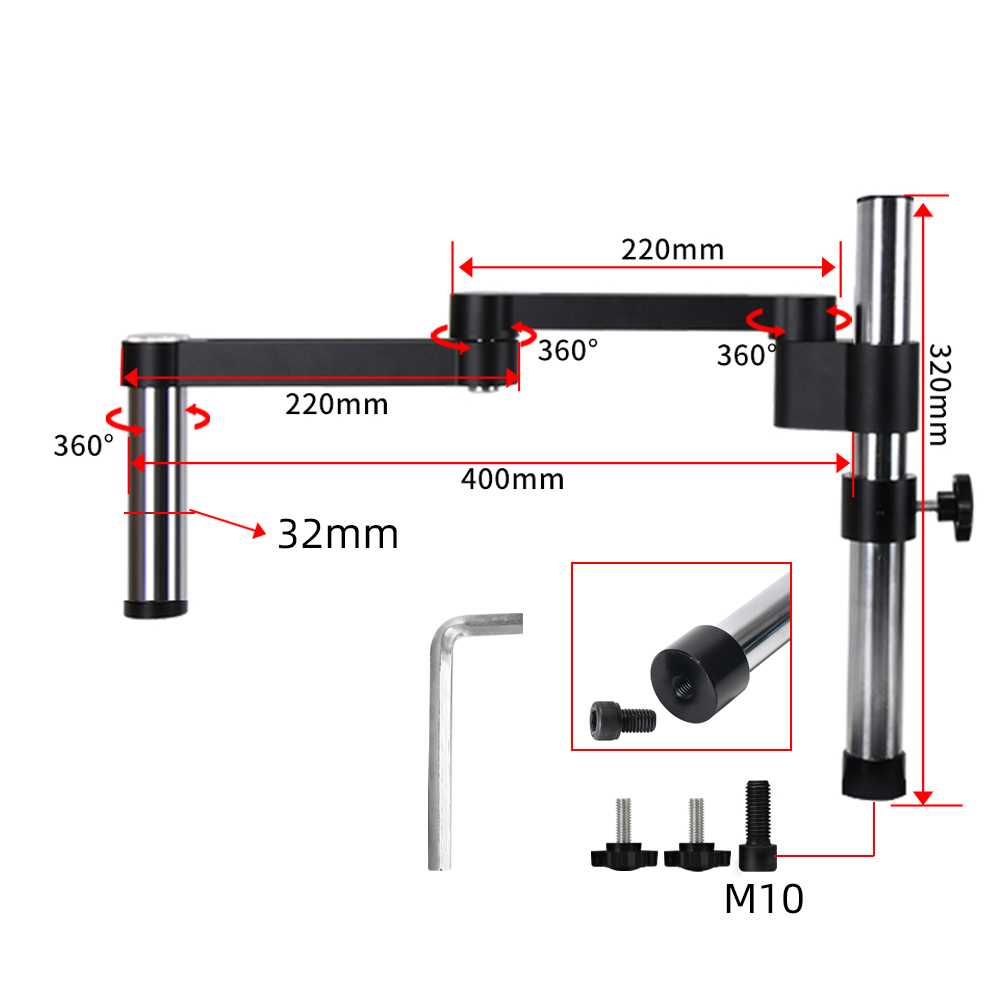

Vertical Height | 320mm |
Horizontal Distance | 400mm |
Fix | Screw |
Applicable | 32mm focusing |
Maximum working distance | 260mm |
Steel Gears on Focusing Holder. | |
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm | |
76mm apply stereo microscope | |

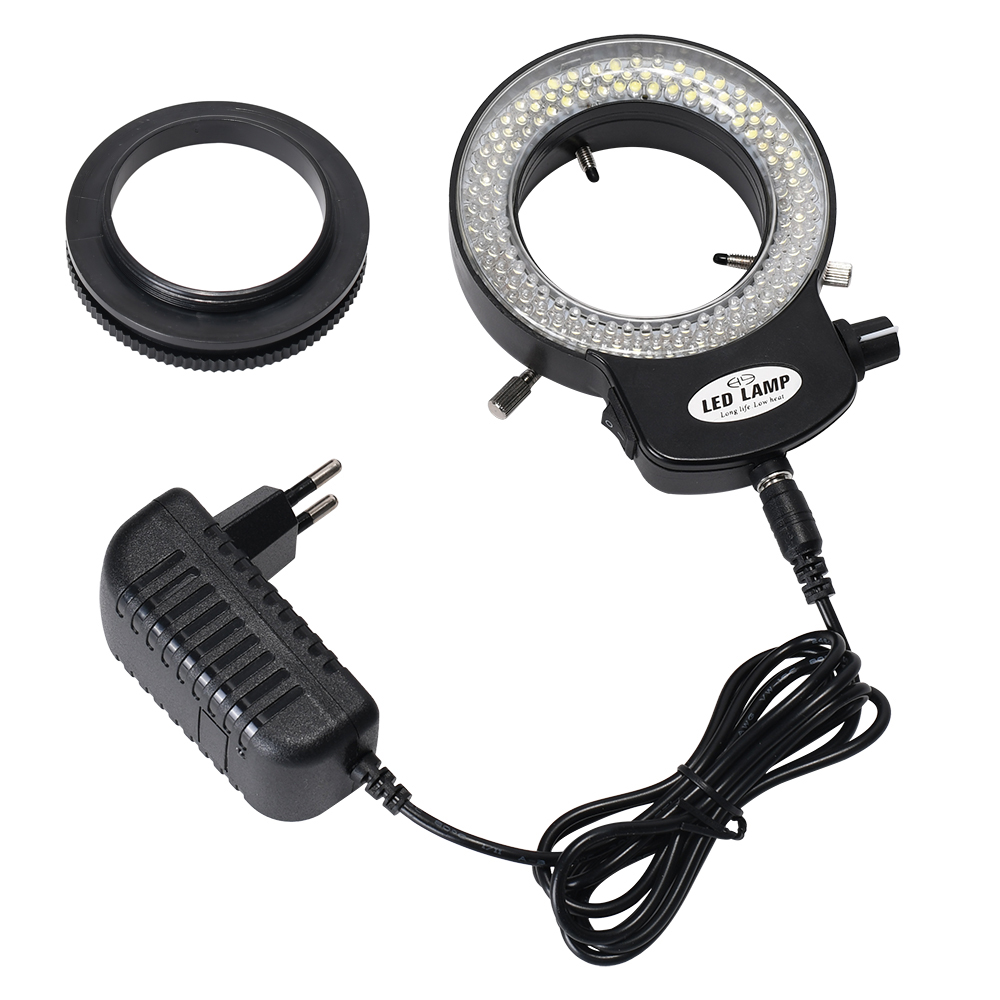

144 LED Microscope Ring Light:
144 LED Adjustable Compact Microscope Ring Light |
Provides intense and focused shadow-free illumination |
144 bright white LED bulbs |
Lighting direction changeable |
Variable intensity control |
Intense and focused shadow-free illumination |
100,000 hours of life |
Power input: 100-240V, 50-60HZ, auto switching |
Inside diameter of the ring light: 1.0" (27mm) |
Overall outside diameter: 1.77" (45mm) |
Working Distance: 27mm-45mm |

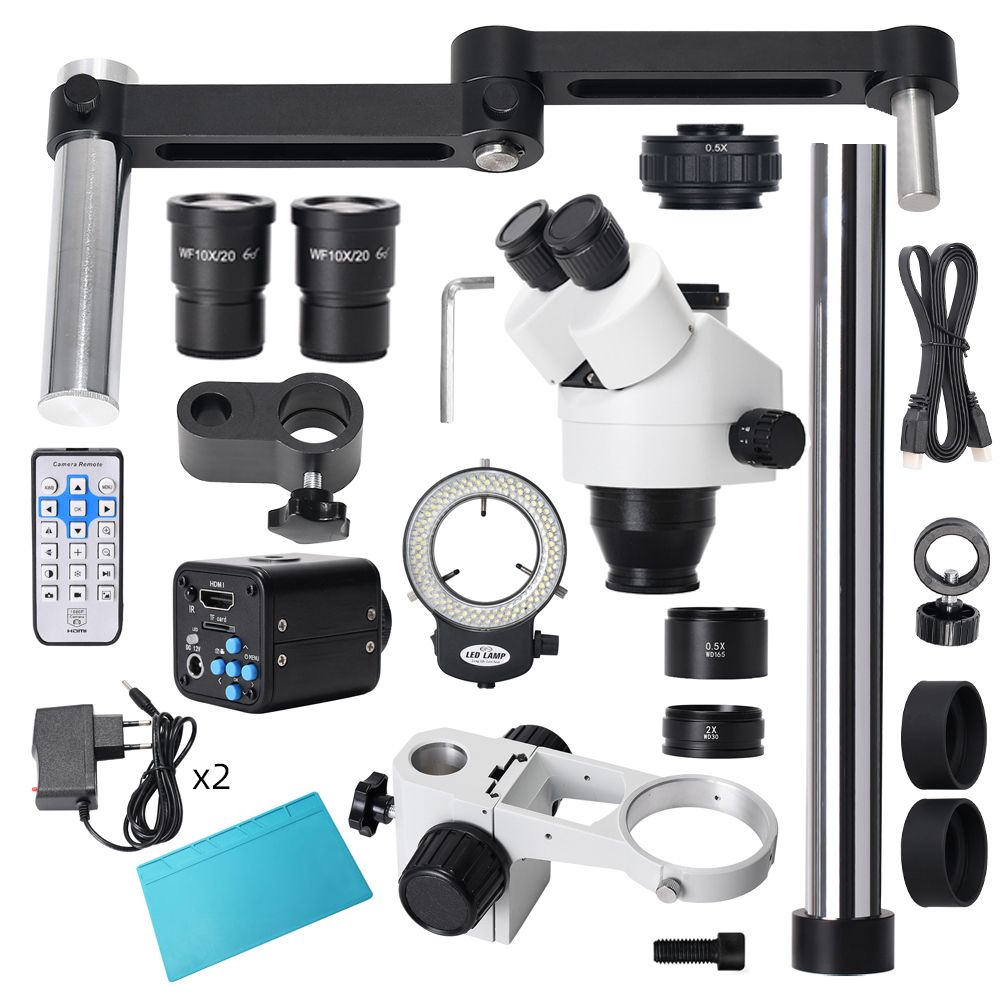

Package Including:
1 x Trinocular Stereo Zoom Head |
1 x Pair of Super Widefield 10X20MM Eyepieces |
1 x Pair of Eye-Guards |
1 x Dust Cover |

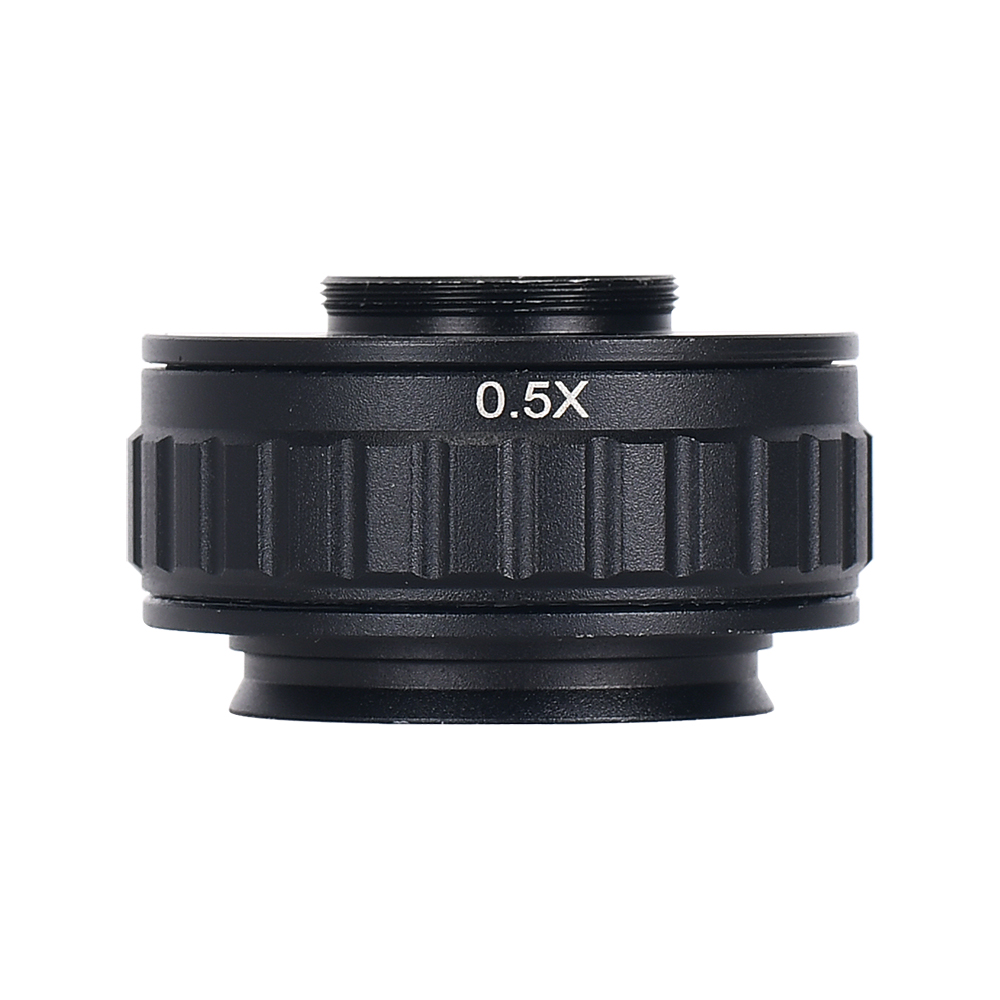

1 x 0.5X C-mount Adapter |
1 x 144-LED Ring Light with Adapter |
1 x High Temperature Insulation Pad |
1 x Articulating Arm Set |
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm) |
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm) |
1 x Microscope Camera |
2 x 12V Power Adapter |
1 x HDMI Cable |
1 x IR Remote Control |
