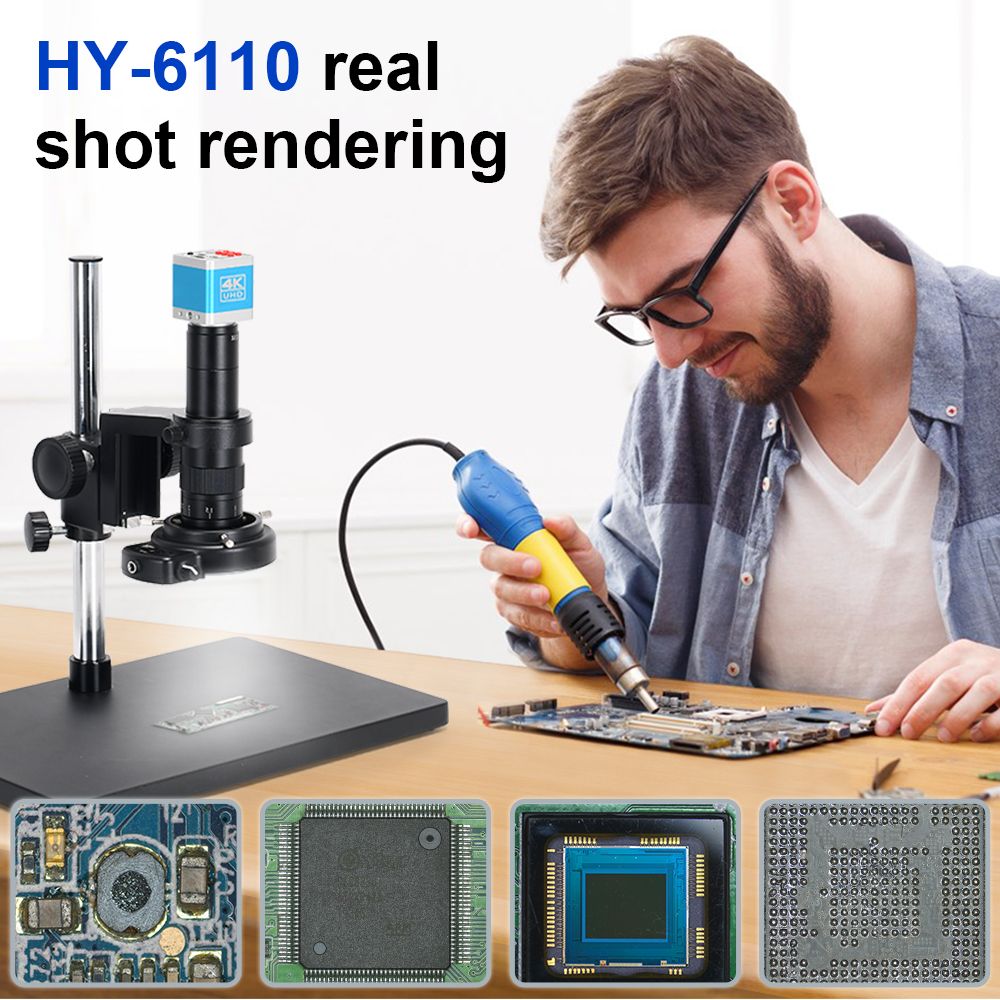

Model | HY-6110 |
Sensor | SONY CMOS 1/1.8 IMX334 Sensor |
Video Output Interface | Camera with HDMI USB2.0 two output |
HDMI OutPut Resolution | 4K@30FPS / 1080p@30FPS |
USB-PC OutPut Resolution | 3840x2160 @30FPS; 2592x1944 @40FPS;2592x1944 @40FPS;2084X1536 @60FPS; 1920x1080P @60FPS |
Pixel size | 2.0μm × 2.0μm |
Housing | metal |
HDR | Support HDR,Multiple exposure HDR, Digital overlap HDR |
Definition | FULL HD |
Housing | metal |
Lens | C / CS |
Video format | MOV |
Digital Zoom | Support |
Brightness control | Auto / manual |
Color | R / G / B adjustable |
Film and recor d | Support |
Cross cursor | Support multi-color, size adjustable |
PC Support | Windows / Miac PC Software with Measuring Function |
Image Measurement | Support Measurement |
Language | EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP |
Transverse and vertical line | Support multi-color, 5 pcs of transverse lines / vertical lines, moveableDifferent color, 5 horizontal line, 5 vertical line, any positions |
TF card interface | Max 256G |

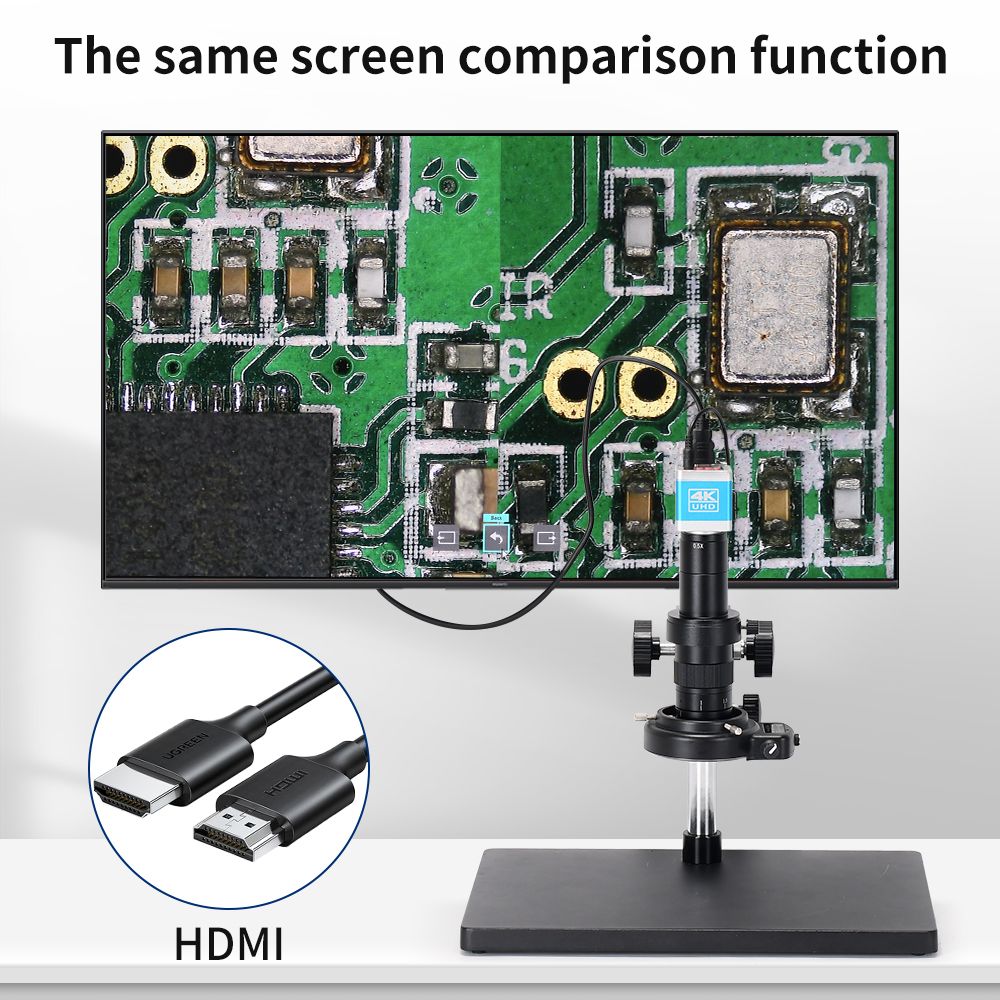

HDMI interface | Standard HDMI output (Type A) |
USB interface | Standard usb2.0 interface (Type B) |
Input Voltage | DC 12V |

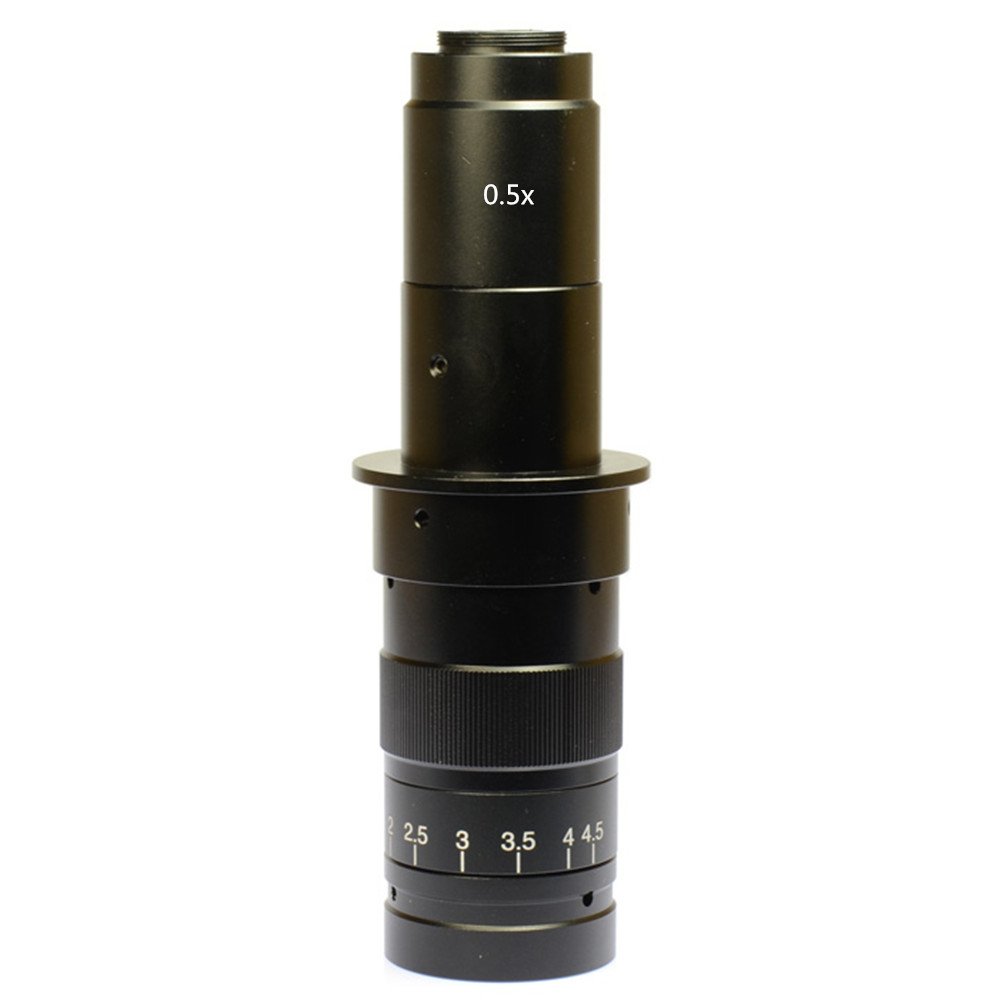

Model number | HY-180XA |
Mount | C-Mount zoom lens |
Eyepiece | 0.5X |
Zoom range | 0.7-4.5x continual zoom |
Zoom ratios | 6.5:1 |
Working distance | 100-150mm |

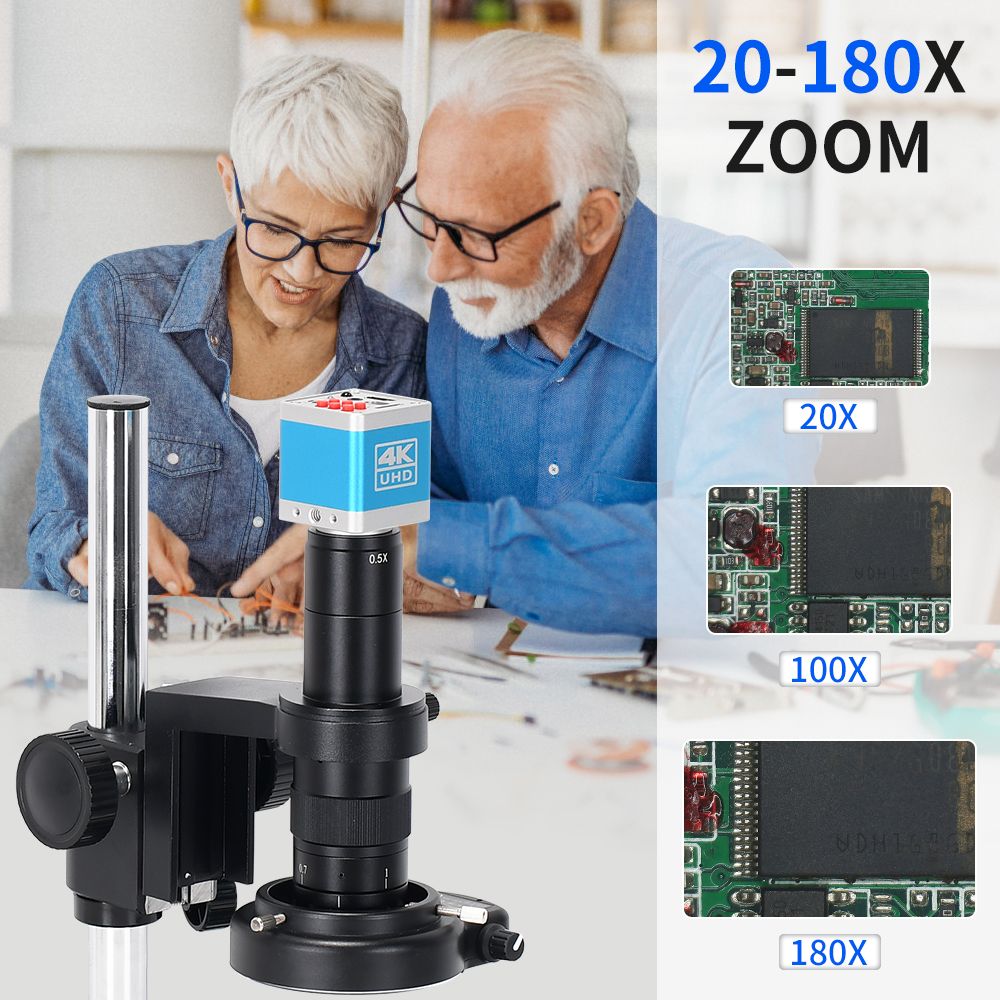

Magnification | 20X~180X(21.5 inches monitor) |
size | 170mm(long)*50mm(diameter) |
weight | 500g |
144LED
90mm Microscope Led Ring Light Illuminator Lamp Light For Video Camera |
Stereo Microscope Illumination LED Ring Light Source |
Specification |
Item Type: LED Ring Light |
Diameter of Opening for Stand Post: 25mm |
Inner Diameter: 90mm |
Power: 5W (90mm) |
EU, US or UK adaptor optional,we will send the right plug according to order address. |

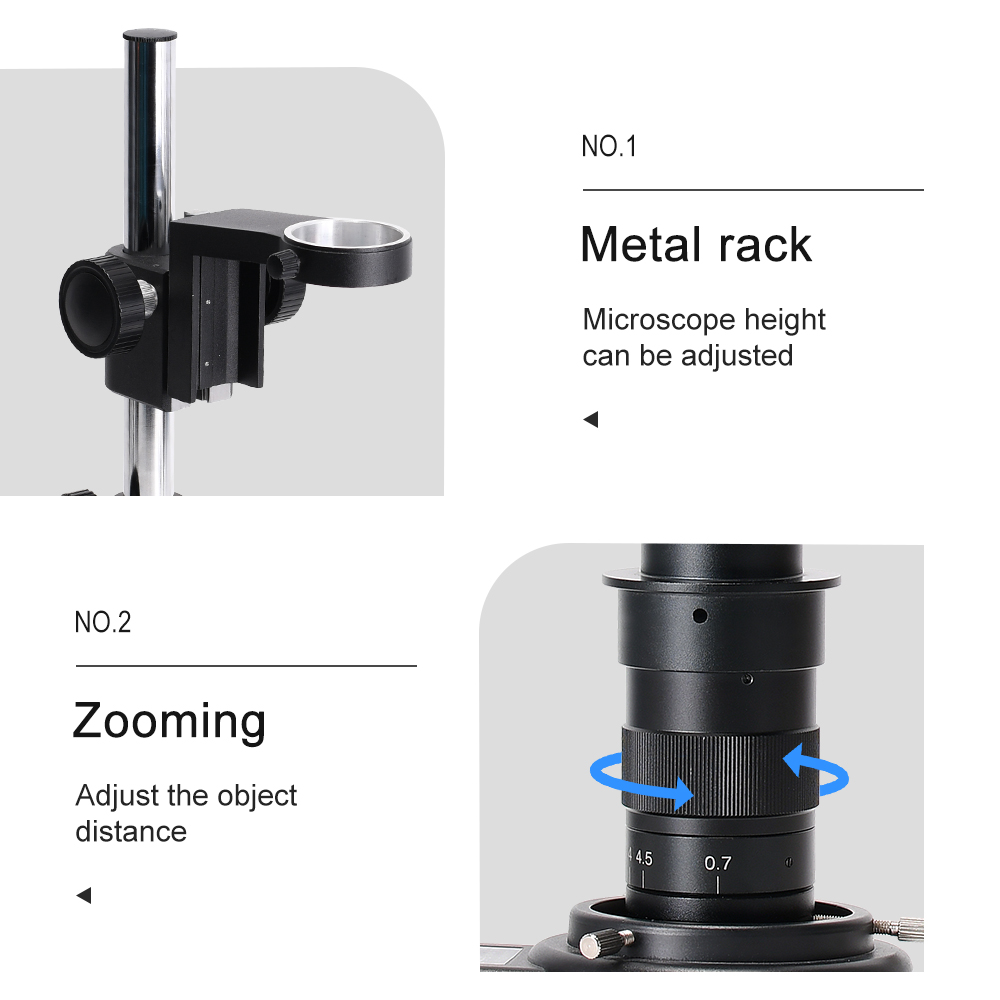

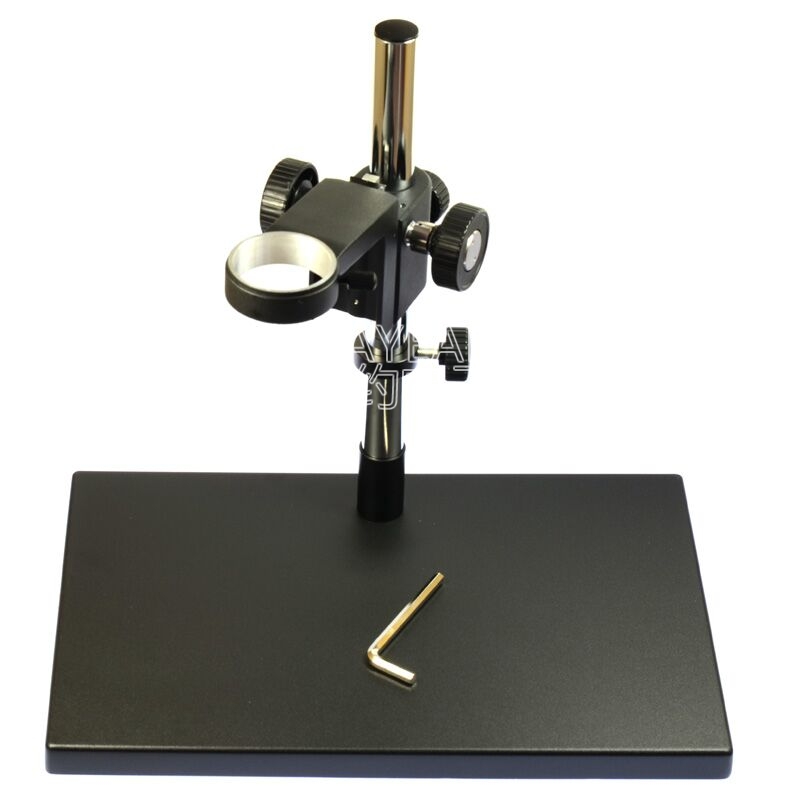

10A large base stand:
Model | HY-XDS-10A |
Total height | 340mm(can be extended to 650mm) |
Rod dia. | 25mm |
Focus rack dia. | 50mm |
Base size | 380mm×250mm |
Product material | Aluminum alloy |
