Feature:
An excellent stereo inspection microscope with i'ntensity-adjustable 144-LED ring light
3.5x-90x super wide zoom magnification power
Bright cool light 144-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images

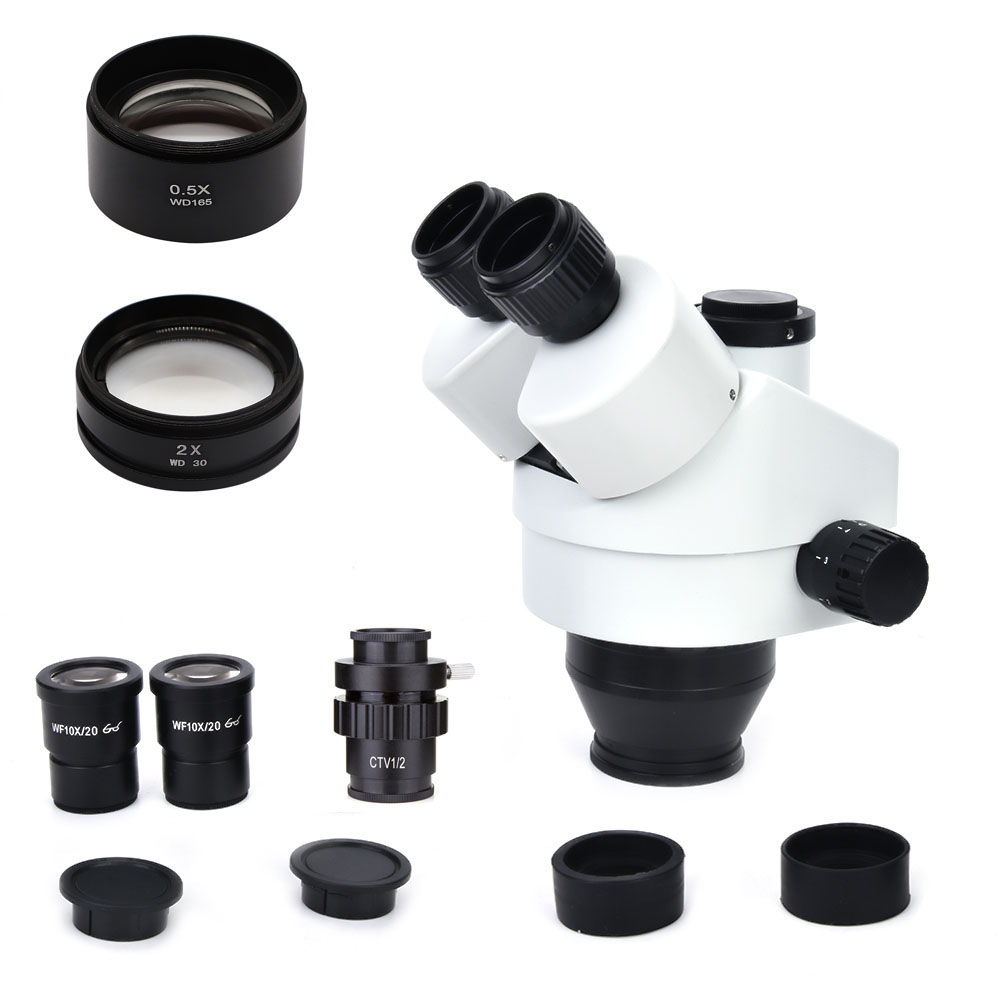

Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Specification:

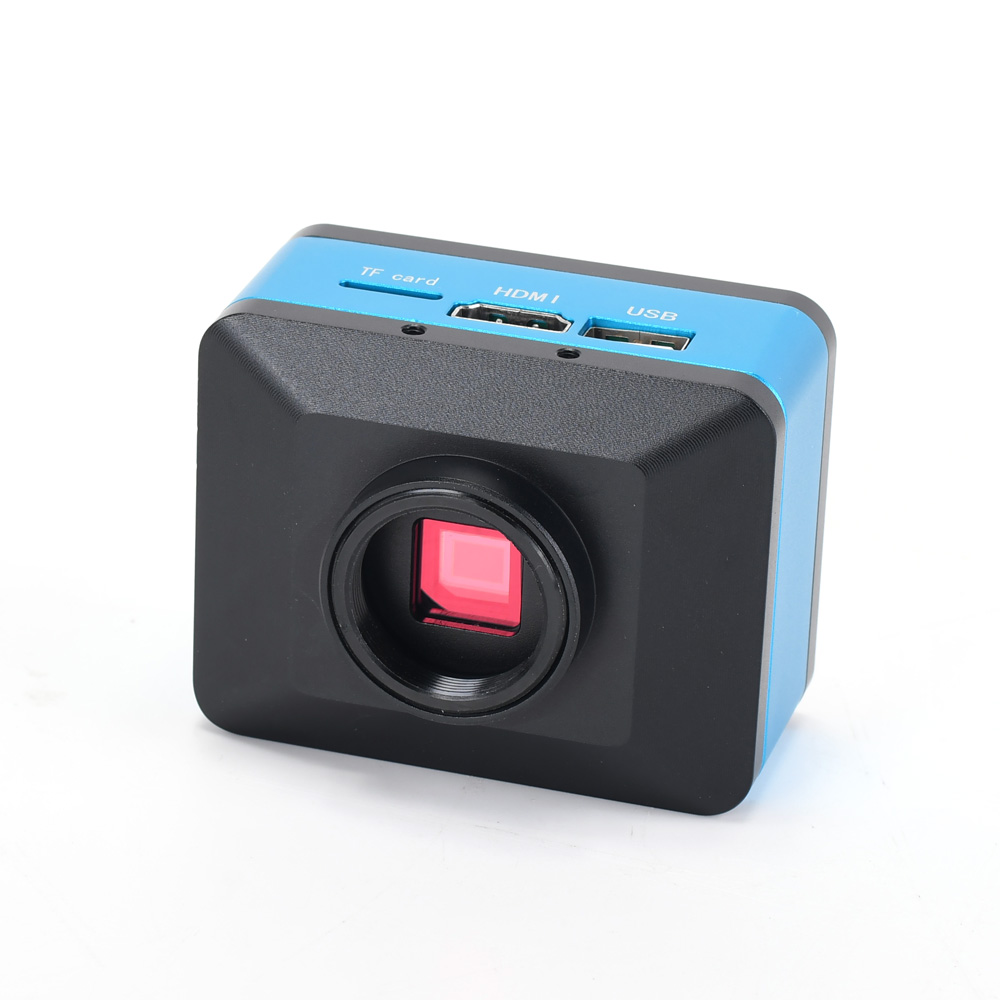

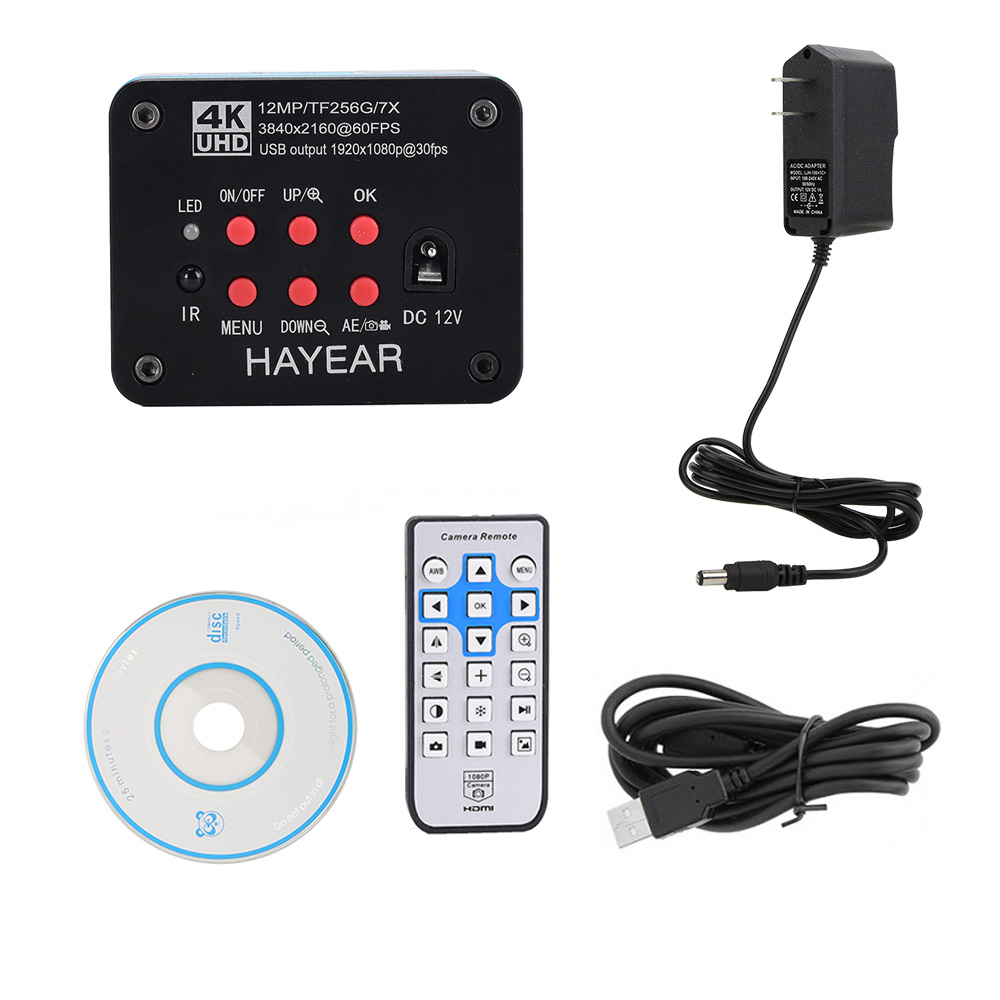

Image sensor | 4K SONY IMX sensor 1/2.33 inch |
Effective Pixels | SONY 12MP CMOS 1/2.33 IMX 4K SENSOR |
Resolution | 4K/2K/1080P 1080P(USB) |
Sensor Size | 1/2.33inch |
Pixel Size | 1.55 × 1.55μm |
Image Resolution: | 4032 × 3024 (12MP) (16:9) |
Frame rate | 60@FPS (4K) |
Image Format | JPEG |
WaveLength[nm] | 400nm~700nm |
Frame Fate | 3840×2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPS |
Lens Fype | C / CS |
Timing Photo/Record | Support Timing Photo/Record |
Storage | TF Card, Max 256G |
PC Support | Windows / Mac / Linux System PC Software with Measuring Function |
Image Measurement: | Support HAYEAR Measurement |
Language | EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP |
Output Interface | HDMI/USB Standard usb2.0 interface (Type B) |
Image Scaling | 7-Fold zoom |
Transverse and vertical line |
|
Support multi-color, 5 pcs of transverse lines/vertical lines, movable |
|
Different color,5 horizontal line , 5 vertical line,any positions |
|
Encode | H.264 /H.265 (High Profile) |
Video format | MP4 |

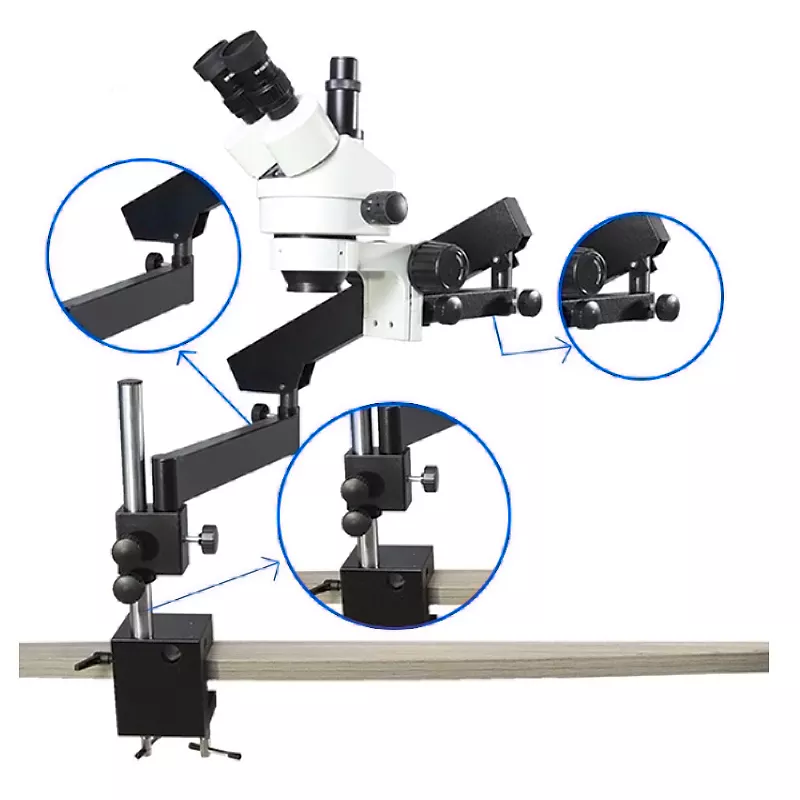

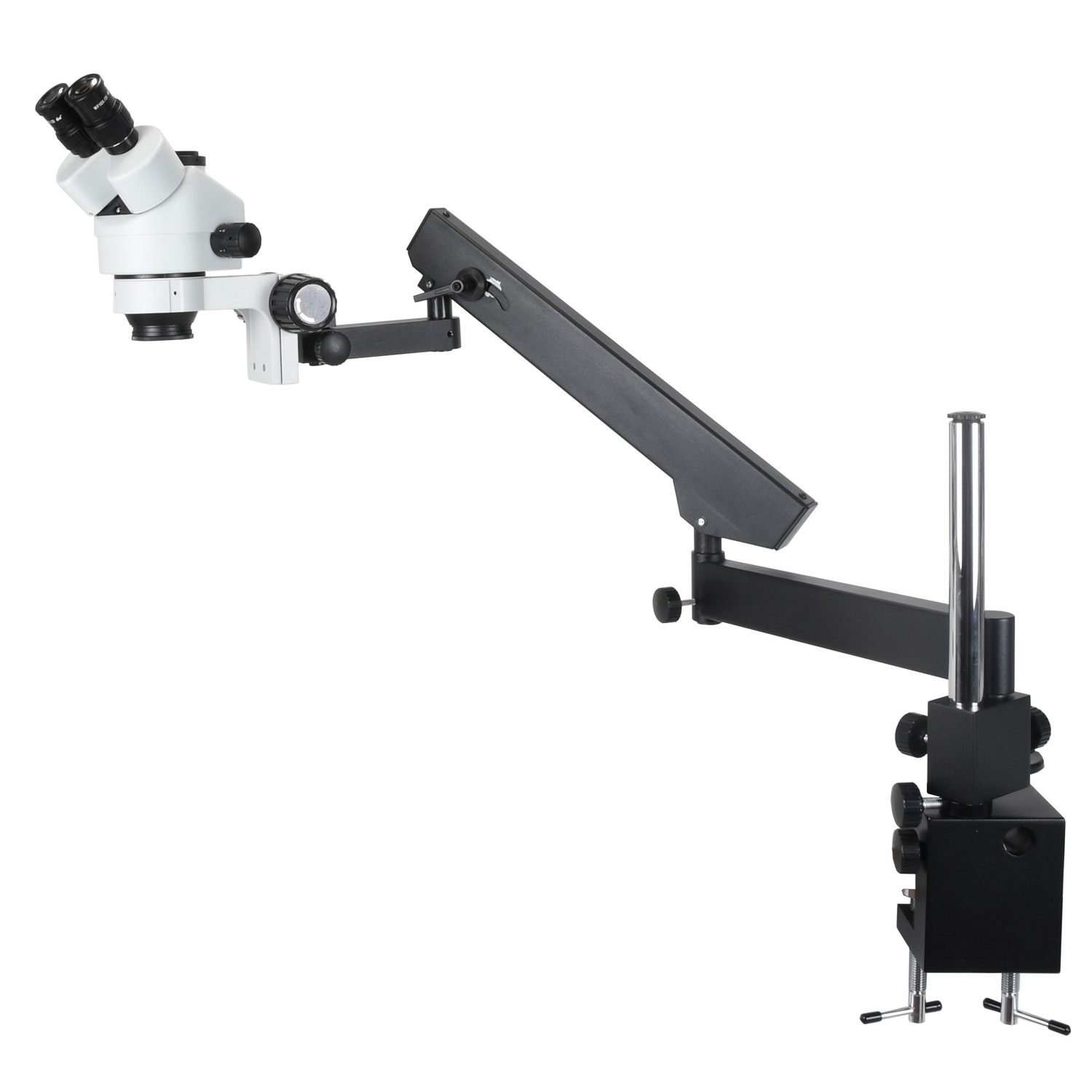

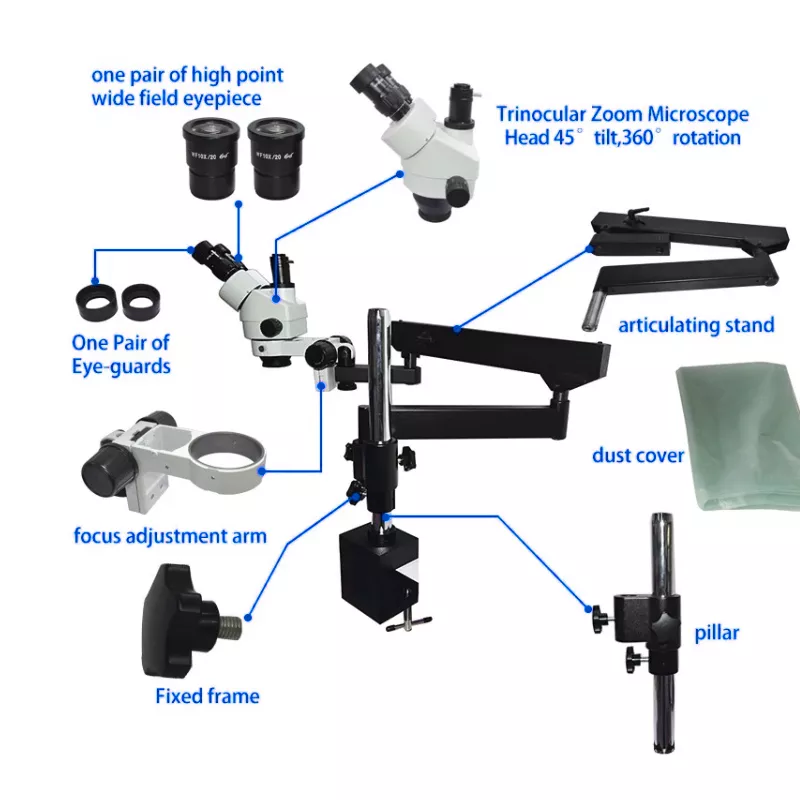

Expand the scope of operations,any orientation and angle observed the objectives.
Vertical Height : 400mm |
Horizontal Distance:770mm |
Base size: 98x80x116mm |
Max Clamp:50mm |
Steel Gears on Focusing Holder. |
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm,Connection diameter of 16mm. |

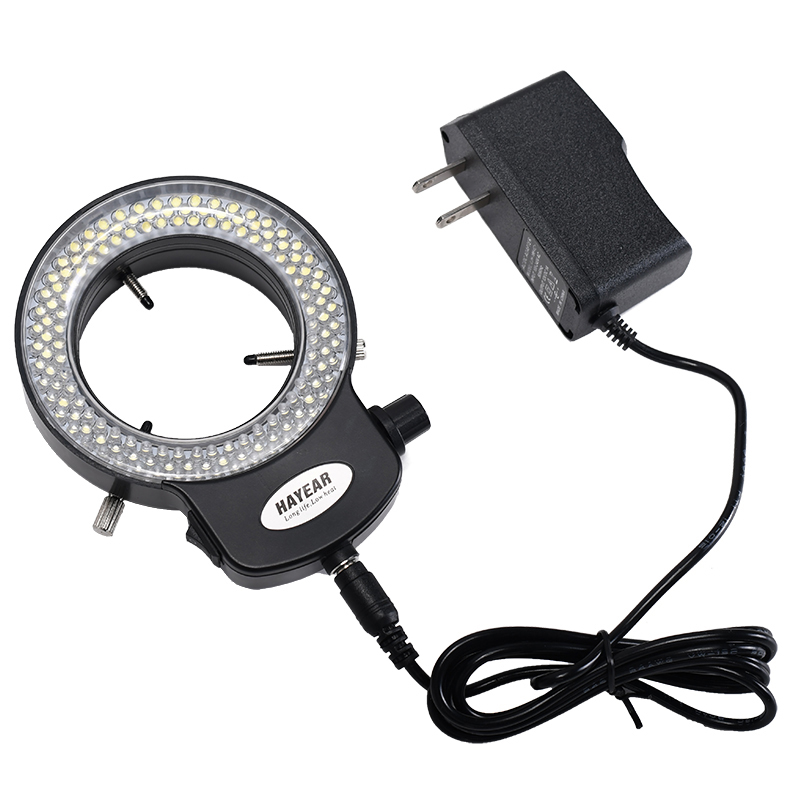

144 bright white LED bulbs |
100,000 hours of life |
Intense and focused shadow-free illumination |
The brightness of 0-100%Adjustable,high brightness |
Variable i'ntensity control |
Power input: 100-240V, 50-60HZ |
Suit for the dia of the lens: 30mm-160mm
|
