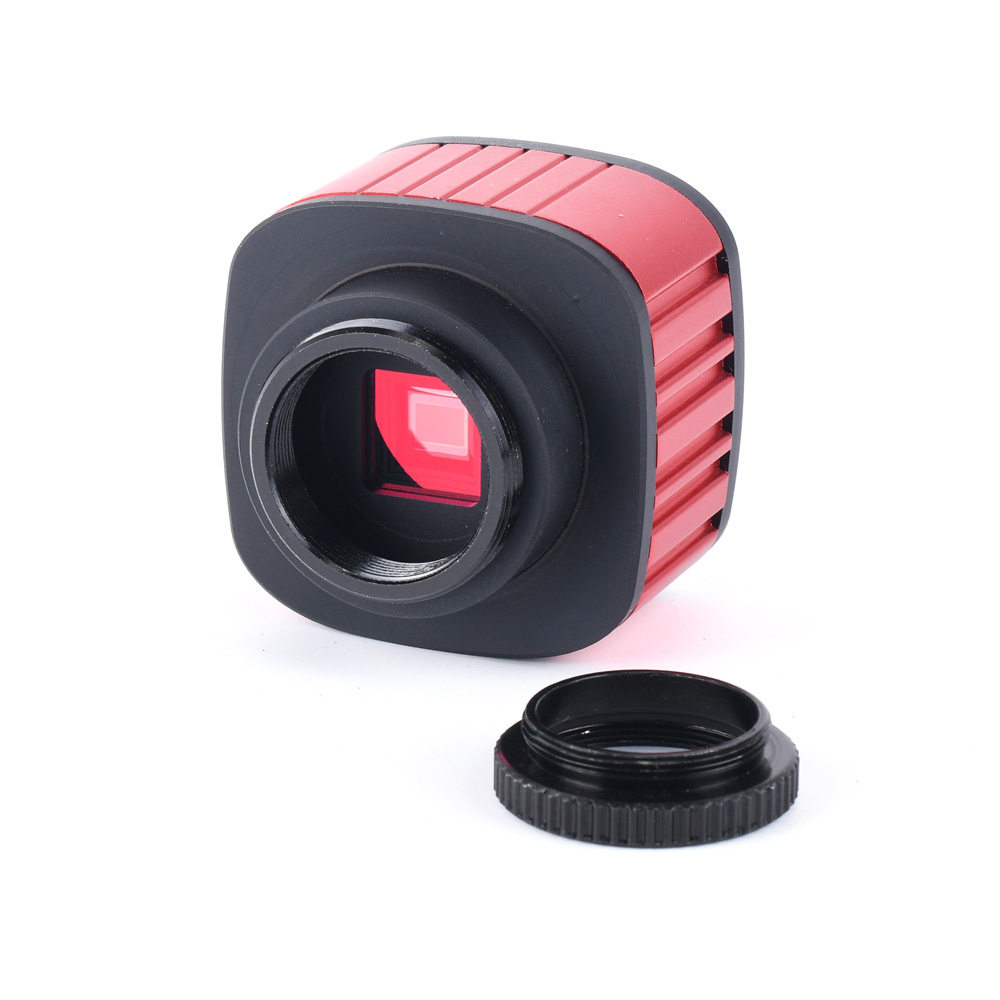

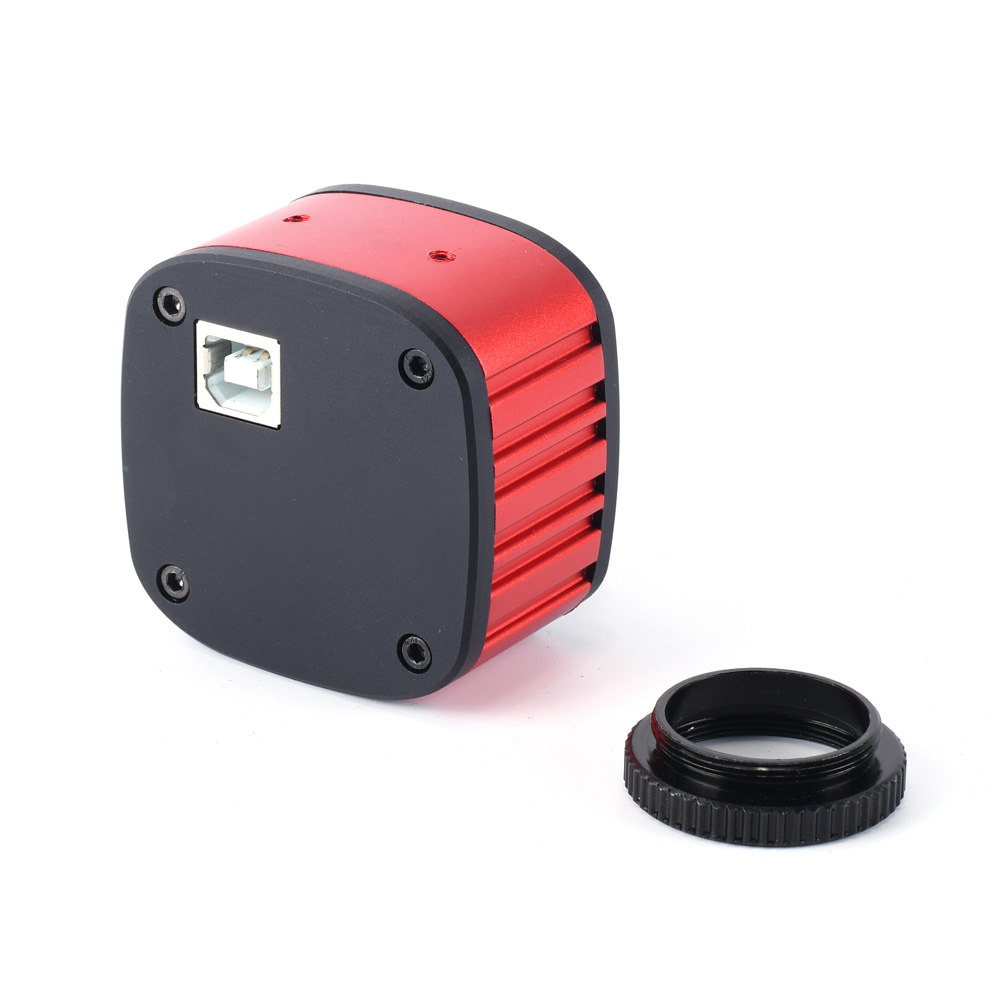

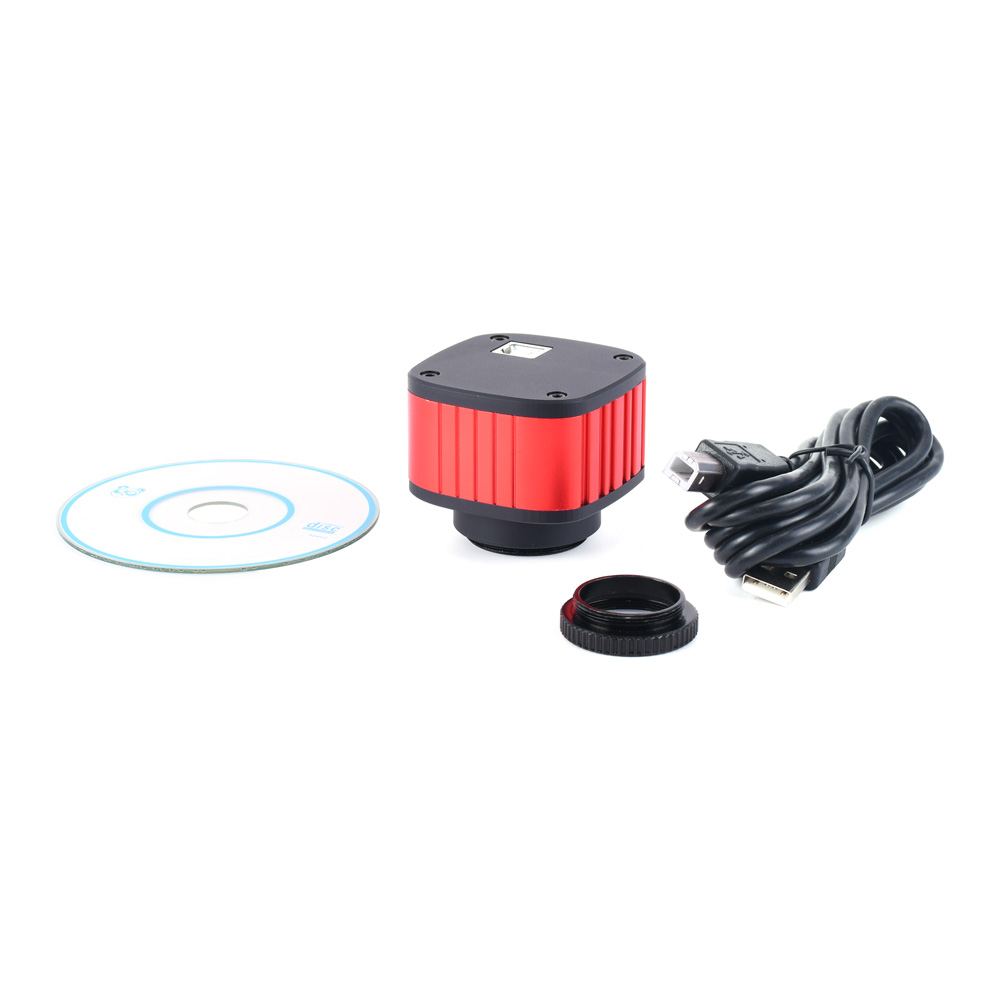

12MP IMX377 USB Video Microscope Camera High Speed Free Driver

797 Reviews

Model : HY-1200B


SKU: 1904293527



US $219.00

QTY:
- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time

Model

HY-1200B

Name

USB2.0 Color 12MP Driver-free UVC Digital Camera

Image Sensor

SONY 1/2.3" Color IMX377 CMOS Image Sensor

Pixel size

1.55μmH×1.55μm(V)

Spectral response

400nm700nm

Scanning method

Progressive scanning, real 12MP image sensor no compression, no interpolation

Resolution

4032x3024;3840x2160;2592x1944;2560x1440;1920x1080;1280x720;640x480

Image format

MJPEG (Compression format)

 YUV2 (Compression format)

Video recording

4032x3024 @ 15fps;   3888x2952 @ 15fps;

3648x2736 @ 15fps;   3840x2160 @ 25fps;

2592x1944 @ 25fps;   2560x1440 @ 25fps;   1920x1080 @ 25fps;   1280x960 @ 25fps   1280x720 @ 25fps;    640x480 @ 25fps

4032x3024 @ 1fps;   3840x2160 @ 1fps;

1920x1080 @ 5fps;   1280x720 @ 10fps;

640x480 @ 15fps     640x360 @ 25fps

Dynamic Range

74 dB (Linear)-85 dB (HDR)

Sensitive

2400 mV/Lux-sec

White balance

Auto/manual

Data output

USB2.0480Mb/s

SNR

39dB

Working temperature

-30℃70℃

Storage temperature

-30℃60℃

Preservable parameters

Brightness, Contrast, Color saturation,Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure

Support UVC

USB Video ClassUVC

White balance

Auto/Manual

One-click

white balance

Support

Exposure control

Auto/Manual

supports output formats

12-/10-bit RAW RGB


supports 2x2 binning


ISP clock up to 240MHz

Support systems

Win XP/Win7/Win10/win11

Linux / Android (Devices that comply with the UVC protocol)

MAC OS X10.4.8 or later (Devices that comply with the UVC protocol)

Support OTG

USB2.0 OTG

Range of uses:

Industrial vision, visual inspection, microscope, astronomical telescope, intelligent terminal equipment, face recognition, advertising machine, dish recognition, smart vending camera, electronic weighing object recognition, USB Raspberry Pi camera, code scanning camera, etc...

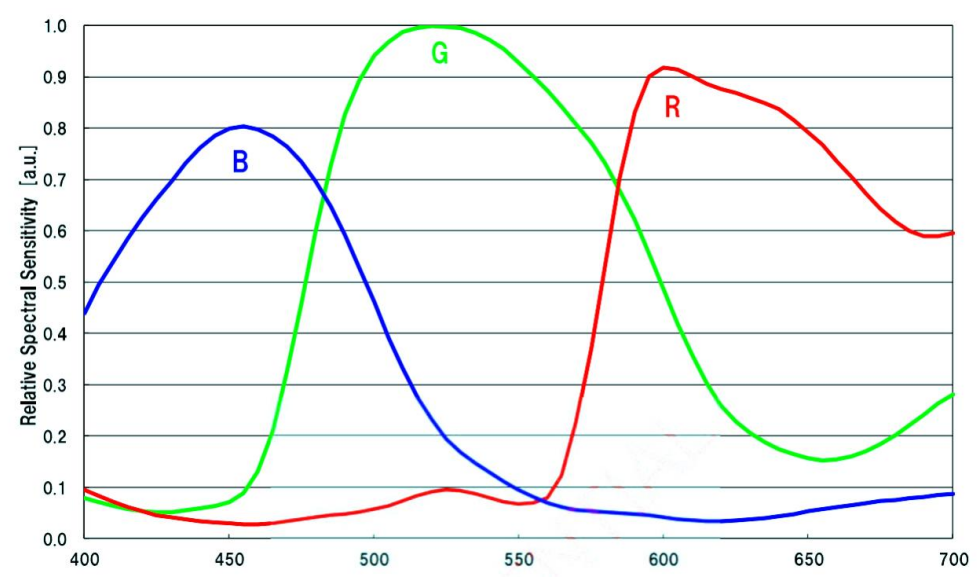

WaveLength [nm]

Spectral Sensitivity Characteristics

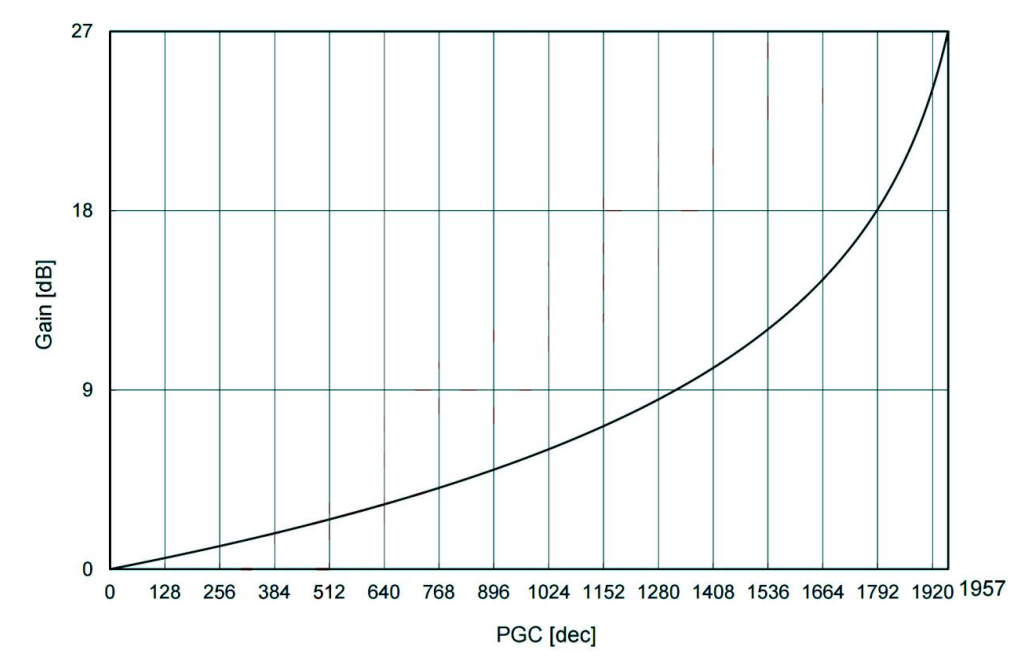

Relation Formula

Gain[dB] =-20log{(2048-PGC[10:0])/2048}



Relationship between Register Setting Value and Set Gain Vlue
